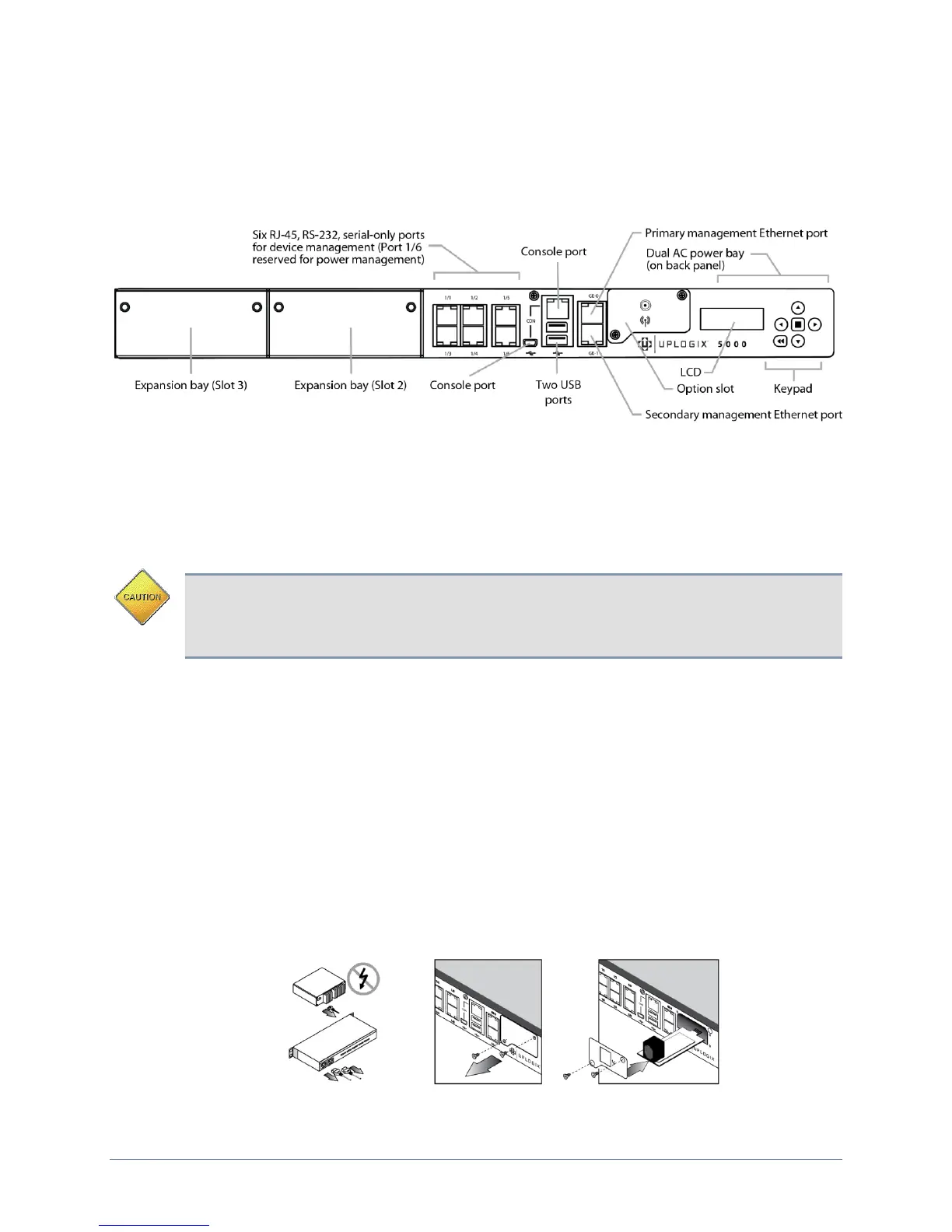

Installation Guide for Uplogix Local Managers 14
Installing optional equipment
The Uplogix 5000 supports field-installable modems, small form factor pluggable (SFP)
modules, and a temperature and humidity sensor. Optional equipment may ship separately
from the Local Manager.
Installing an Option Card in the Option Slot
The Local Manager supports five styles of equipment for installation in the option slot: V.92
modem, GPRS cellular modem, CDMA cellular modem, a DB-9 connection for an external
modem, and a SFP module to support a fiber connection.
Caution: To prevent equipment damage, do not connect the internal modem to digital PBX
systems, VoIP analog terminal adapters, or cellular modems. It is designed for use with
analog telephone lines only. Uplogix is not responsible for damage caused from attaching
the modem to a digital phone switch.
Prior to installation of any option slot card, ensure that the Local Manager is powered off.
V.92 modem
The V.92 modem may already be installed in the option slot. Follow these steps if the V.92
modem is not already installed:
1. Power off the Local Manager.
2. Remove the option slot cover, align the modem carrier card with the internal rails, and
slide the modem into place.
3. Replace the screws.
4. Connect a POTS telephone line to the RJ-11 jack on the modem and power on the
Local Manager.
