CDMA cellular modem

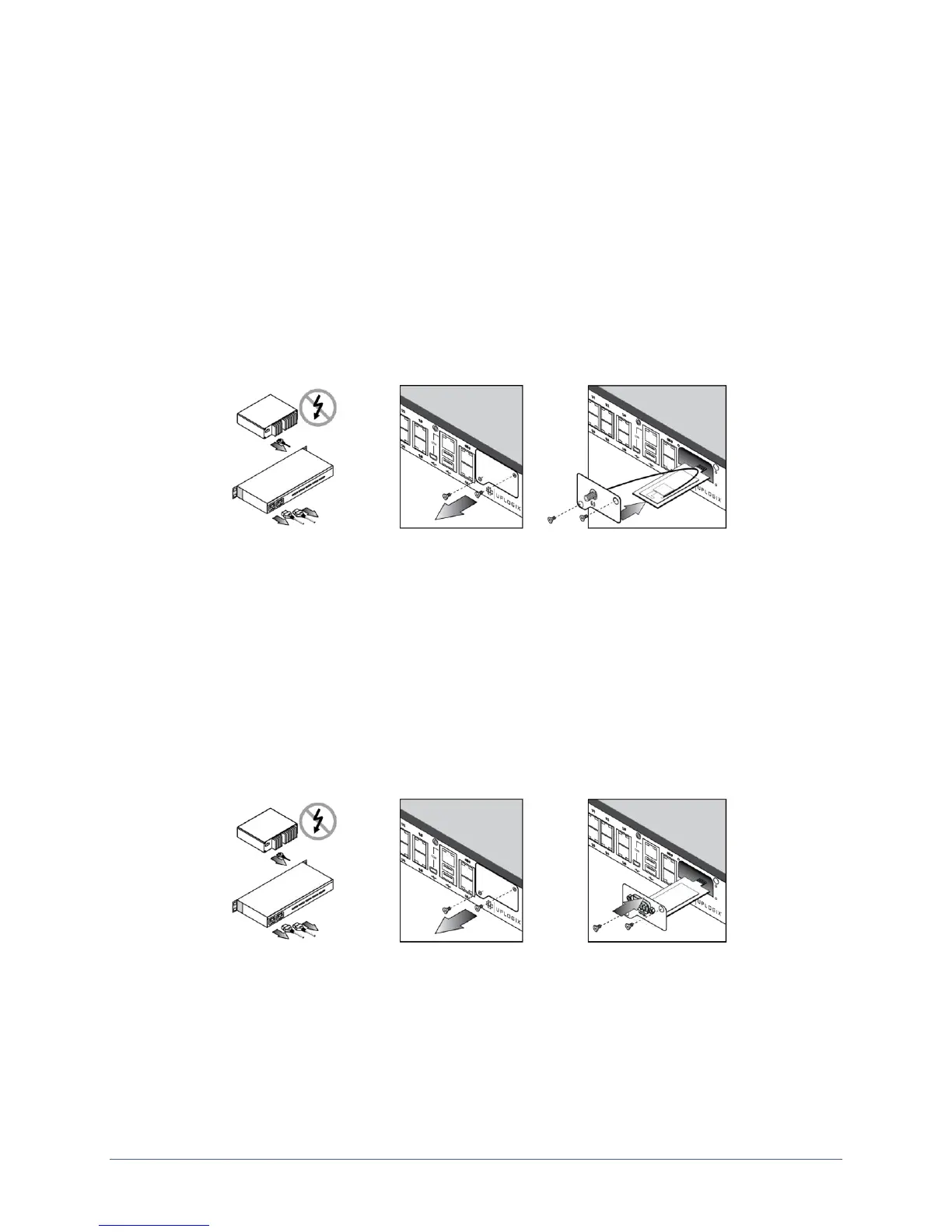

Follow these steps to install the CDMA cellular modem:
1. Power off the Local Manager.
2. Note the Electronic Serial Number (ESN) on the modem, as this will be needed in
order to activate the modem on your carrier’s network.
3. Remove the option slot cover, align the modem carrier card with the internal rails, and
slide the modem into place.
4. Feed wire into the option slot compartment, align modem cover plate with the option
slot screw holes, and replace the screws.
5. Install antenna.
6. Power on the Local Manager.
DB-9 option card for external modem
The DB-9 option card may already be installed in the option slot. Follow these steps if the DB-
9 option card is not already installed:
1. Power off the Local Manager.
2. Remove the option slot cover, align the modem carrier card with the internal rails, and
slide the modem into place.
3. Replace the screws.
4. Connect an external modem to the Local Manager using a serial DB-9 cable and power
on the Local Manager.
