Controls and Indicators
Operation Manual Page 5
C
ONTROLS AND
I
NDICATORS
The operator shall know the location of each control and indicator and have a thorough knowledge of the
function and operation of each before attempting to operate the unit.

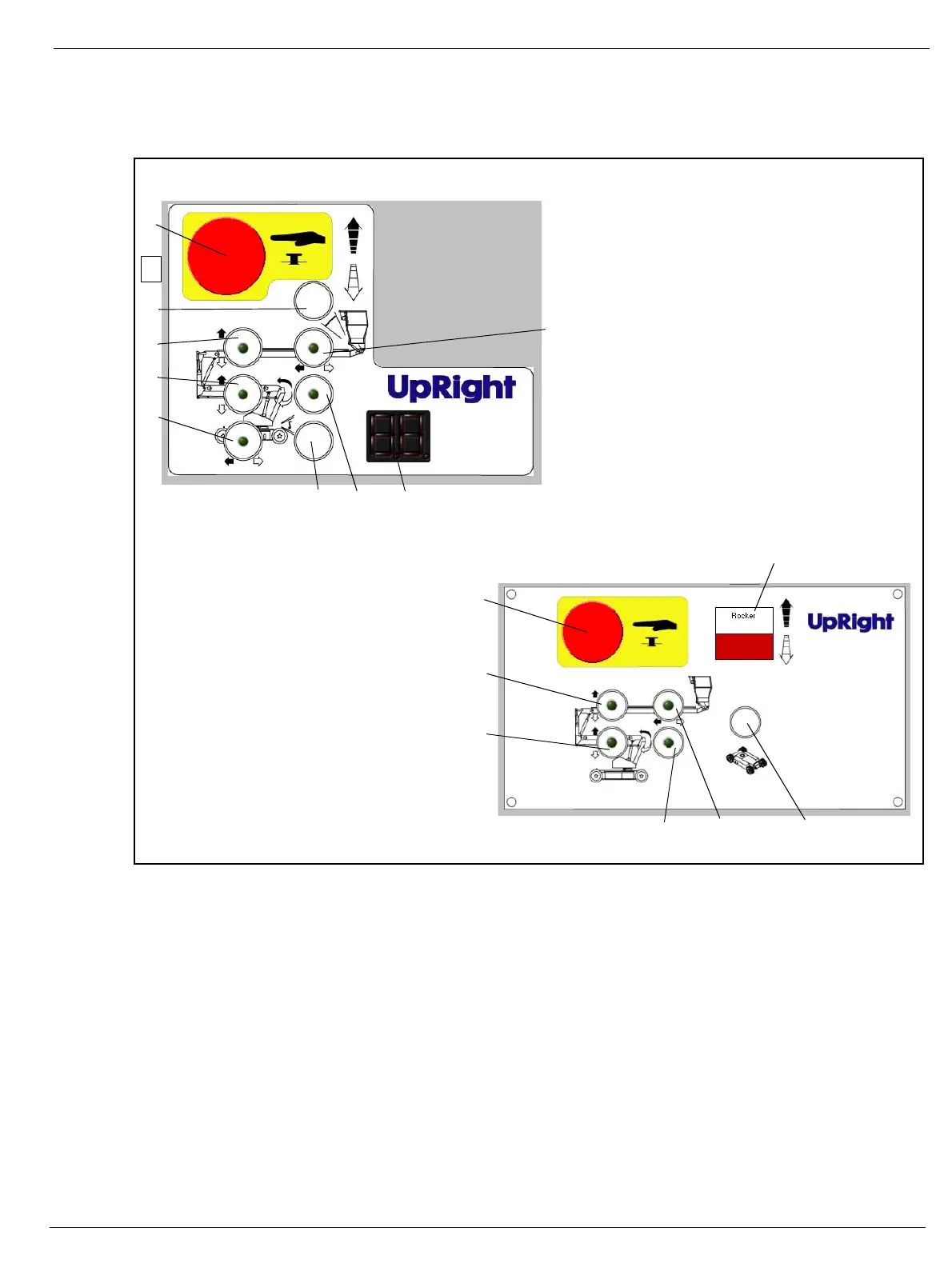

Figure 2: Controls and Indicators
P
RE
-O
PERATION
S
AFETY
I
NSPECTION
NOTE: Carefully read, understand and follow all safety rules, operating instructions, labels and National Safety
Instructions/Requirements. Perform the following steps each day before use.
1. Remove the Chassis Covers and inspect for damage, fluid leaks or missing parts.
2. Check the level of the hydraulic fluid with the platform fully lowered. Remove the Chassis Covers and
remove the reservoir cap, fluid should be visible on the dipstick. Add recommended hydraulic fluid if nec-
essary. See “Specifications” on page 14.
3. Check that the fluid level in the batteries is correct. See “Battery Maintenance” on page 10.
4. Verify that the batteries are charged.
5. Check that the A.C. extension cord has been disconnected from the chassis outlet.
6. Check that all guardrails are in place and all fasteners are properly tightened.
7. Inspect the machine thoroughly for cracked welds and structural damage, loose or missing hardware,
hydraulic leaks, damaged control cable and loose wire connections.
1
2
3
4
5
11
10
9
Lower Controls
45
6
7
6
7
8
1. Emergency Stop
2. Cage Level
3. Upper Boom
4. Lower Boom
5. Drive
6. Horn
7. Slew (Rotate)
8. Display
9. Telescope
10. Joystick
11. Key Switch (on side of box)
Upper Controls
1. Emergency Stop
2. Upper Boom
3. Lower Boom
4. Slew (Rotate)
5. Telescope
6. Enable
7. Analog Rocker
1
2
3
