Operation
Operation Manual Page 7
R
OTATING THE
P
LATFORM
1. Select the rotate function button (the button will illuminate to confirm selection).
2. While engaging the Interlock Switch, move the Control Handle forwards or backwards to achieve clock-
wise or counterclockwise rotation.
3. If the machine is not level the tilt alarm will sound and the machine will not rotate.
O
PERATING THE
T
ELESCOPE
1. Select telescope function button (the button will illuminate to confirm selection).
2. While engaging the Interlock Switch, move the Control Handle forwards or backwards to extend or
retract the telescopic boom.
3. If the machine is not level the tilt alarm will sound and the telescope boom will only retract.
L
EVELLING THE CAGE
1. Select platform level function button (the button will illuminate to confirm selection).
2. While engaging the Interlock Switch, move the Control Handle forwards or backwards to adjust the floor
angle of the cage (this can only be done when the machine is in the stowed position).
3. If the machine is not level the tilt alarm will sound and the machine will not operate.
S
TARTING THE
E
NGINE
1. The engine is started by turning the key on the control box to “Start”, the key will spring back to the “Run”
position during normal operation of the engine.
2. The engine can be used to charge the batteries or power the machine when the batteries are low.
E
MERGENCY
L
OWERING
WARNING
!
!
If the platform should fail to lower, NEVER climb down the elevating assembly.
Stand clear of the elevating assembly while operating the Emergency Lowering Valve Knob.

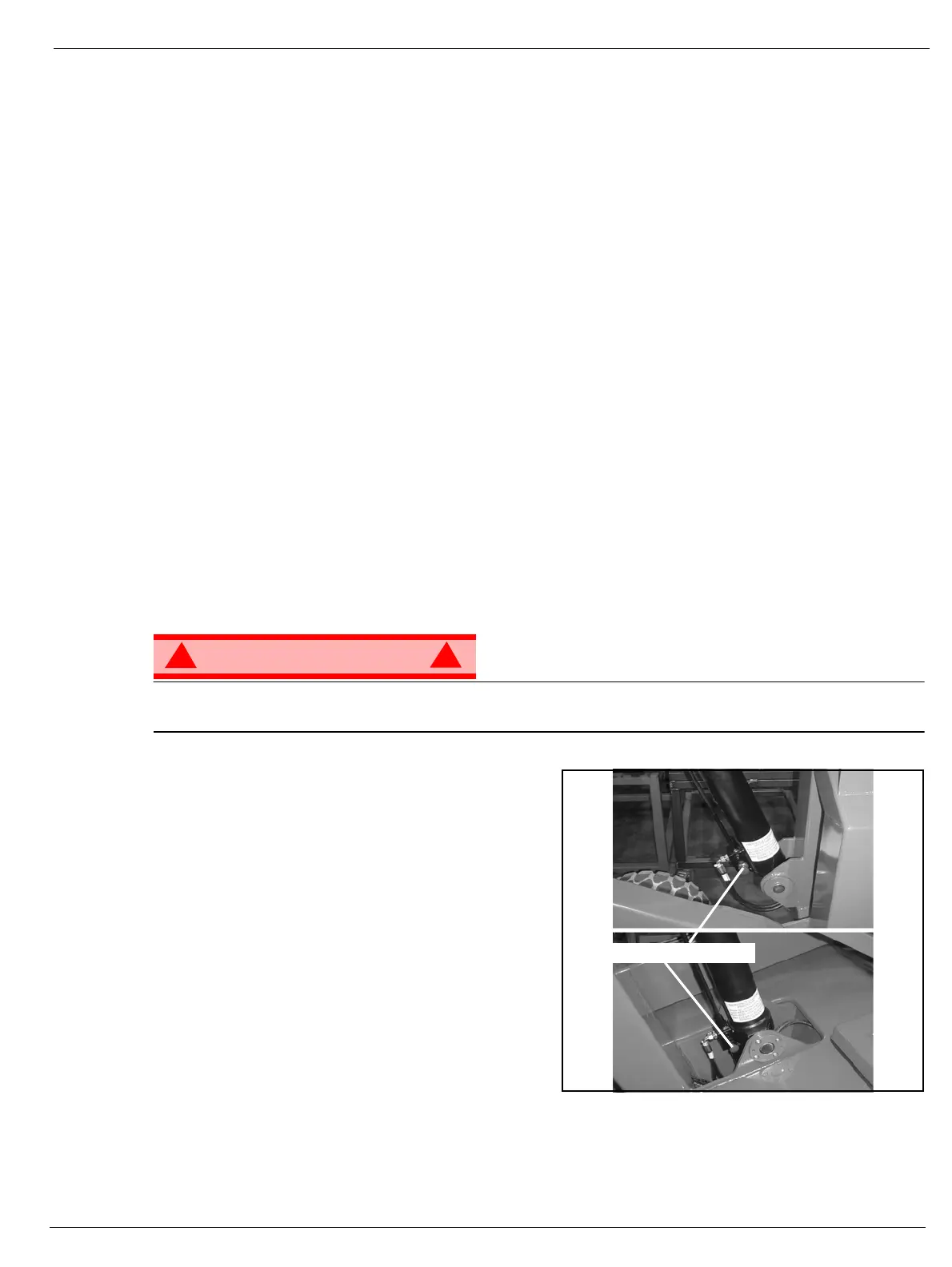

Figure 3: Emergency Lowering Valve
Ask a person on the ground to open the Emergency
Lowering Valve to lower the platform. The Emergency
Lowering Valve is located on the base of each lift cyl-
inder.
1. Open the Emergency Lowering Valve by pulling the
knob out.
2. To close, release the knob.
NOTE: The platform will not elevate if the Emergency
Lowering Valve is open.
A
FTER
U
SE
E
ACH
D
AY
1. Ensure that the platform is fully lowered.
2. Park the machine on a firm level surface, preferably under cover, secure against vandals, children and
unauthorized operation.
3. Turn the Chassis Key Switch to OFF and remove the key to prevent unauthorized operation.
Emergency Lowering Valves
