Upright MX15 - Figure 3-24: Lift Cylinder

Page 3-23
Maintenance 3.17 - Lift Cylinder
MX15/19

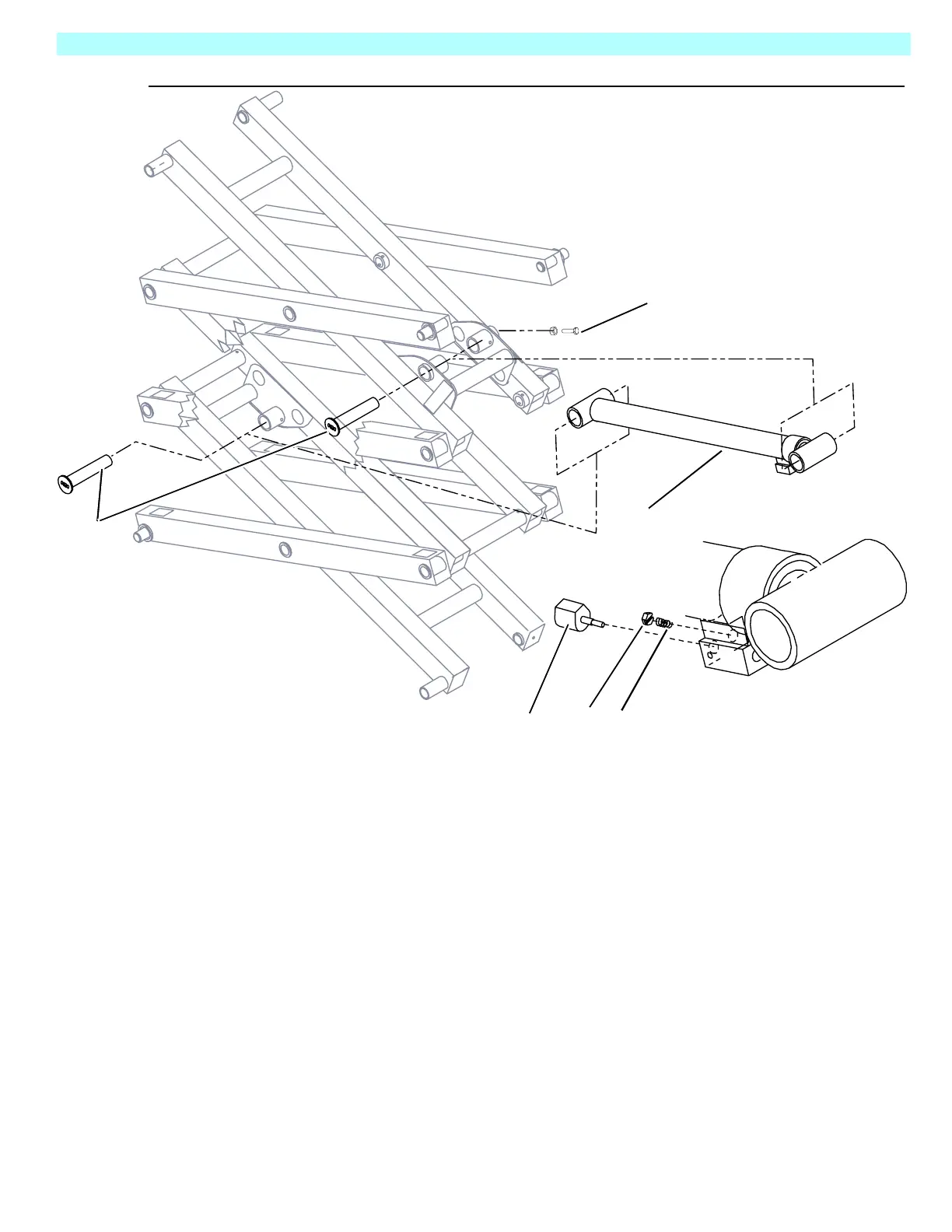

Figure 3-24:
Lift Cylinder
1. Lift Cylinder
2. Pivot Pit
3. Capscrew and Locknut
4. Solenoid
5. Down Orifice
6. Spring
2
3
4
5
6
1
060569-004
