Cylinders Section 2 - Service and Repair
Page 2-14 107099-002 TM12 Work Platform
2-7 C
YLINDERS
D
EPRESSION
C
YLINDER

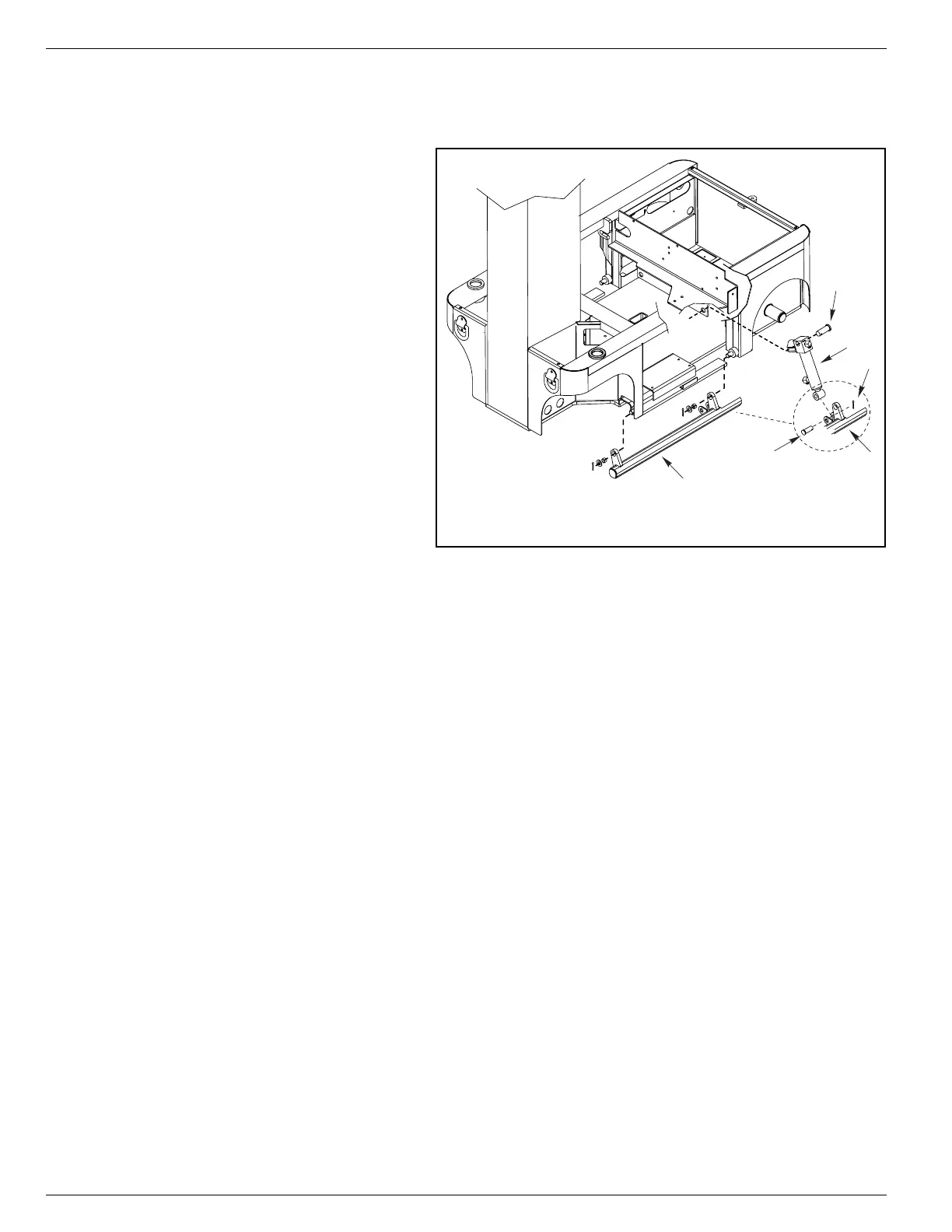

Figure 2-10:
Depression Cylinder Remove & Replace
R
EMOVAL
1. Mark and disconnect the hose
assemblies from the cylinder fittings
and immediately cap the openings
to prevent foreign material from
entering.
2. Place a support under the depres-
sion guard.
3. Remove the cotter pins from the
pivot pins.
4. Remove the pivot pins while sup-
porting the cylinder.
5. Remove the cylinder.
R
EPAIR
Refer to Cylinder Repair in
Section 1 - General Information.
I
NSTALLATION
Installation is reverse of removal.
1
2
3
4
4
2
1. Depression Cylinder
2. Pivot Pin
3. Cotter Pin
4. Depression Guard
