Controls Section 2 - Service and Repair
Page 2-26 107099-002 TM12 Work Platform
C
HASSIS
C
ONTROLS

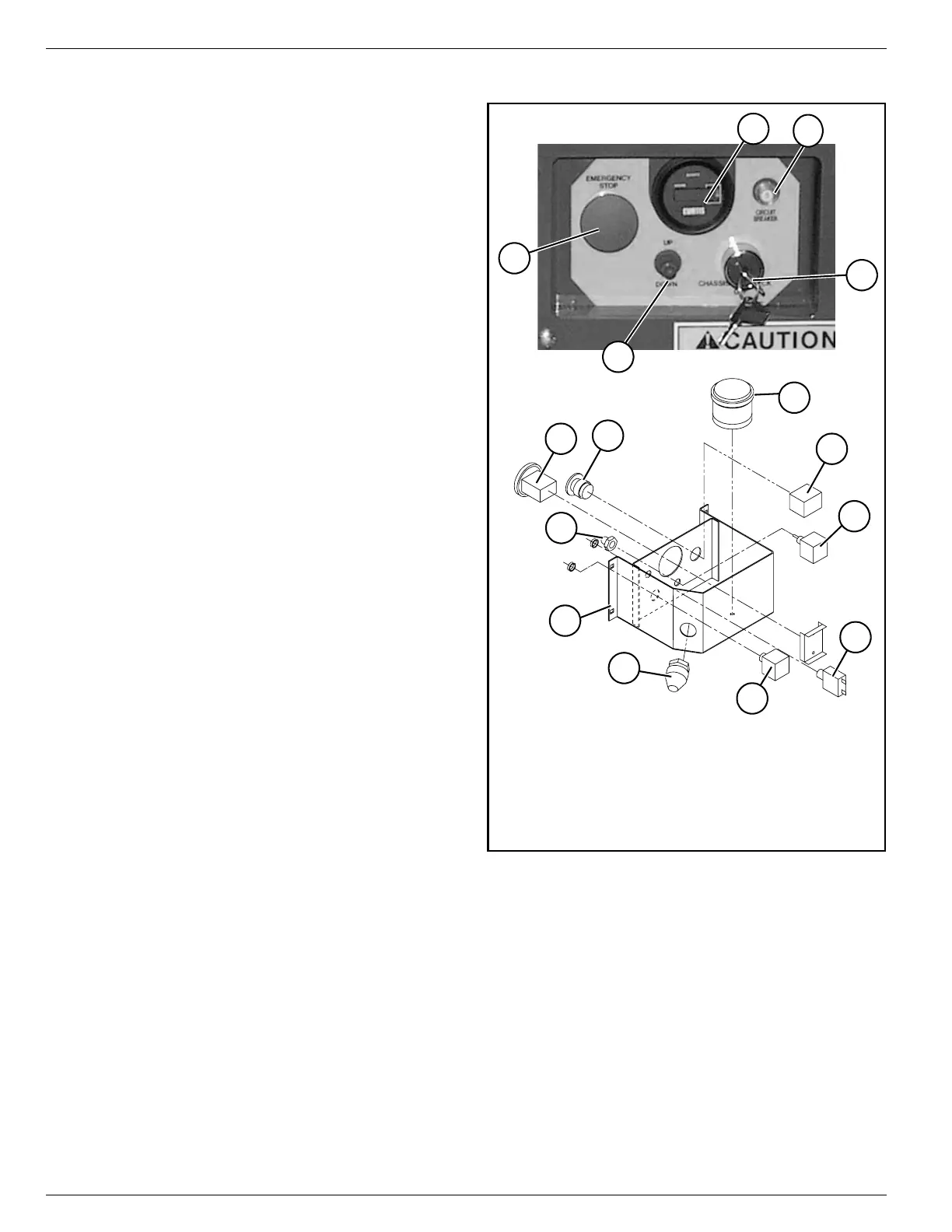

Figure 2-21:
Chassis Controls
The chassis control assembly is mounted on
the inside of the chassis door, to the left of the
hydraulic tank. It is secured to the door with
Four carriage bolts (1/4-20UNC x 3/4).
Right Side Door
1
2
6
2b
3
7
8
3
1
4
2
4
4b
5
5
1. Hour Meter/Voltage
Indicator
2. Mushroom Emergency Stop
Switch
2b. E-Stop Switch Contact
3. Key Chassis/Platform
Selector Switch
4. Up/Down Toggle Switch
4b. Boot Switch Cover
5. Circuit Breaker
6. Alarm, Dual Tone
7. Connector Cable, 3/4”
8. Box Weldment
To Next Page
