Page 4 107098-002 TM12 - Operator Manual
Controls and Indicators
C
ONTROLS
AND
I
NDICATORS
The operator shall know the location of each control and indicator and have a thorough knowledge of the
function and operation of each before attempting to operate the unit.

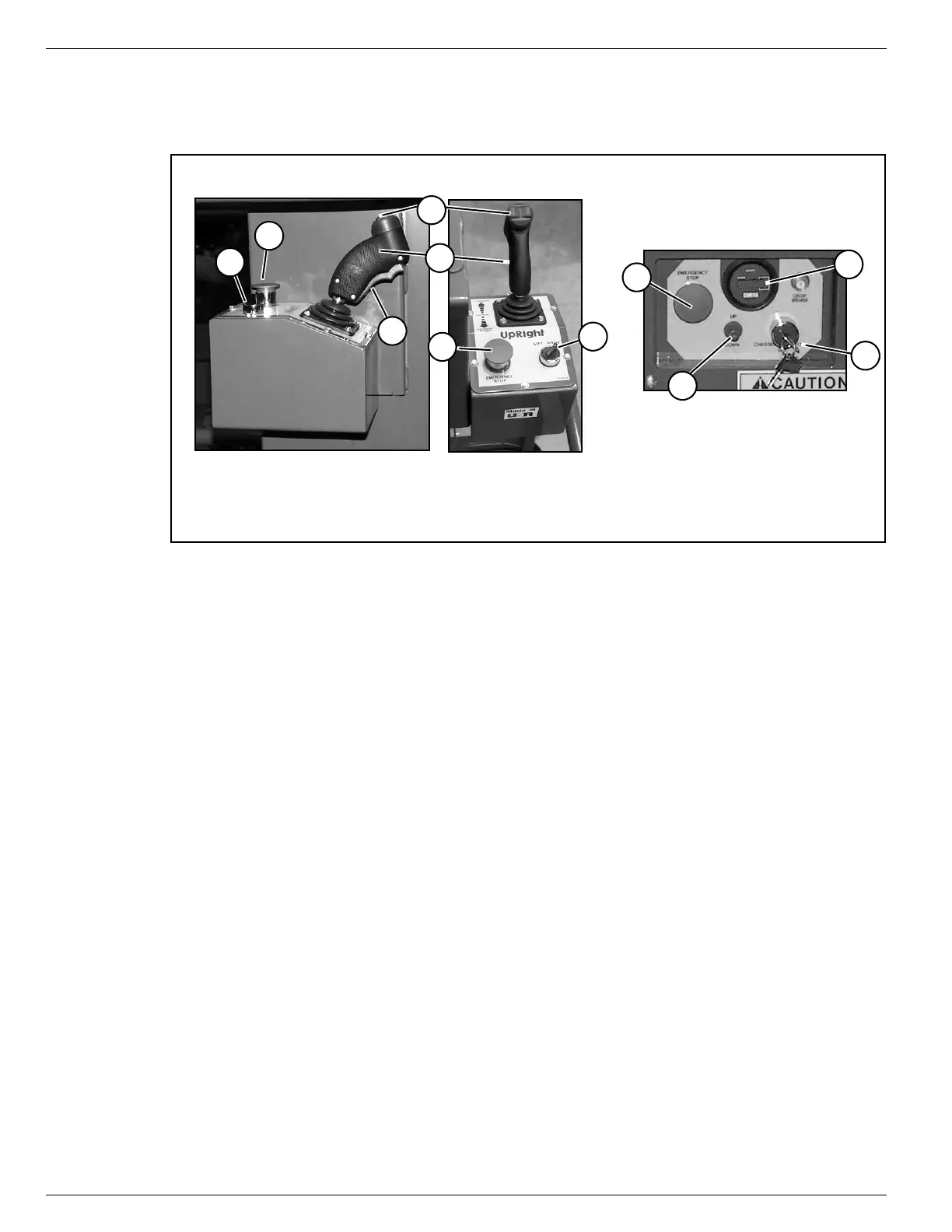

Figure 2:
Controls and Indicators
P
RE
-O
PERATION
S
AFETY
I
NSPECTION
NOTE:
Carefully read, understand and follow all safety rules, operating instructions, labels,
and the Scaffold
Industry Association’s MANUAL OF RESPONSIBILITIES of ANSI A92.6-1999
. Perform the following
steps each day before use.
1. Open the chassis door and inspect for damage, fluid leaks or missing parts.
2. Check the level of the hydraulic fluid with the platform fully lowered. Open the chassis door and remove
the reservoir cap, fluid should be visible on the dipstick. Add recommended hydraulic fluid if necessary.
See “Specifications” on page 16.
3. Check that the fluid level in the batteries is correct. See “Battery Maintenance” on page 10.
4. Verify that the batteries are charged.
5. Check that the A.C. extension cord has been disconnected from the chassis outlet.
6. Check that all guardrails are properly in place and secured with all fasteners properly torqued.
7. Inspect the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, dam-
aged cables or hoses, loose wire connections, and wheel bolts.
Platform Controller
5
2
8
6
7
9
1
Chassis Controller (Right Side)
4
3
5
2
1. Interlock Switch
2. Platform Emergency Stop Switch
3. Control Handle
4. Steering Switch
5. Lift/Drive Switch
6. Chassis Emergency Stop Switch
7. Chassis Up/Down Switch
8. Chassis Key Switch
9. Hour Meter
