DS1093-520 28
3.4.2.5 Mobile Stream

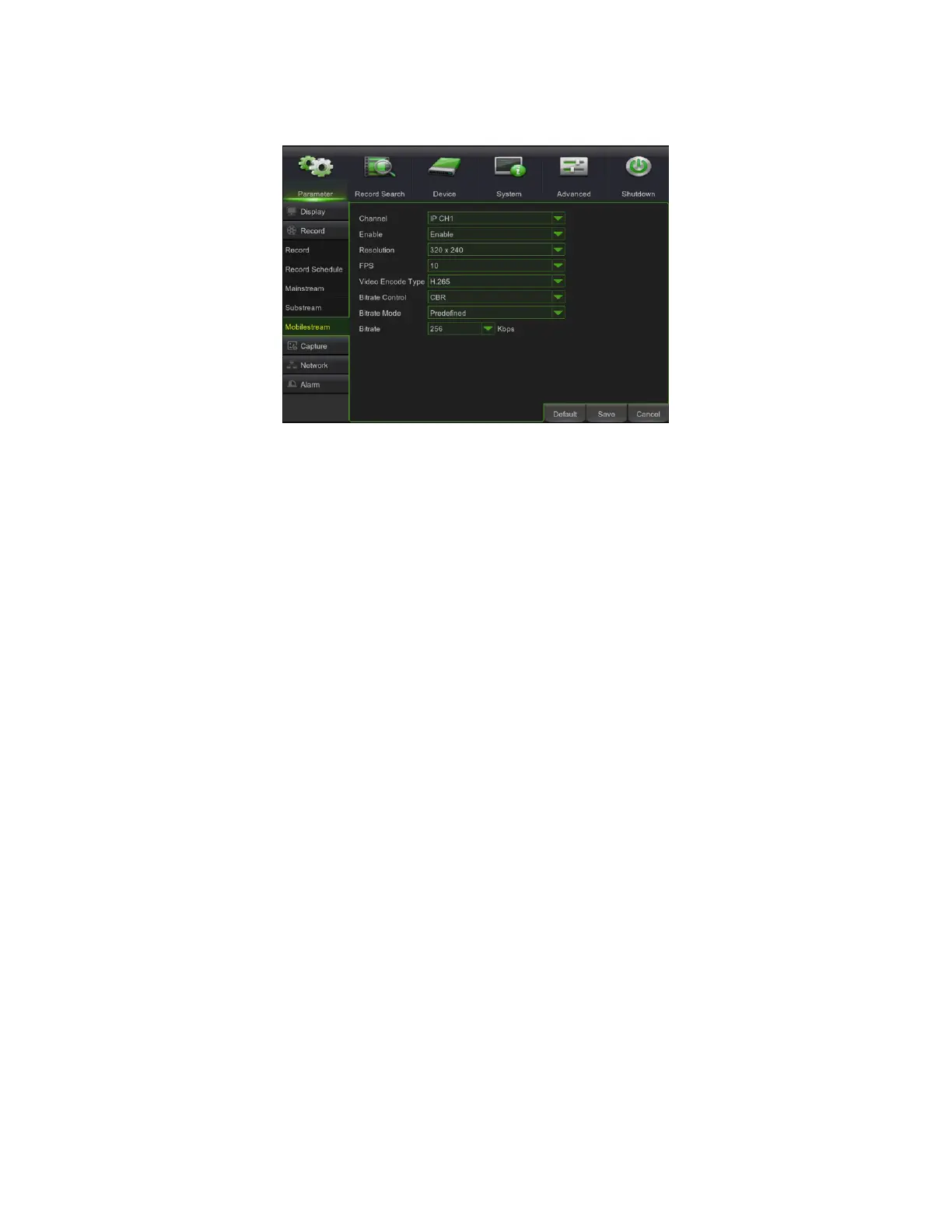

Select Mobile Stream in the left menu to configure the parameters of the third video stream which is used for playing back
on mobile devices, e.g. smartphones or tablets. The resolution in this case will be lower but on the other hand less
bandwidth will be occupied on the data channel.
• Channel: This option allows you select one channel you desired.
• Resolution: supports 320x240, 352x288, 640x360, 704x576 Resolutions depending from IP Camera Model.
• FPS (Frame rate): it is possible to select the following range values: PAL: 1-25 f/s ; NTSC: 1-30 f/s. The range Frame
Rate values can change depending on DVR model.
• Video Encode Type: (if available) it is possible to set H.264 IP channel or H.265 IP Channels.
• Bit Rate Control: it is possible to set Constant Bit Rate (CBR) or Variable Bit Rate (VBR). In VBR, you can set the
quality level (minimum, low, medium, high, maximum) of the stream video.
• Bit Rate Mode: it is possible to set Predefind in order to set from Bit Rate values listed or User Defined where the
user can put a Bit rate value manually.
• Bit rate: user could select the relative value by pull-down menu.
• Audio: When tick-selecting the option, system will record video stream with audio simultaneously
• Copy: this is used to copy the current channel settings on another or on all other channels.
NOTE:
In CBR Predefined Bit Rate Mode the Bit rate value changes automatically and accordingly with frame rate value selected
for each Analog and IP channel with protocols different from ONVIF Protocol.
