DS1093-520 29
3.4.3 CAPTURE
This subsection of the Parameters menu can be used to configure the parameters dedicated to the acquisition of images
in alarm conditions and to the programming of the times during which the function must be active.

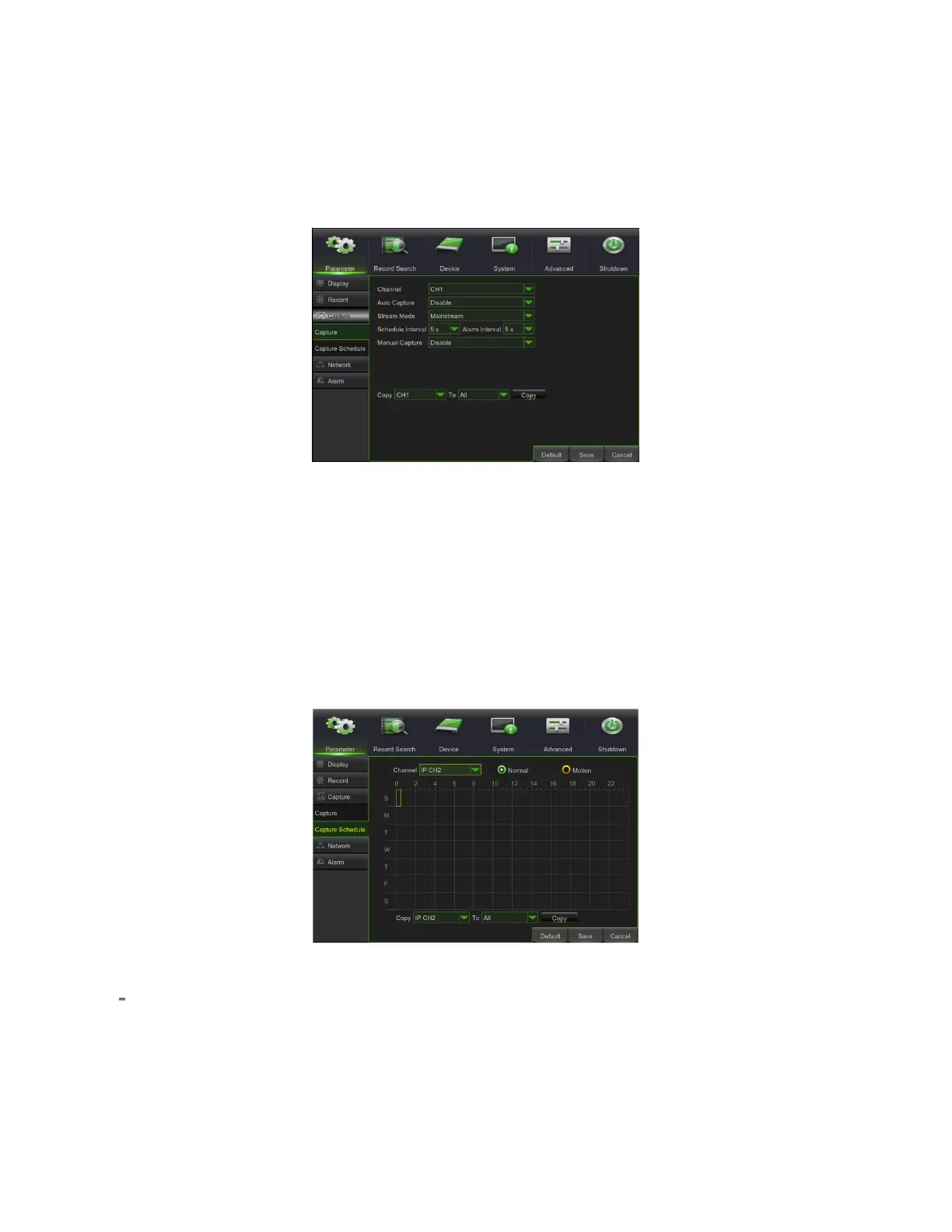

3.4.3.1 Capture (Cattura)
The Capture item is used to configure the parameters for recording the images in alarm condition, the possible options are
shown in the following table
• Channel: This is used to select the channel to be configured.
• Auto Capture: This is used to enable or disable the auto capture function for the selected channel.
• Stream Mode: This is used to select the data flow to be recorded; possible values are: Main Stream, Sub Stream.
• Schedule Interval: This is used to select the recording time in case of manual capture (normal); possible values are:
5 sec, 10 sec, 30 sec, 1 min, 10 min, 30 min, 1 hour.
• Alarm Interval: This is used to select the recording time in case of self capture (alarm); possible values are: 5 sec, 10
sec, 30 sec, 1 min, 10 min, 30 min, 1 hour.
• Manual Capture: This is used to enable or disable the function in case of manual capture by the user.
• Copy: this is used to copy the current channel settings on another or on all other channels.
3.4.3.2 Capture Schedule (Programmazione)
Capture Schedule can be used to configure the times and days of the week during which the capture function must be
operational.
• Channel: This is used to select the channel to be configured.
• Normal: This can be used to select the times during which the system will record in manual capture mode.
• Motion: Use this option to define the times at which to enable recording in case of automatic motion detection.
• Copy: This is used to copy the current channel settings on another or on all other channels.
.
Click on the [Save] button when the program is completed.
Alternatively, click on the Default button to use the system default parameters.
