US Cutter LaserPoint - Initial Setup and Connection

- 13 -

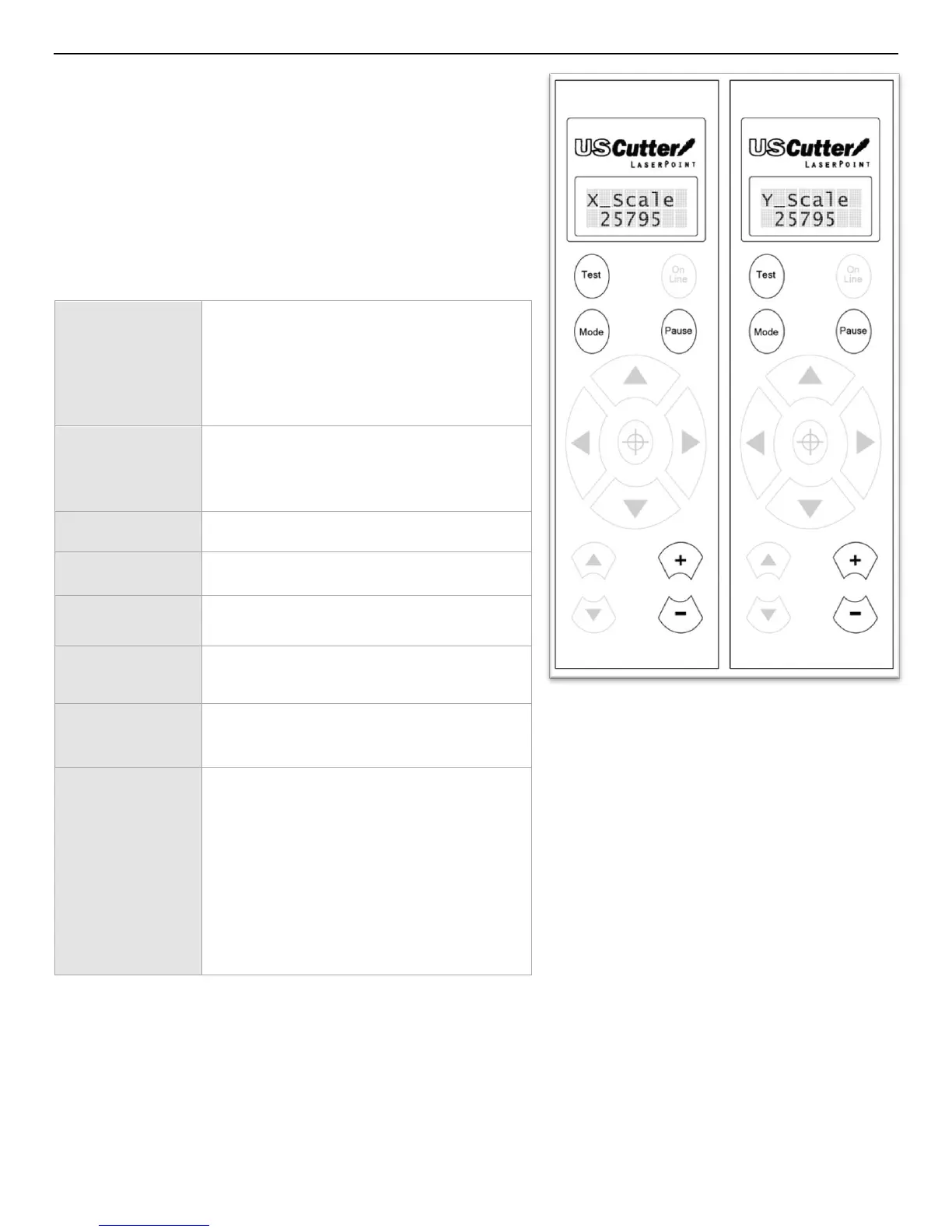

X/Y Axis Scale Compensation Modes
The X and Y Axis Scale Compensation Modes are used to
correct problems when the cuts being made are not the
same scale as they are intended. The X axis effects the size
of cuts across the width of the vinyl while the Y axis effects
the size of cuts along the length of the vinyl. If the cuts
being made are not the correct size, increase or decrease
the number that coincides with the problem axis until the
cuts are correct.
Test Button
Returns the cutter to Jog Mode (If held
down, a test cut will be made).
On Line Button
(has no function in this mode).
Mode Button
Cycles through the 7 Off Line modes.
Pause Button
Returns the cutter to Jog Mode.
Directional
Buttons
(has no function in this mode).
Target Button
(has no function in this mode).
Up/Down
Buttons
(has no function in this mode).
Plus/Minus
Buttons
Increases/Decreases the amount of
X/Y scale compensation. The larger
the number is, the larger the cut made
will be. This compensation can be used
to remedy problems where the cut
being made is smaller or larger than it
was intended.
