US Cutter LaserPoint - Control Panel Operations; Control Panel Button Functions

- 5 -

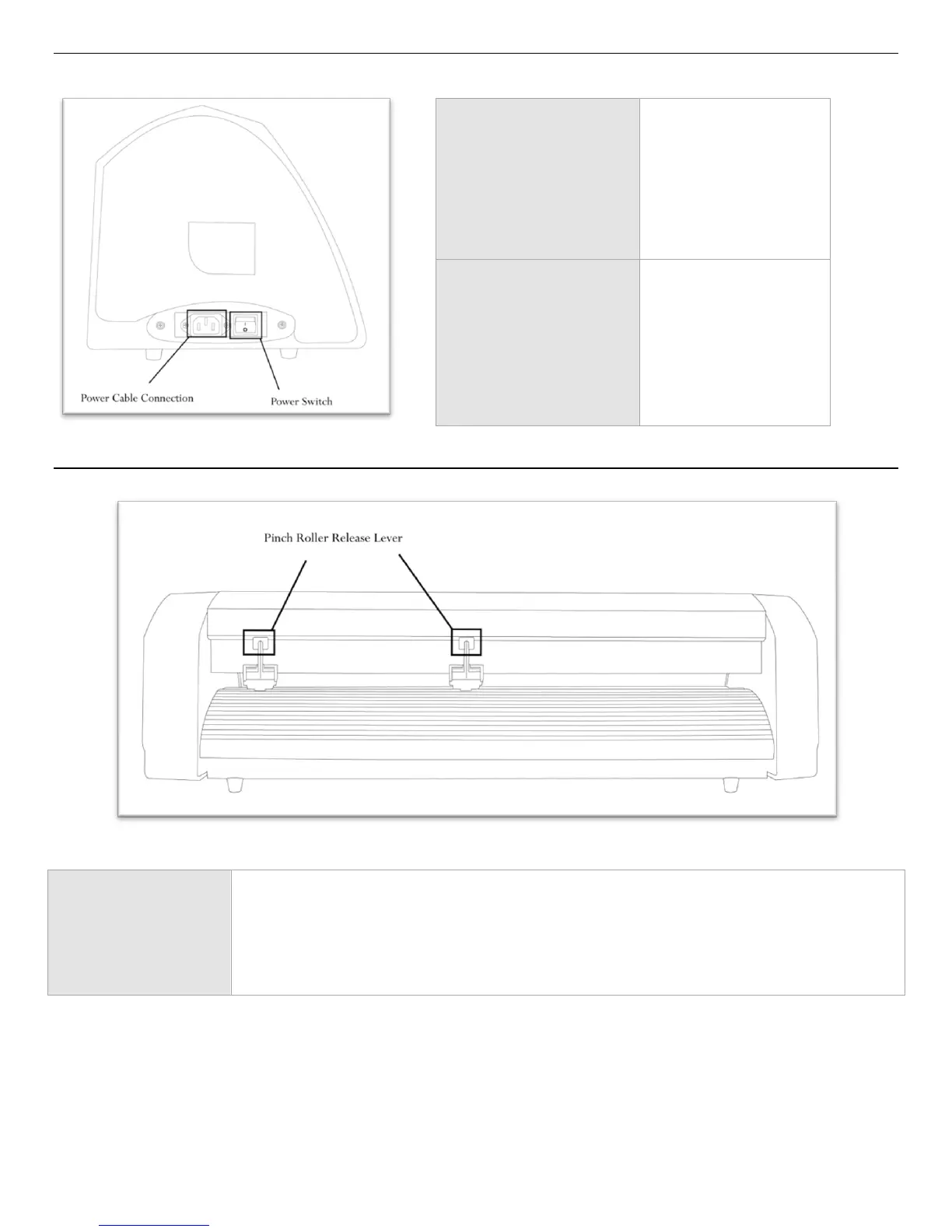

Left Side View
Back View
Pinch Roller Release
Lever(s)
Pinch Rollers can be released (either to be moved from side to side or to allow vinyl to be
easily fed below them) by pressing down on the Release Levers. Pinch rollers should
be adjusted so that one is positioned on each side of the vinyl (or other media) to be
cut and should only be lowered onto an area of the feed roller below that has
traction (the rough area).
Power Cable
Connection
Used to connect the
cutter to a wall outlet
or surge protector.
Power Switch
Turns the power of
the cutter on(1) or
off(0).
