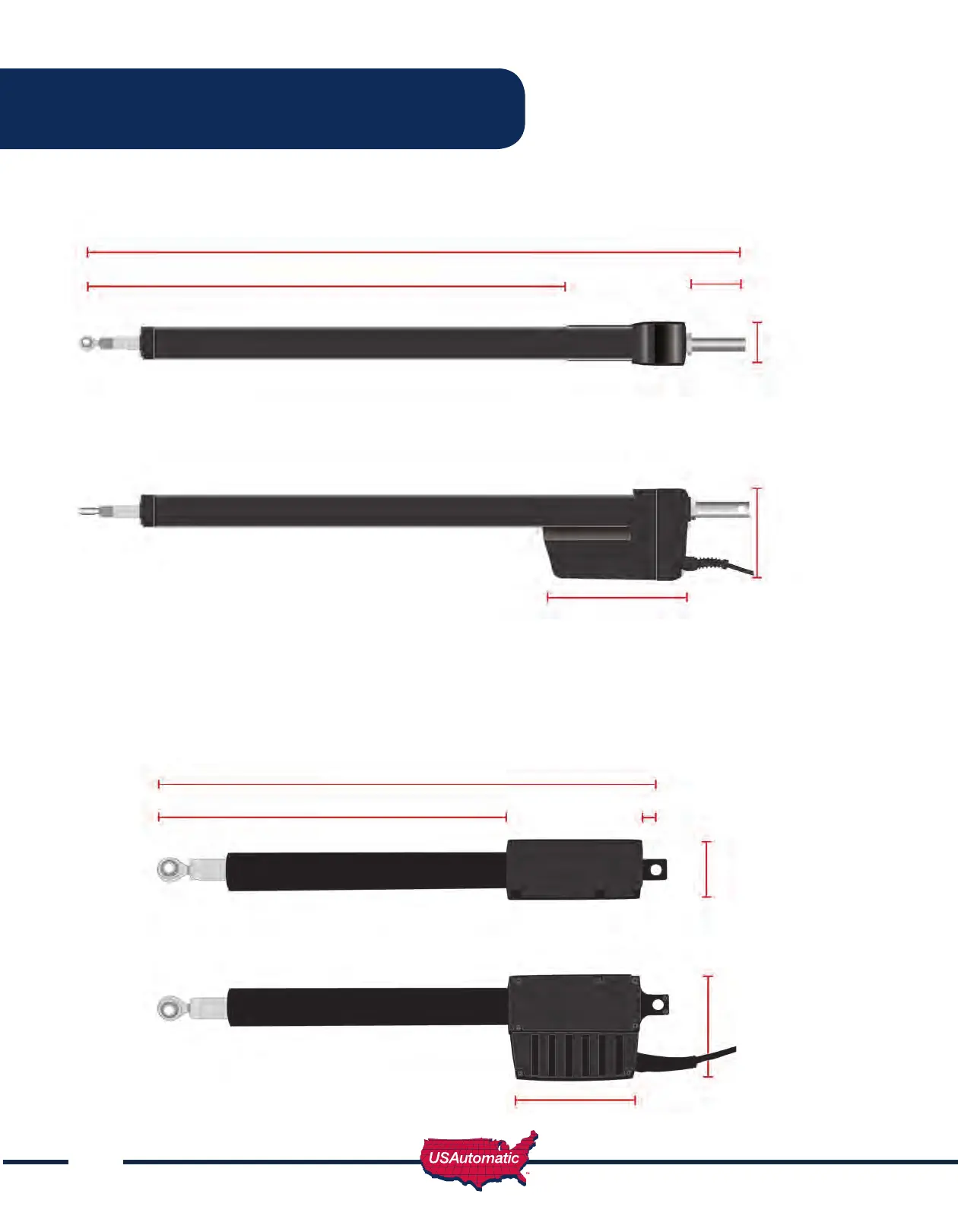

ACTUATOR DIMENSIONS
Rear Gear box to front
Rear housing to motor end
TOP VIEW
TOP VIEW
Housing width
3”
Housing width 3.2”
42.5”
25.25”
30.25”
17.25”
7.75”
5.25”
9”
7.25”
3.25”
.75”
(Measurements are to center of hole.)
(Measurements are to center of hole.)
Ranger HD
Pro 80
