USAutomatic Ranger HD - Install Linear Actuator to Mounting Bracket

20
Install Linear Actuator to Actuator Mounting Bracket

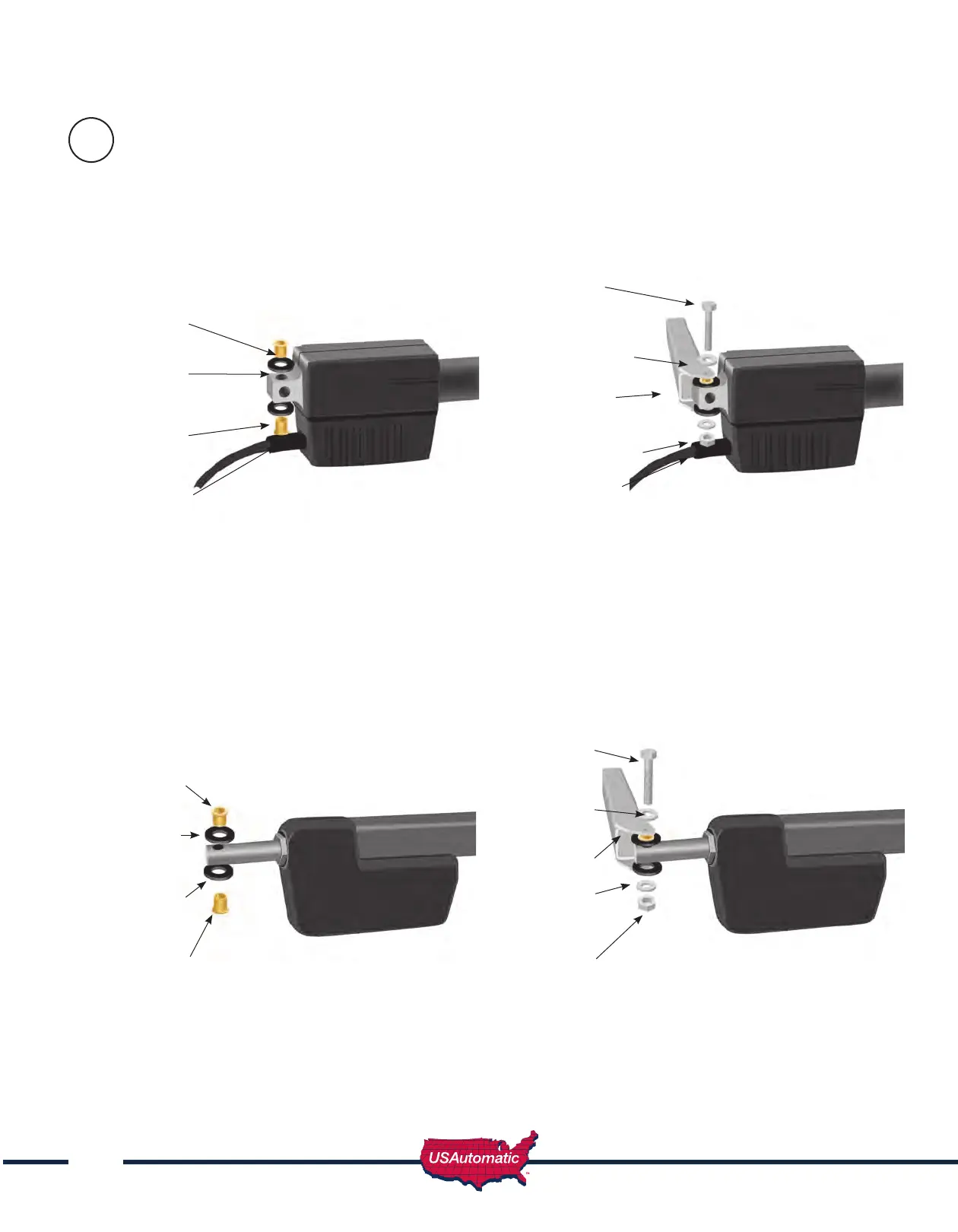

The linear actuator should be mounted to the actuator mounting bracket using the provided hardware.
Assemble as shown below. Tighten lock nut securely.
7
Bronze Bushing
Part # 610530
Nylon Washer
Part # 610528
Nylon Washer
Part # 610528
Bronze Bushing
Part # 610530
Bronze Bushing
Part # 610530
Nylon Washer
Part # 610529
Nylon Washer
Part # 610529
Bronze Bushing
Part # 610530
⅜” Bolt
Part # 610512
⅜” SAE Flat Washer
Part #610516
Mounting Tube
Part # 610420
⅜” SAE Flat Washer
Part #610516
⅜ inch Lock Nut
Part # 610518
⅜” Bolt
Part # 610512
⅜” SAE Flat Washer
Part #610516
Mounting Tube
Part # 610420
⅜” SAE Flat Washer
Part #610516
⅜ inch Lock Nut
Part # 610518
