USAutomatic Ranger HD - Mounting Brackets - PULL TO OPEN

14

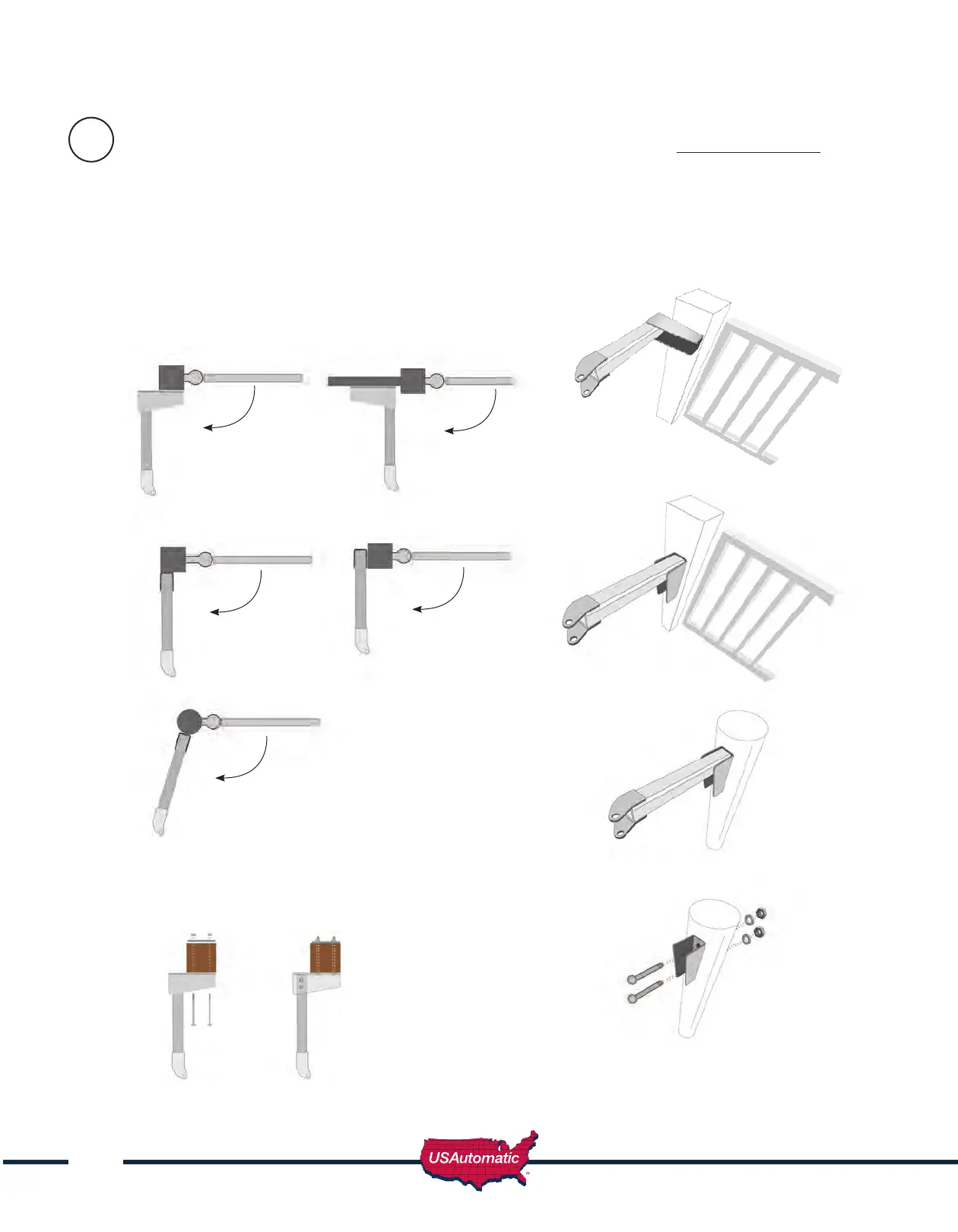

Determine Best Method for Actuator Mounting Brackets - PULL TO OPEN
(PRO80 or HD)
Study the examples below and determine the best method for your gate. The examples below are
for left hand installations. Reverse for right hand installations.
Square Post
Round Post
Wood or Aluminum Post
Drill through mounted.
Drill through post and
bracket. Use carriage
bolts with back plate.
(not included)
4a
Actuator support bracket mounted
horizontally on hinge post
Actuator support bracket mounted
vertically on hinge post
Actuator support
bracket mounted
vertically on
hinge post
Actuator support bracket mounted
vertically opposite hinge
3D Example
On wood post
Actuator support bracket mounted
horizontally on fence rail
