Determine Best Method for Actuator Mounting Brackets - PUSH TO OPEN
(PRO80 or HD)

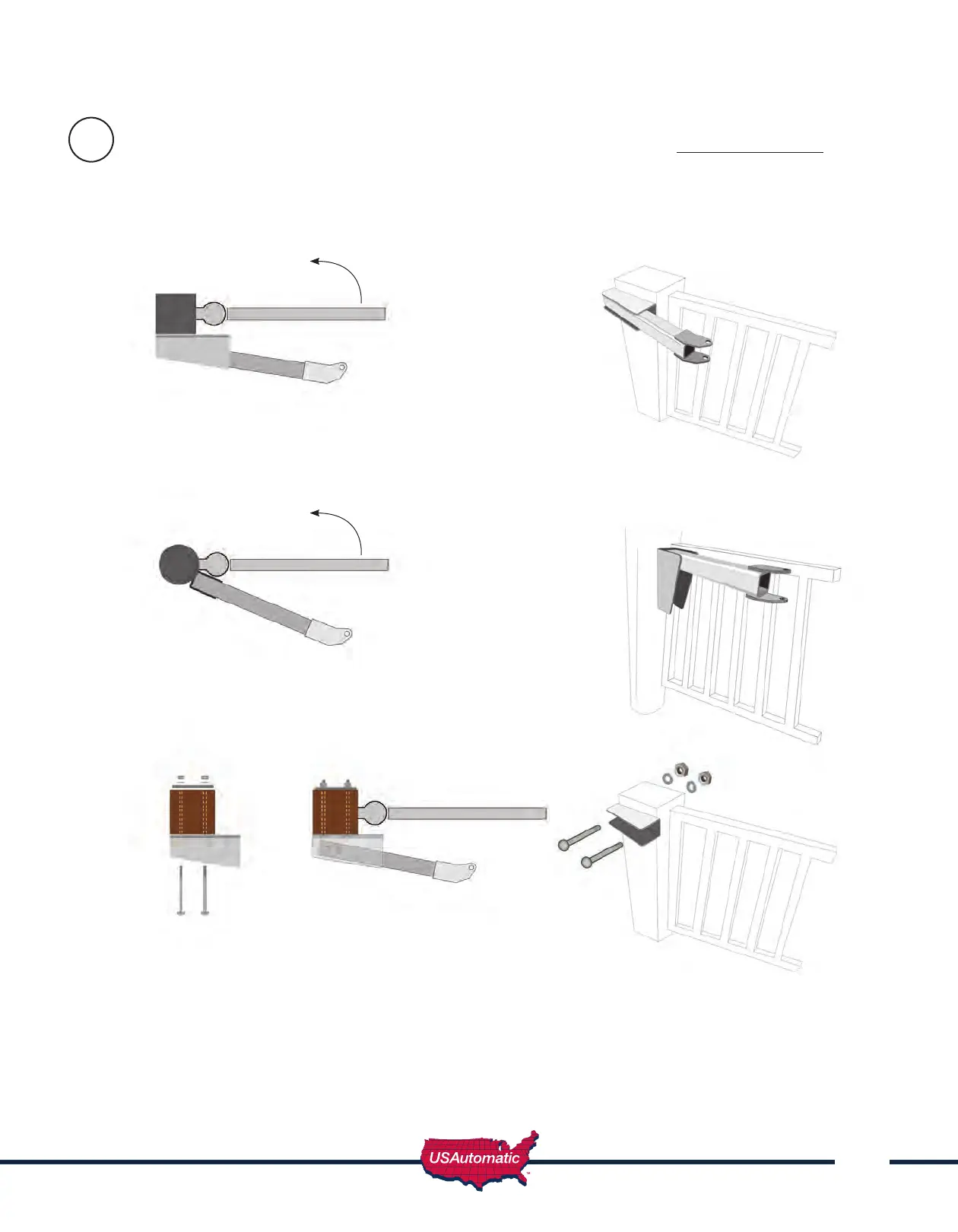

Study the examples below and determine the best method for your gate. The examples below are for
left hand installations. Reverse for right hand installations.
Square Post
Round Post
Wood or Aluminum Post
4b
Drill through mounted.
Drill through post and bracket.
Use carriage bolts with back plate.
(not included)
Actuator support bracket mounted
horizontally on hinge post
Actuator support bracket mounted
vertically on hinge post
3D Example
