USAutomatic Ranger HD - Mounting Brackets - COLUMNS

16

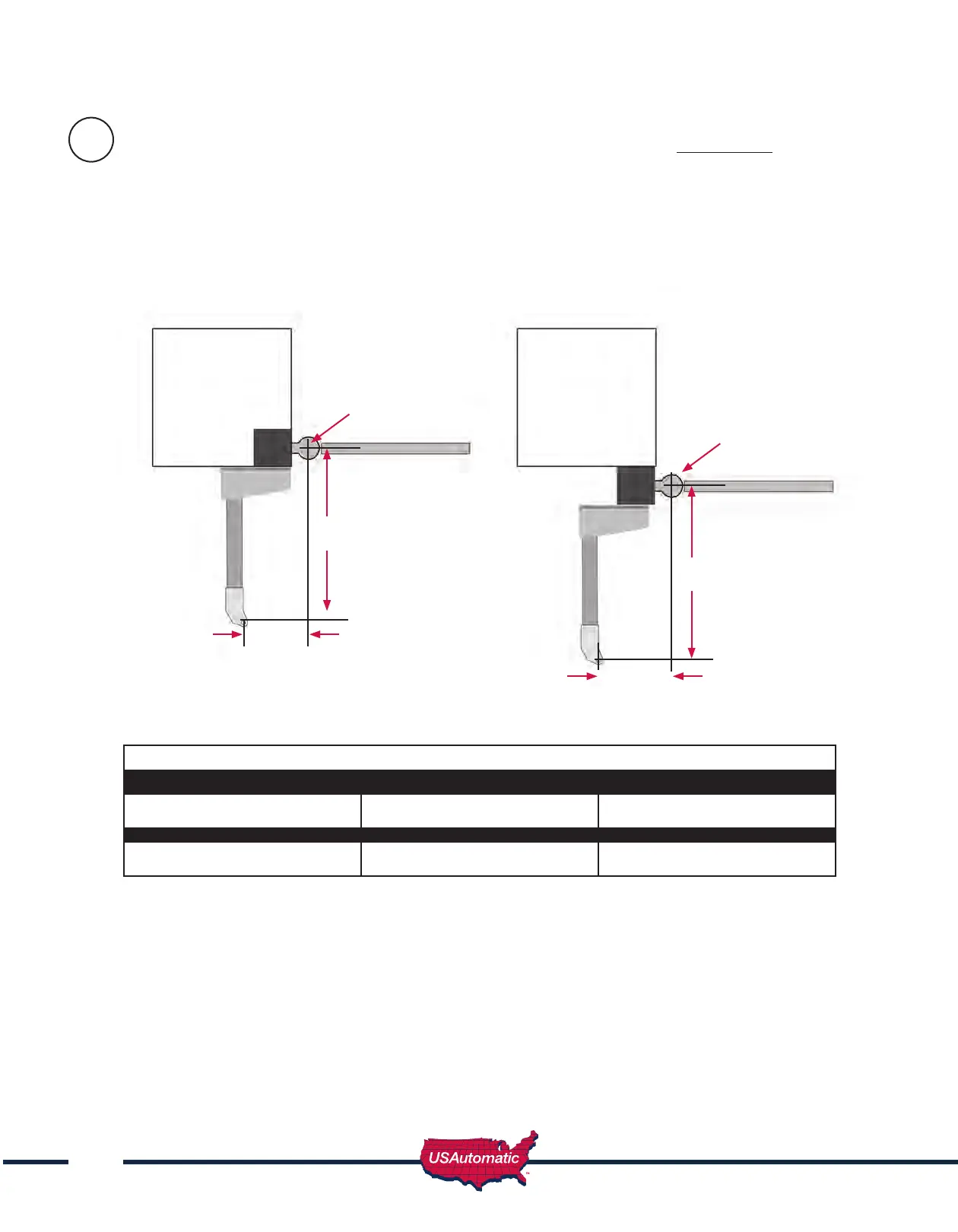

Determine Best Method for Actuator Mounting Brackets - COLUMNS
(PRO80 or HD)
Dimensions shown are for 90° - 95° opening.
New Construction Existing Columns
Actuator Mounting Bracket Installation Dimensions
Operator Dimension A Dimension B
Ranger HD 13” 6”
Ranger Pro80 7½”
5”
Set hinge post
in corner
Set hinge post
behind column
center of hinge
center of hinge
Dim A
Dim A
4c
Dim B
Dim B
