Part III – Programming the System5
Page 25
3b: Hardware Calibration
If you choose Hardware Calibration from the
Diagnostics Menu, the screen will display some
or all of the following choices (depending upon
your system needs).
Next to each choice is the current programmed
value for that option. Type in the number of the
option you would like to program. The screen
will display the previous value selected and
prompt you to enter the new value. Type the
new value and Press Enter.

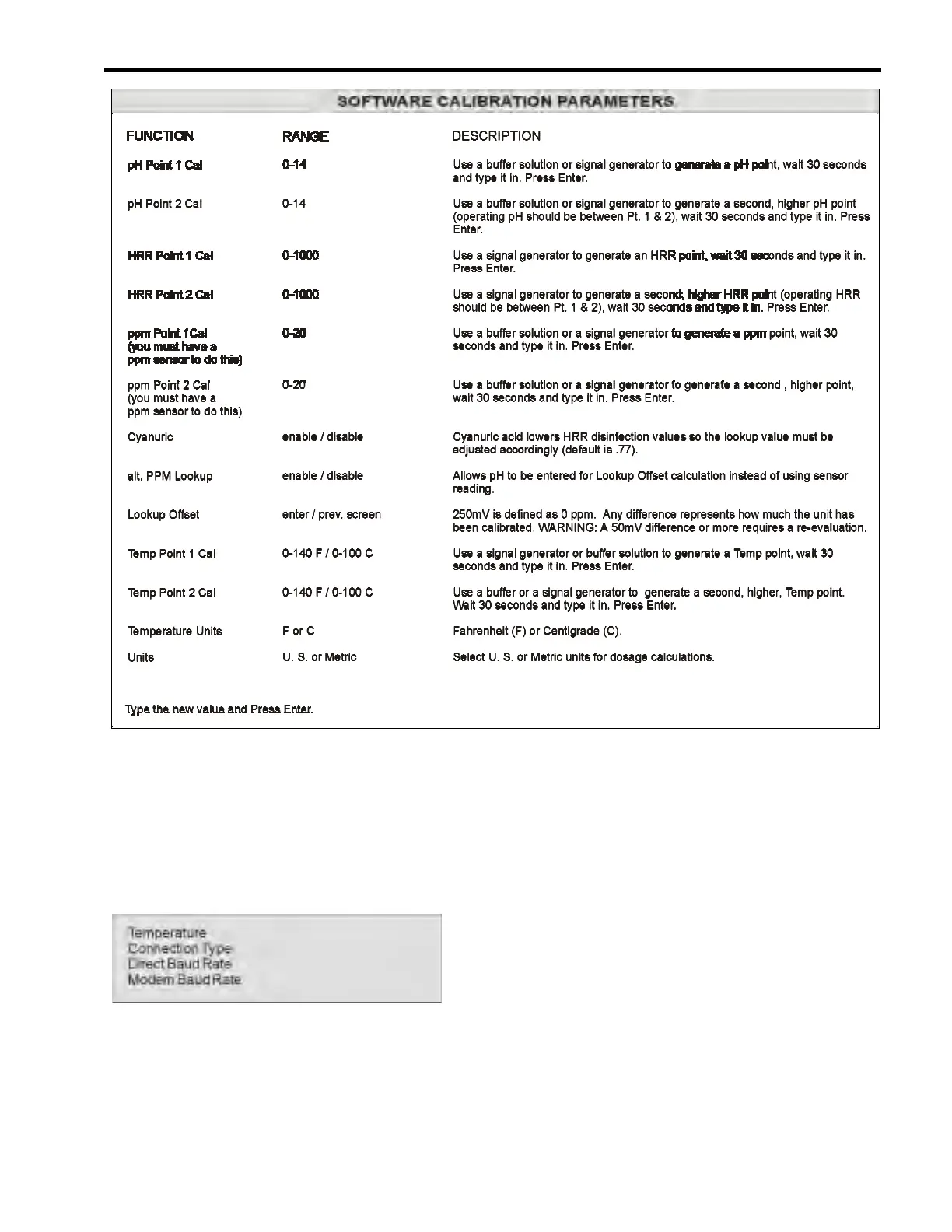

3b-1: Entering New Values for Hardware
Calibration
For each option you select from the Hardware
Calibration Menu the screen will display the
previous value selected for that option and
prompt you to enter the new value. The
following table will help you decide what values
to enter. NOTE: The direct and modem baud
rates for the controller must match the baud
rates in the controller software.
