Utax P-4530DN Service Manual

2LV/2L1/2L2/2MS/2MT-1
1-5-9
2. Remove the spring.
3. Remove the retard roller holder by
rotating.
4. Check or replace the retard roller and
refit all the removed parts.

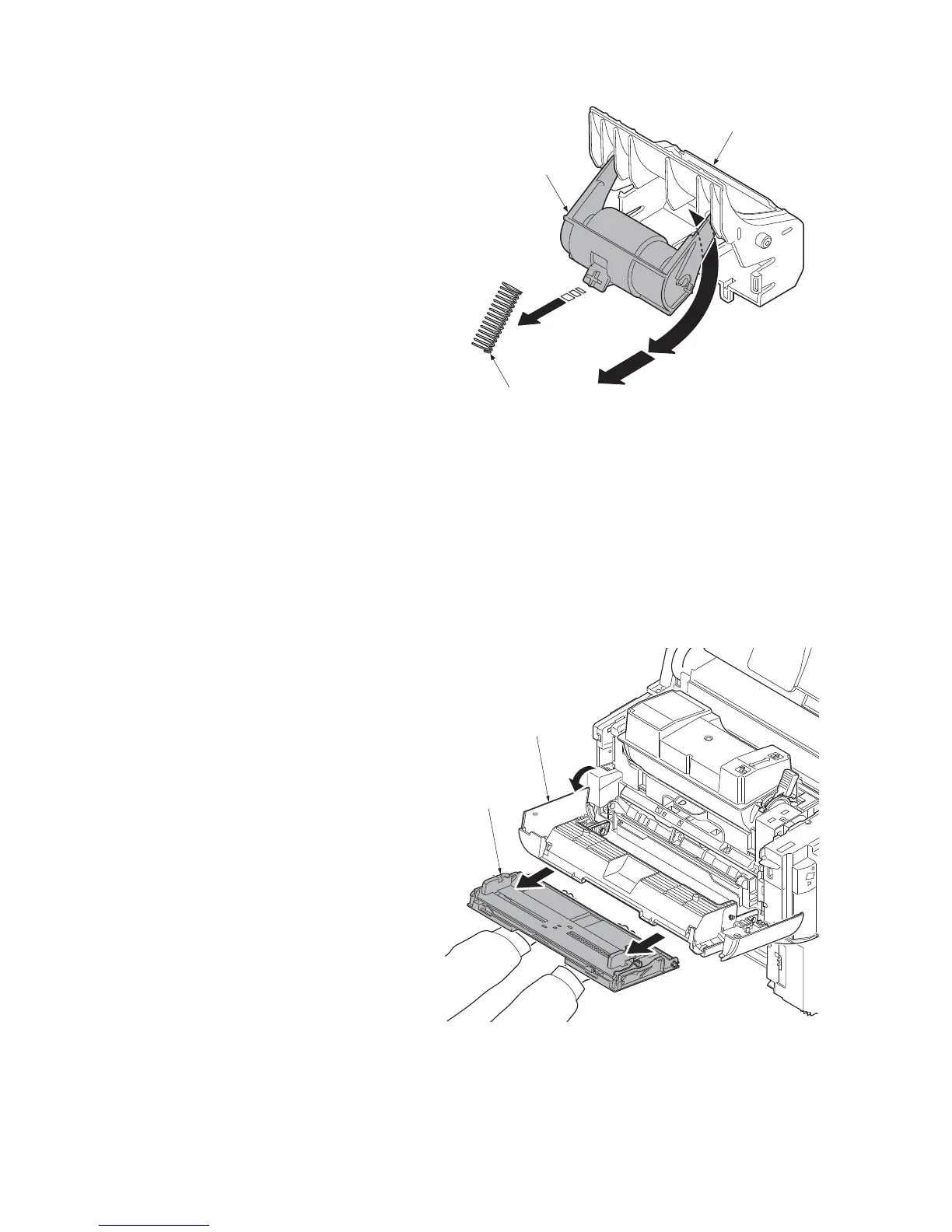

Figure 1-5-14
(3) Detaching and refitting the MP paper feed pulley
Procedure
1. Open the top cover.
2. Open the front cover.
3. Remove the MP tray from the printer
while bending it.
Figure 1-5-15
Retard roller guide
Spring
Retard roller holder
MP tray
Front cover
