2LV/2L1/2L2/2MS/2MT
2-1-13
2-1-8 Duplex conveying section
The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.

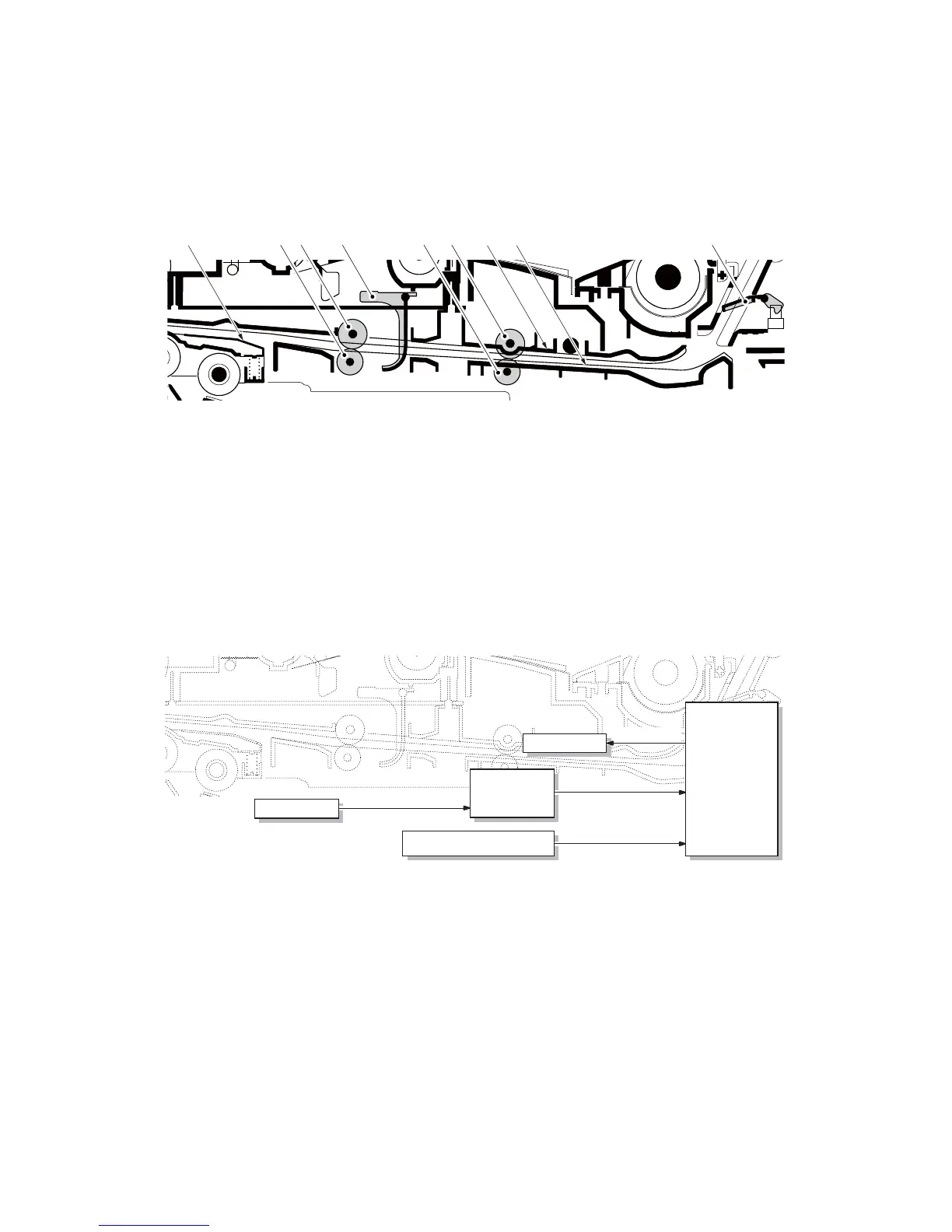

Figure 2-1-21 Duplex conveying section
Figure 2-1-22 Duplex conveying section block diagram
*1: 60/50/45 ppm model only
127 5 6124 3
1. DU conveying roller
2. DU conveying pulley
3. Actuater
(Duplex sensor 1 (DUS1)) *1
4. Actuater
(Duplex sensor 2 (DUS2))
5. DU base
6. DU lower guide
7. Upper feed guide
DUCLN
DUJAMSEN1N
DUCL
DUJAMSEN1N
YC9-3
R-LPWB
DUS1 *1
DUJAMSEN2N
HVPWB
DUS2
YC5-10
YC2-20
EPWB
YC19-13
To Next Page
