Utax P-4530DN Service Manual

2LV/2L1/2L2/2MS/2MT
2-1-6
2-1-3 Developer section
The developer unit consists of the developer roller that forms the magnetic brush, the developer blade and
the developer screws that agitate the toner.Also, the toner sensor (TS) checks whether or not toner remains in
the developer unit.

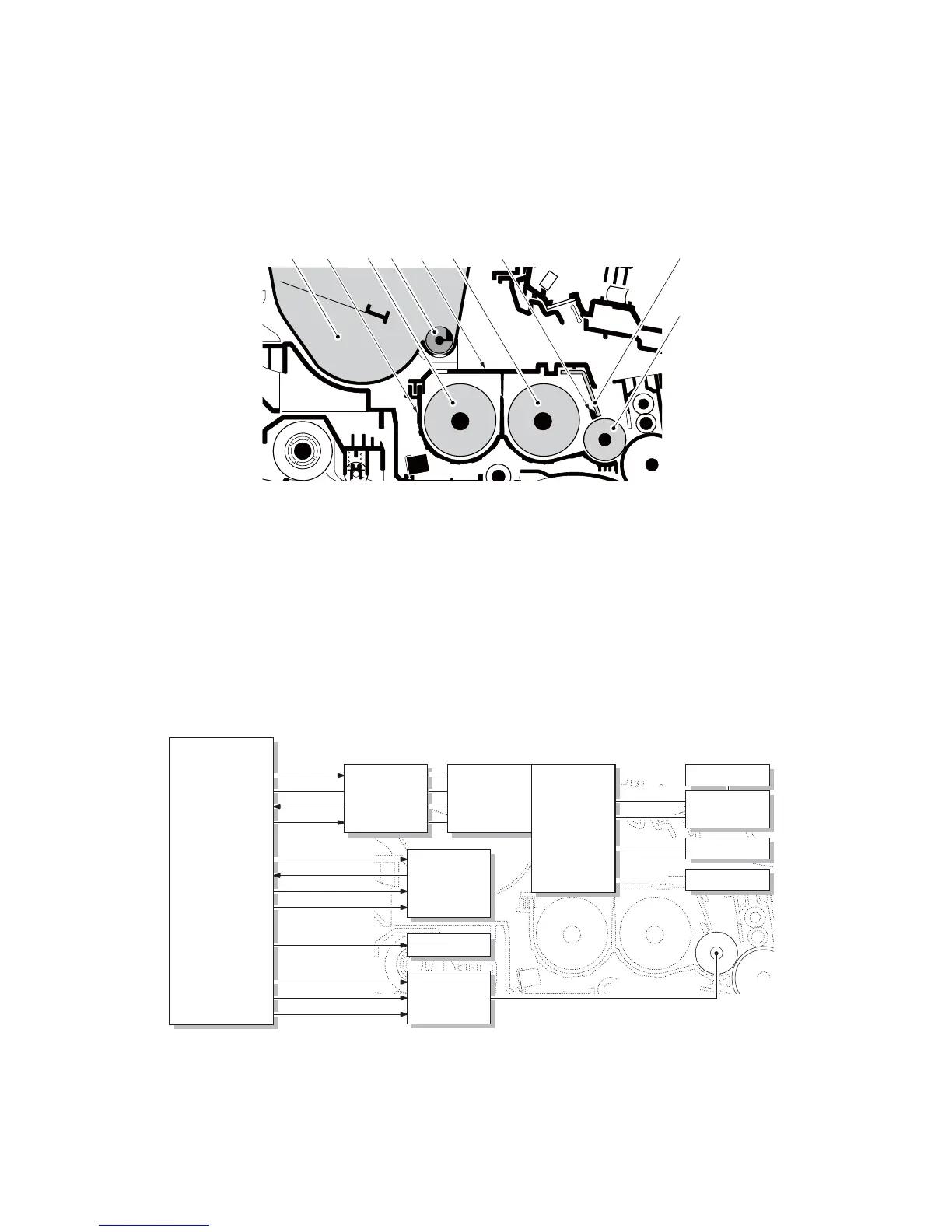

Figure 2-1-11 Developer section
Figure 2-1-12 Developer section block diagram
6 7 3
2
1
45 89
1. Developer roller
2. Developer blade
3. Magnet blade
4. Developer screw A
5. Developer screw B
6. Developer case
7. Upper developer cover
8. Toner supply roller
9. Toner container
MMOTCW
MMOTRDYN
MMOTCLKN
MMOTONN
HVCLK
EESIO
TSENS
YC3-2
YC4-1
TMOT
EECLK
EESIO
TSENS
TMOT
EECLK
YC2-6
YC2-15
6
5
MM
4
3
R-LPWB
DLPCLN
DEVSCL
CRPWB
TS
TS
TM
YC5-2
DRPWB
DRRPWB
HVPWB
YC2-3
YC2-2
YC4-1
YC4-2
YC4-3
YC4-4
YC19-7
YC2-3
YC2-1
Developer bias
Drum
EPWB
BDCNT
YC19-8
BACNT
YC19-9
