Utax P-4530DN Service Manual

2LV/2L1/2L2/2MS/2MT
1-5-19
1-5-8 Fuser section
(1) Detaching and refitting the fuser unit
Procedure
1. Remove the rear cover.
(See page 1-5-6)
2. Remove the screw and then remove the
connector cover A.
3. Pull two connectors out.

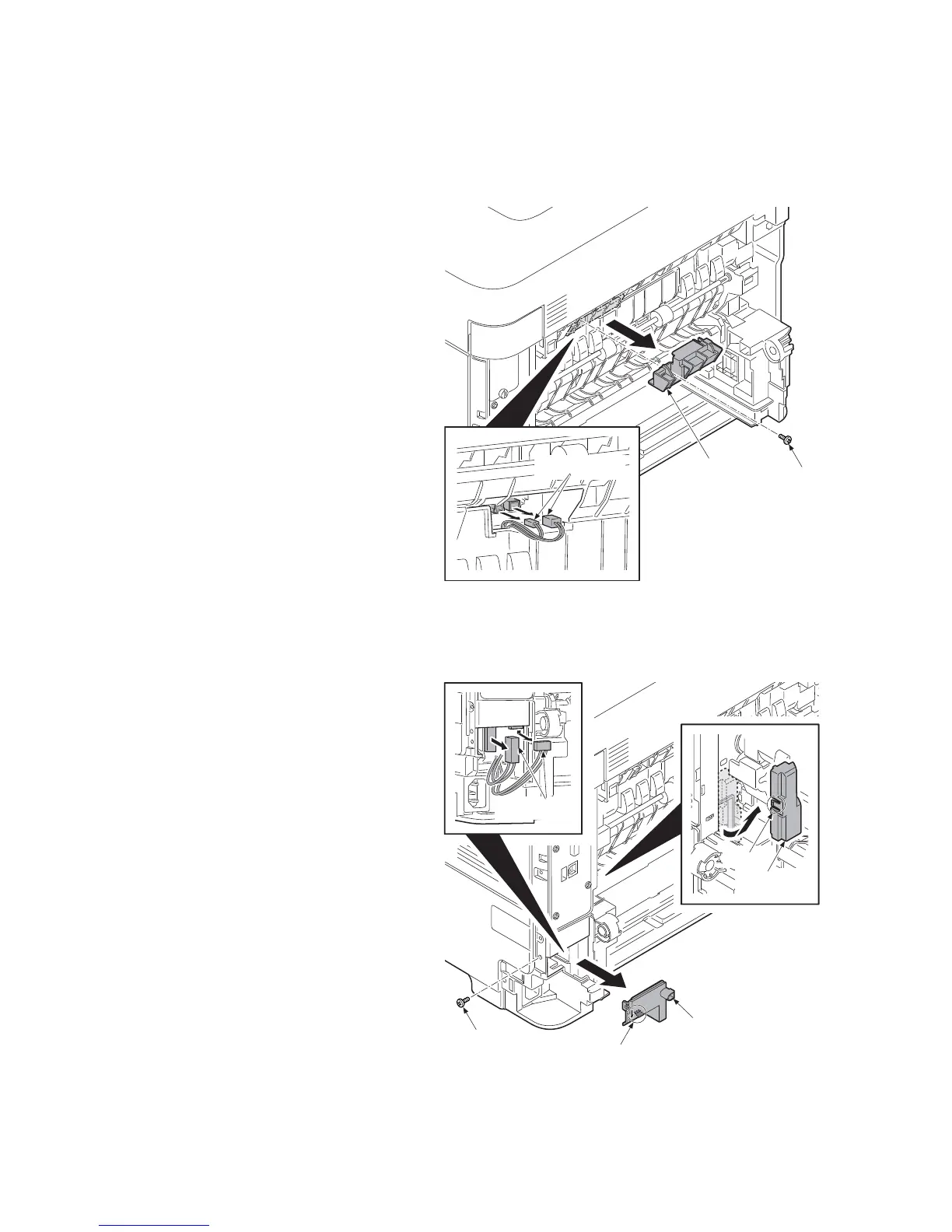

Figure 1-5-29
4. Remove the connector cover B by
releasing the hook.
5. Remove the screw of connector cover
C.
6. Remove the connector cover C by
releasing the hook.
7. Pull two connectors out.
Figure 1-5-30
connector
cover A
Connectors
Screw
Screw
Connector
cover C
Hook
Connectors
Hook
Connector
cover B
