Utax P-4530DN Service Manual

2LV/2L1/2L2/2MS/2MT
1-5-15
1-5-5 Drum section

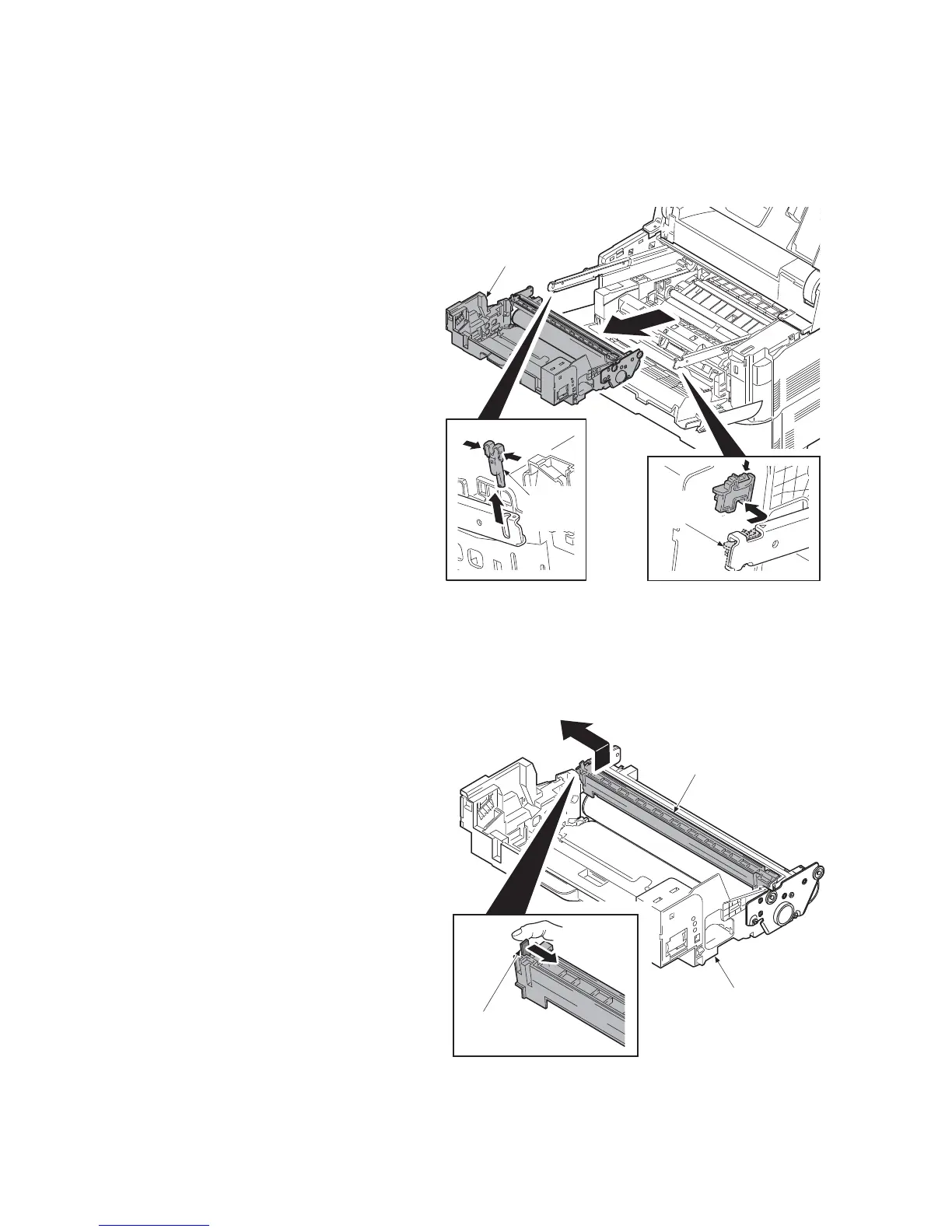

(1) Detaching and refitting the drum unit
Procedure
1. Remove the developer unit.
(See page 1-5-13)
2. Remove the lock lever L.
3. Remove the lock lever R by sliding
backward.
4. Remove the drum unit by sliding
forward.
5. Check or replace the drum unit and refit
all the removed parts.
Figure 1-5-23
(2) Detaching and refitting the chager roller unit
Procedure
1. Release the lock lever and then remove
the chager roller unit.
2. Check or replace the charger roller unit
and refit all the removed parts.
Figure 1-5-24
Drum unit
Lock
lever L
Lock
lever R
Durm unit
Lock lever
Main chager roller unit
