Chapter 8: Oximetry
Veterinary Vital Signs Monitor Operation Manual 8-7

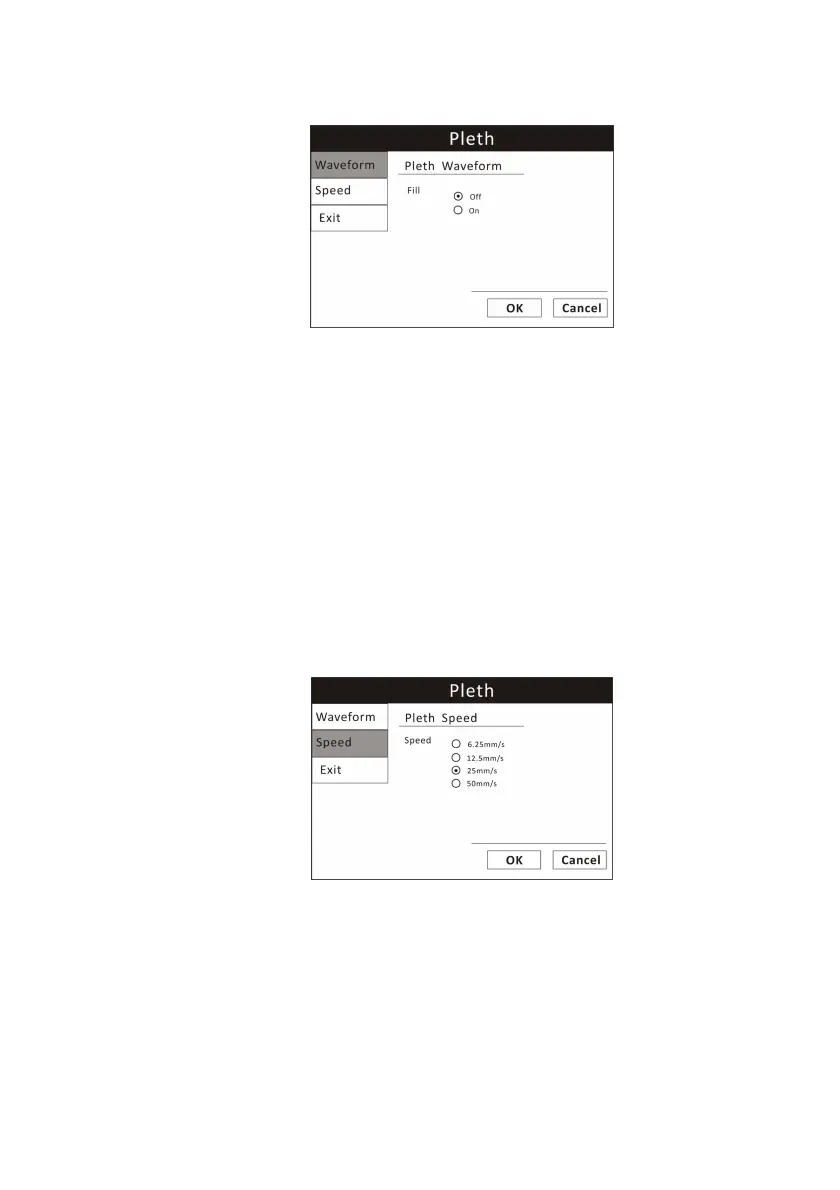

Figure 8.2: Fill Pleth Waveform
To fill the pleth or not:
1. On the pleth menu, highlight WAVEFROM and push the knob to select.
2. Highlight the desired option (On/ Off)and push the knob to select.
3. Turn the rotary knob to “OK” or “Cancel” to save or delete your settings.
8.6.3 Choose the Waveform Speed
You can choose the speed at which the Pleth is displayed.
Figure 8.3: Choose the Pleth Waveform Speed
To change the speed of the pleth:
1. On the pleth menu, highlight SPEED and push the knob to select.
2. Highlight the desired size of the waveform (6.25, 12.5, 25, or 50 mm/second)
and push the knob to select.
