Utopia Lustre series - Symmetry Bath Side and End Panels; Fitting Bath Side and End Panels

WWW.UTOPIAGROUP.COM
page 32

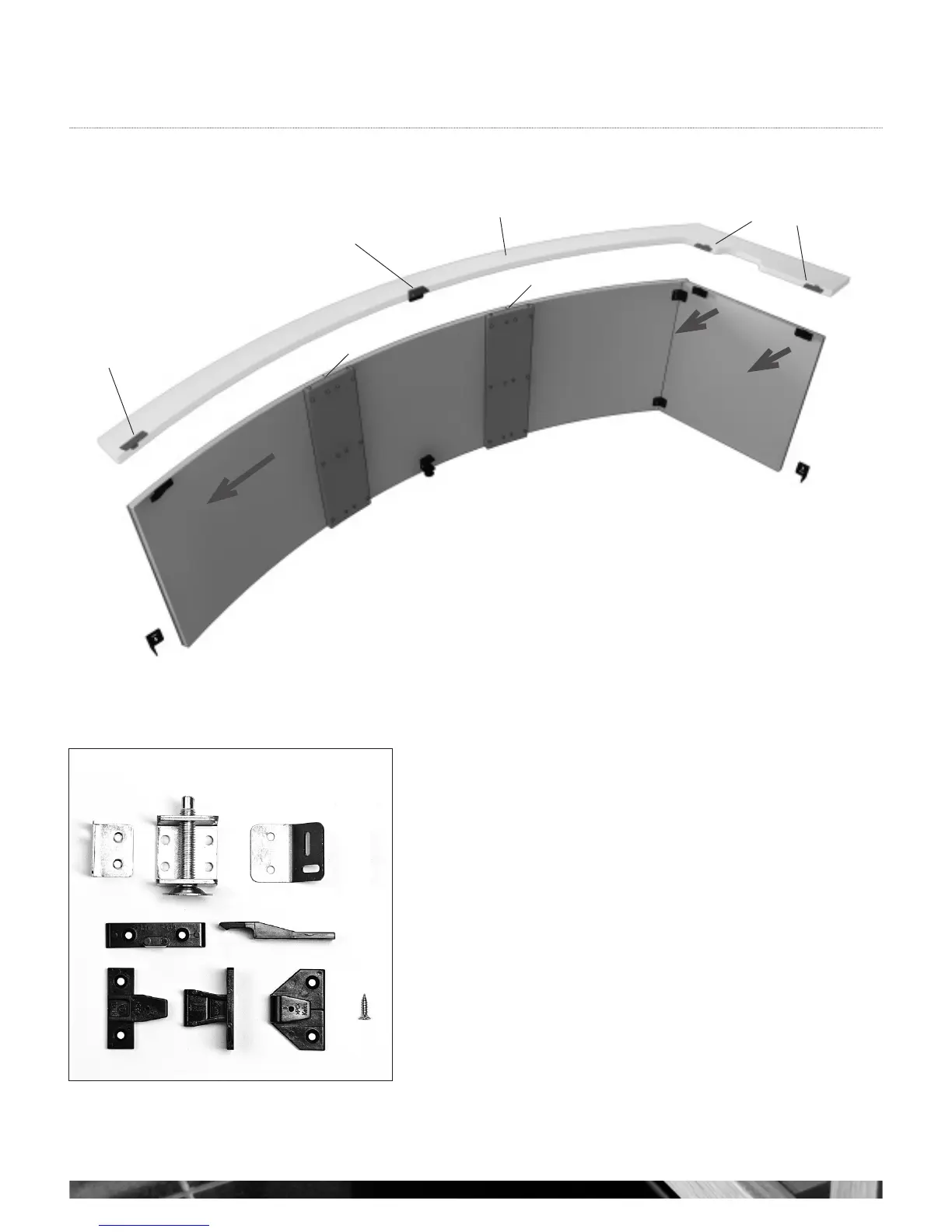

g 1
A
A
B
C
E
C
C
F
F
D
D
2mm gap
Keku hook clip
Keku clips
Bracket fixed to
top rail only
Top Rail
2mm gap
Symmetry Bath Side and End Panels
SYMMETRY BATHS
Please note - remove all protective film from panels before fixing them together.
Ensure the under side of this bath rim is fitted at a height which will give the required
clearance for the panels and/or a bath end storage unit when fitting.
BATH SIDE PANELS WITH A TOP RAIL
The top rail should be fitted first around the under side of the bath rim with the desired
amount of rail showing and fixed to the timber under the bath rim.
FITTING BATH SIDE AND END PANELS
Fix the 3 bath side panels together with the blocks and screws provided ensuring there is a
2mm space between each panel (see g 1 A).
Fit the adjustable foot at the base of the centre panel (see g 1 B), to support the panels. Fit
the keku clips as shown (see g 1 C), ensuring that they line up correctly on the top rail and
panels. Once in place, fix an L bracket to the under side of the top rail as a stop support to
the bath centre panel (see g 1 E).
Fit the end panel to the side panel using the angled brackets which are screwed at the
pre-marked positions (see g 1 D). Fit the two L brackets to the wall approximately
100mm from the floor level where the back of the side and end panel final position will be
(see g 1 F). Slide the assembled panels onto the keku clips from the end until they
positively engage.
NOTE: DEPENDING ON TILING, PANELS MAY NEED TO BE TRIMMED FOR A BETTER FIT TO THE WALL.
x 28
C x 1C x 1
C x 3 C x 3 C x 3
D x 2
B x 1
F x 2
COMPONENT IDENTIFICATION
