5. Connect to the server
Upon D60 implementation at the client, UV Smart qualied personnel shall connect UV Soft to the client’s network.
7. Connect with a D60
A connection between UV Soft and a D60 can take place when the following steps have been performed:
- UV Soft and the D60 are connected to the same network
- The D60 has been added within UV Soft with the same Unit code that has been entered into the D60 network settings
- Firewall does not block the communication port

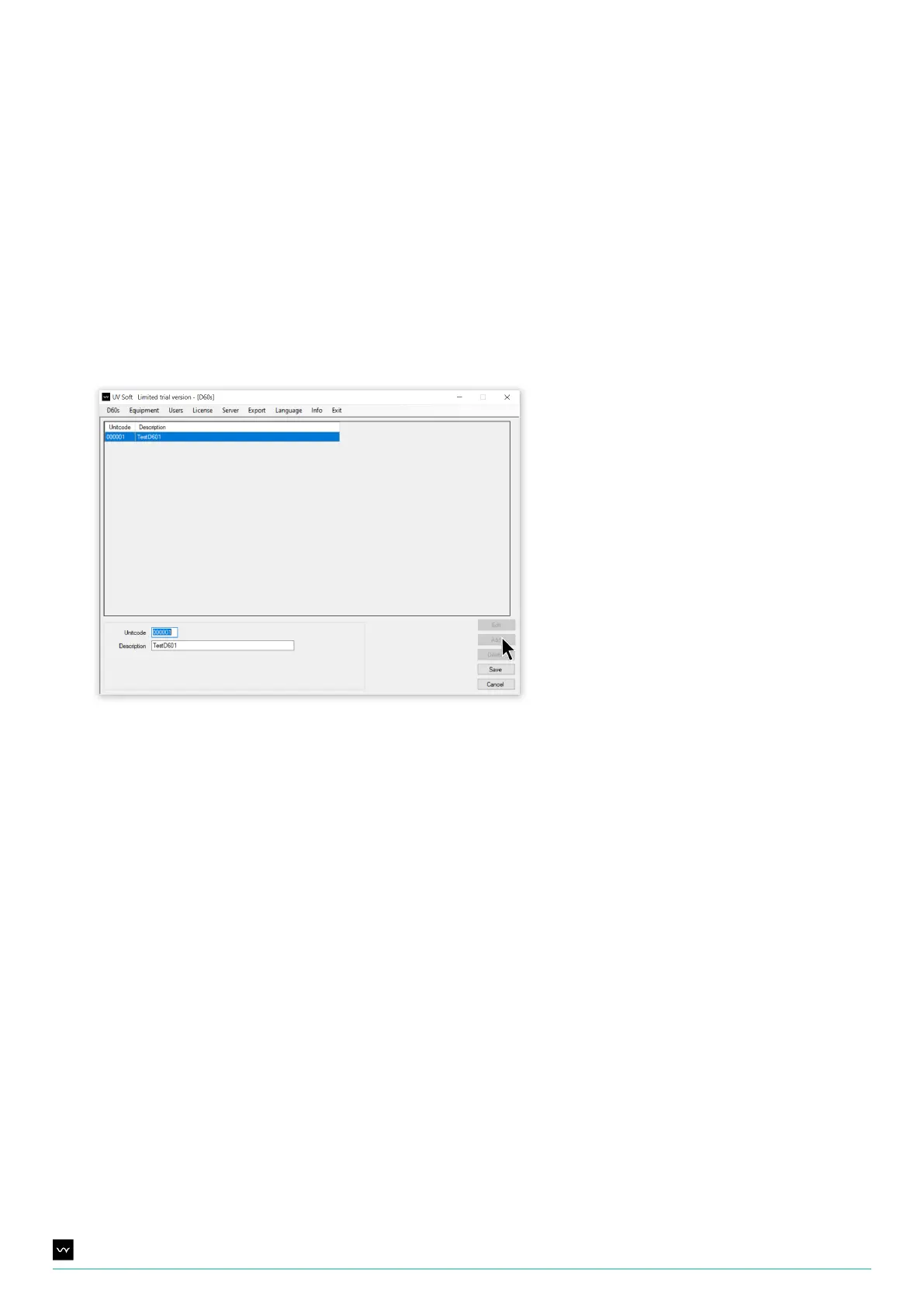

6. Add a D60
Navigate to the D60-tab. Click “Add” and enter the following credentials:
Unit code
Description
A 6-digit code identical to a D60. This code is used to establish the connection between UV Soft and the
D60. A user can pick a unit code according to their own preference
The description briey describes the D60. For example: “D60 - Amsterdam Hospital - Wing X’
Click “Save”.
