NSTALLATION LAYOUT

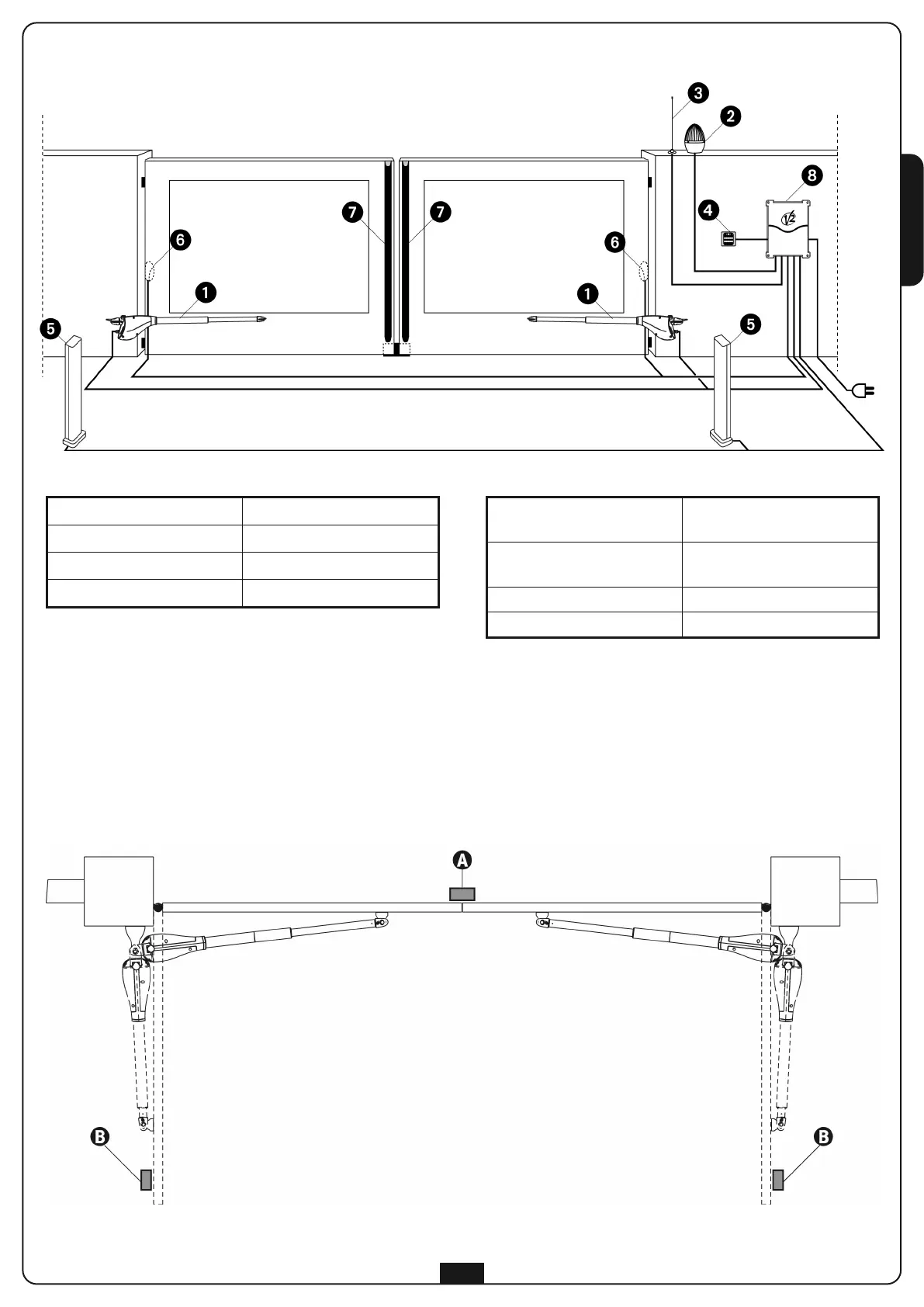

CALYPSO actuator
cable 4 x 1 mm
2
Blinker
cable 2 x 1,5 mm
2
Aerial
cable RG-58
Key or digital selector
cable 2 x 1 mm
2
Internal photocells
cable 4 x 1 mm
2
(RX)
cable 2 x 1 mm
2
(TX)
External photocells
cable 4 x 1 mm
2
(RX)
cable 2 x 1 mm
2
(TX)
Safety edge (EN 12978)
-
Control unit
cable 3 x 1,5 mm
2
PREPARATORY STEPS
The new series of actuadors CALYPSO, has been devised to serve gates up to 500 Kg with leaf up to 3 meters wide (look at the table
technical data). Before proceeding with the installation, please make sure that your gate opens and closes freely, and that:
• Hinges and pins are in optimum condition and properly greased.
• No obstacles are within the moving area.
• There is no friction with the ground or between the leaves.
• Your gate shall be equipped with central
and side stops, which are fundamental for the good system operation.
