Vacon NXP series Quick Guide

6

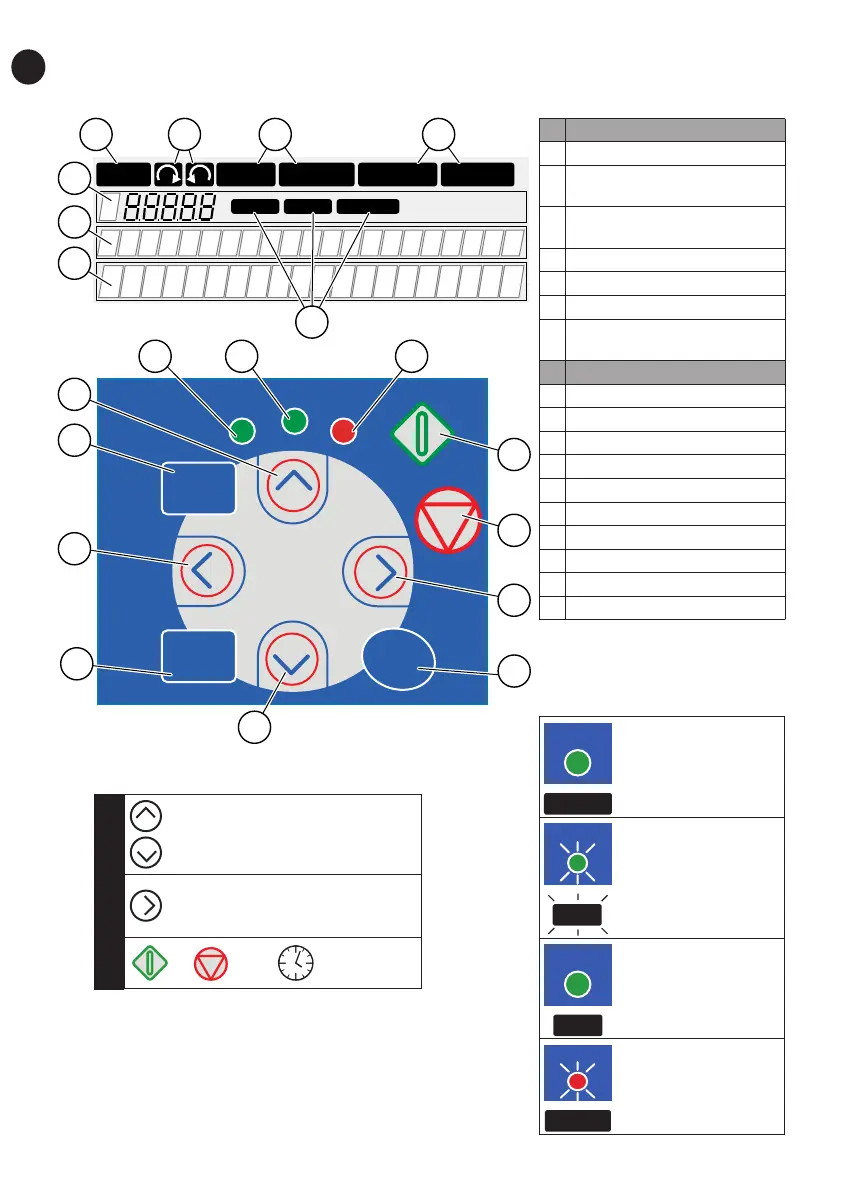

CONTROL PANEL AND KEYPAD
Selecting the keypad as the control place:
1. ‘M3 Control Keypad Menu’
2.
3.
or 3 sec
A The text display
1 The indicators of status
2
The indicators of the rotation
direction
3
The indicators of alarm and
fault
4 The location indication
5 The description line
6 The value line
7
The indicators of the control
place
B The buttons of the keypad
8 The status LEDs
9 The Start button
10 The Stop button
11 The Menu button Right
12 The Enter button
13 The Browser button Down
14 The Select button
15 The Menu button Left
16 The Reset button
17 The Browser button Up
EN
STATUS (1, 8)
ready
READY
The AC power is
connected to the
drive, no active
faults.
run
RUN
The AC drive
operates.
run
RUN
The STOP button is
pushed and the drive
ramps down.
fault
FAULT
The AC drive is
stopped because
of dangerous
conditions.
A.
B.
1
4
5
6
2 1
7
3
READY
FAULTSTOP
RUN
Bus/CommKeypadI/O term
ALARM
reset
ready
run
fault
select enter
8 8 8
9
10
11
12
13
14
15
16
17

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
