CONNECTIONS 38

Sensor connections - digital interfaces

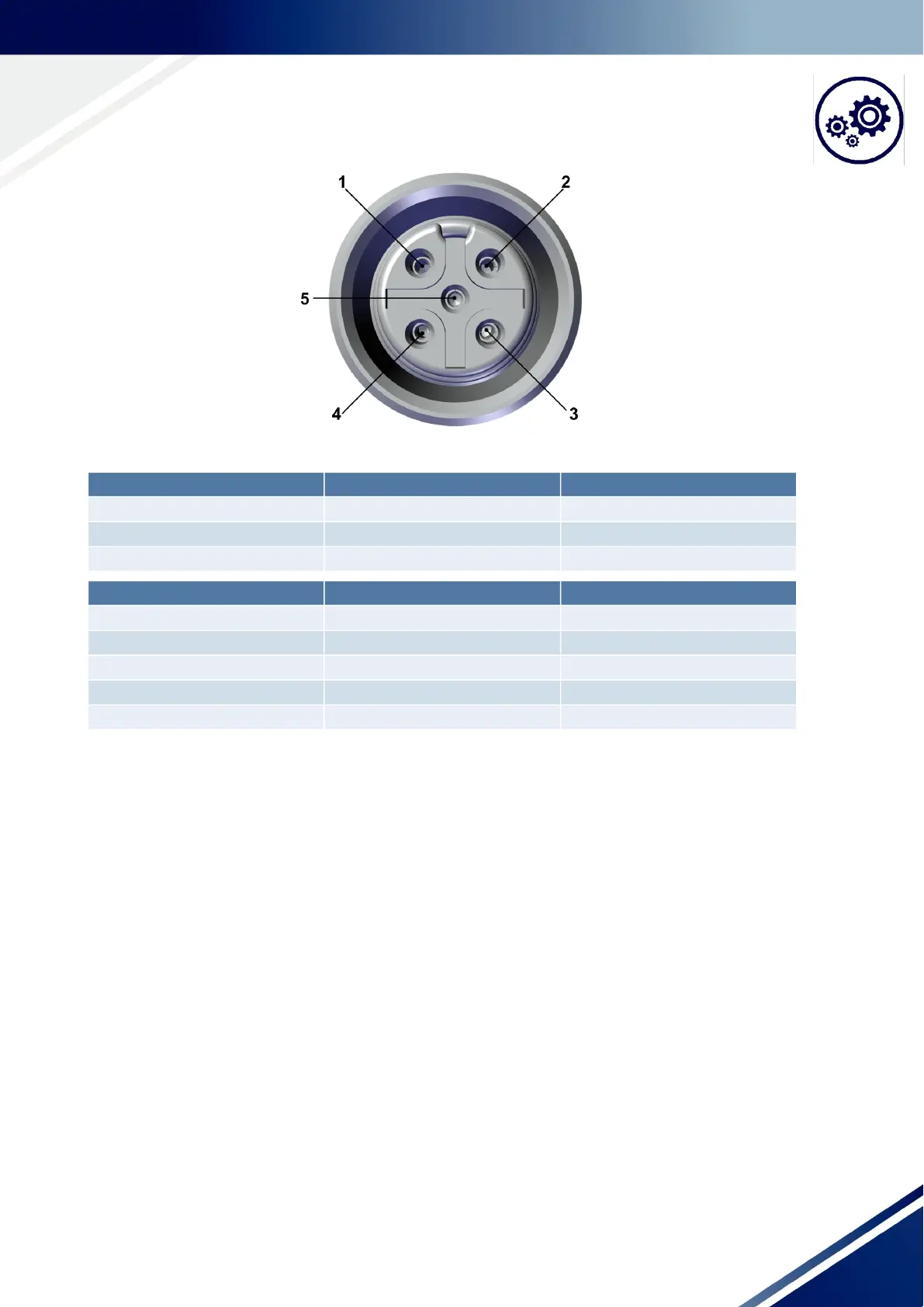

Fig. 8-5 Sensor connection digital (X20)
Type Description
Connection X20 M12, A coded, 5 pole, bushing
Plug cycles > 100
Contact AU (gold)
Pin Function Description
1 +U
b
Supply voltage +24VDC
2 DIN 8 Digital input 8
3 GND Supply ground
4 DIN 1 Digital input 1
5 n.c not connected
