CONNECTIONS 39


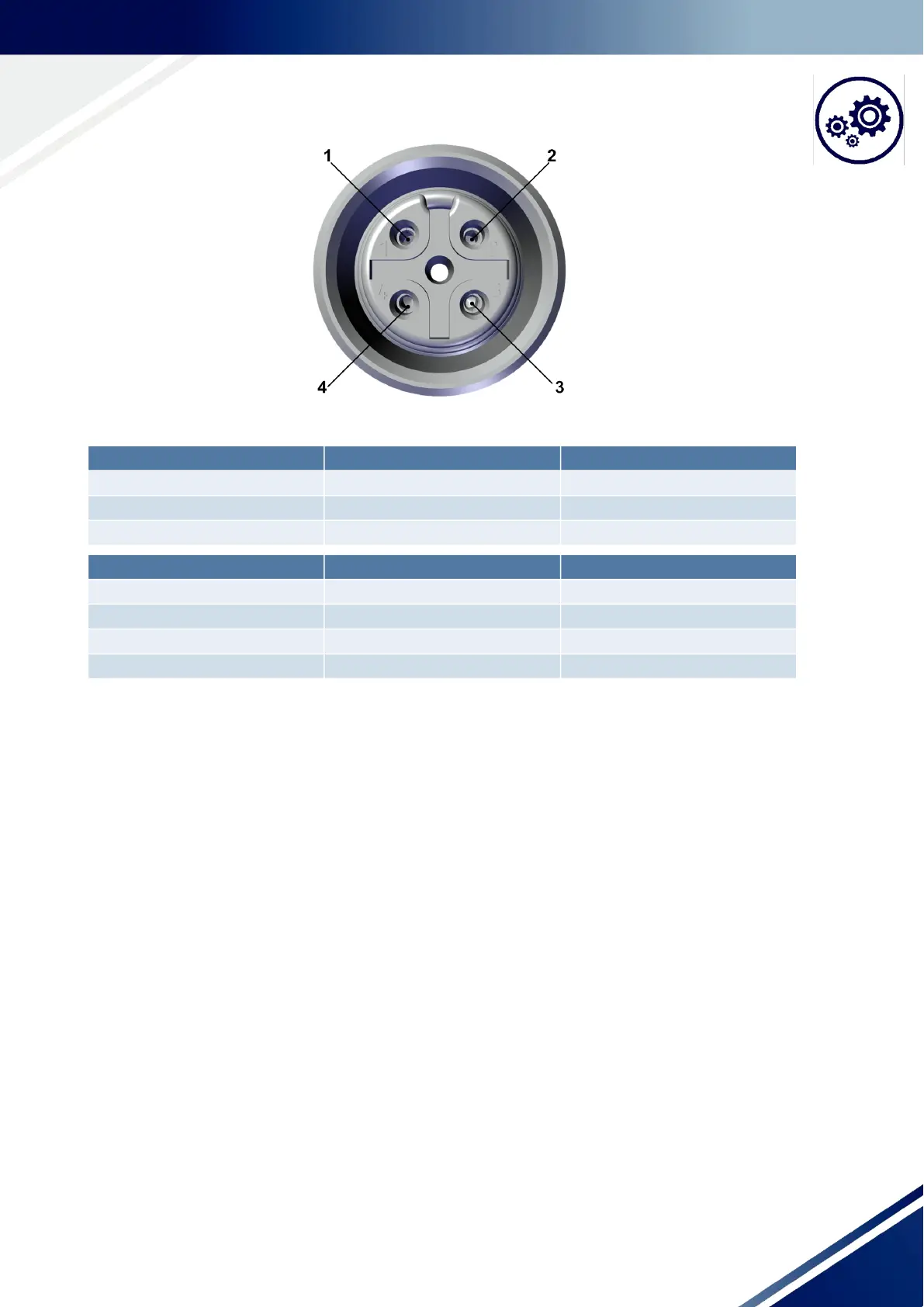

Fig. 8-6 Sensor connection digital (X21)
Type Description
Connection X21 M12, A coded, 4 pole, bushing
Plug cycles > 100
Contact AU (gold)
Pin Function Description
1 +U
b
Supply voltage +24VDC
2 DOUT 2 Digital output 2
3 GND Supply ground
4 DIN 2 Digital input 2
