CONNECTIONS 40

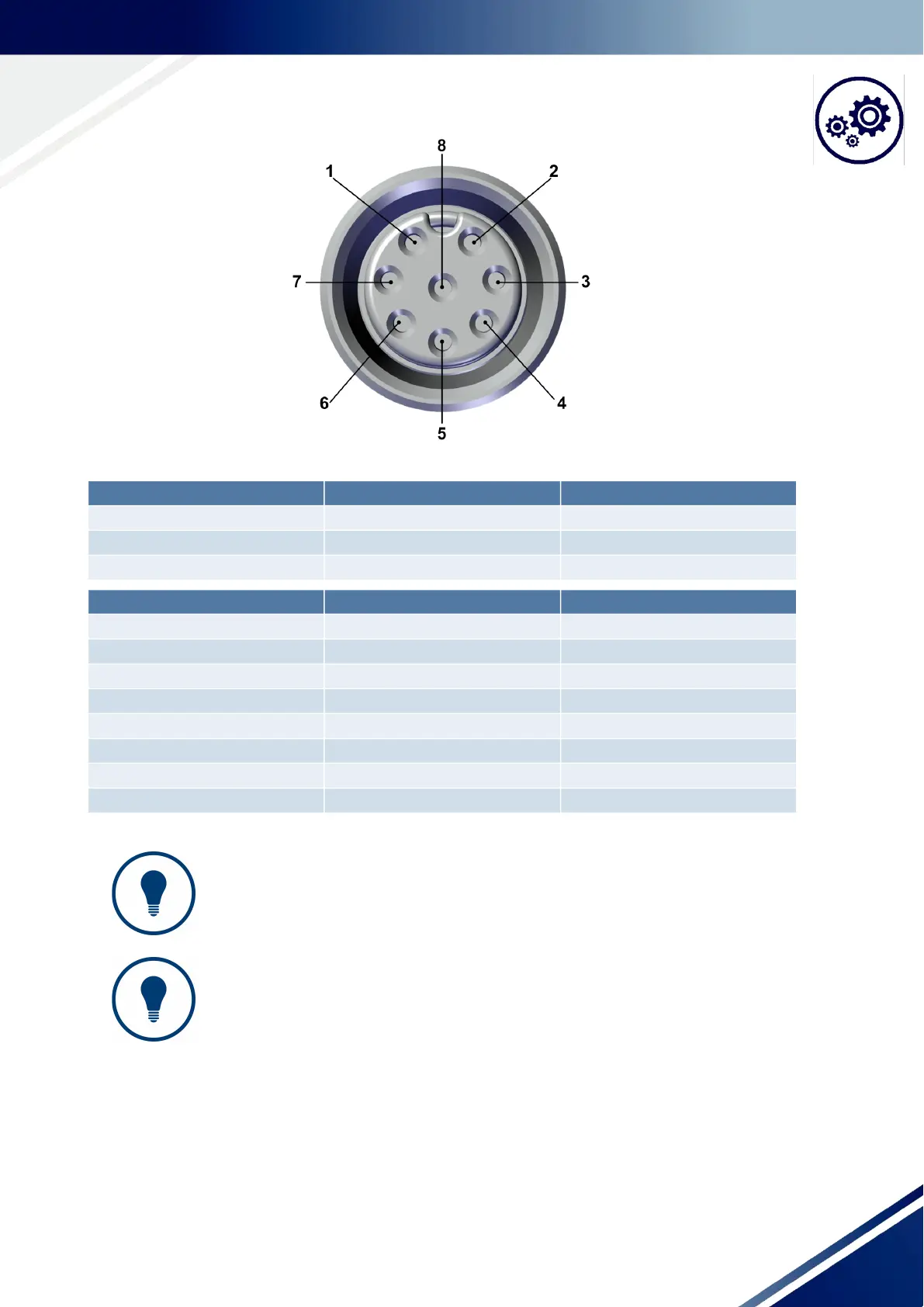

Fig. 8-7 Sensor connection digital (X22)
TIPS AND RECOMMENDATIONS!
Information about the connection X22 and half cycle communication
The connection is especially designed of the operation at the EMD4P. (The DOUT 1 for
half cycle communication is permanently reserved for the EMD4P)
TIPS AND RECOMMENDATIONS!
Information about the connection X22 for rail bus communication/PCB
The digital output DOUT 1 can be freely actuated through the rail bus by the stationary
PLC.
Type Description
Connection X22 M12, A coded, 8 pole, bushing
Plug cycles > 100
Contact AU (gold)
Pin Function Description
1 DIN 3 Digital input 3
2 DIN 4 Digital input 4
3 DIN 5 Digital input 5
4 DIN 6 Digital input 6
5 +U
b
Supply voltage +24VDC
6 DIN 7 Digital input 7
7 GND Supply ground
8 DOUT 1 Digital output 1
