Electrical installation
64 Installation instructions geoTHERM 0020051574_04
7

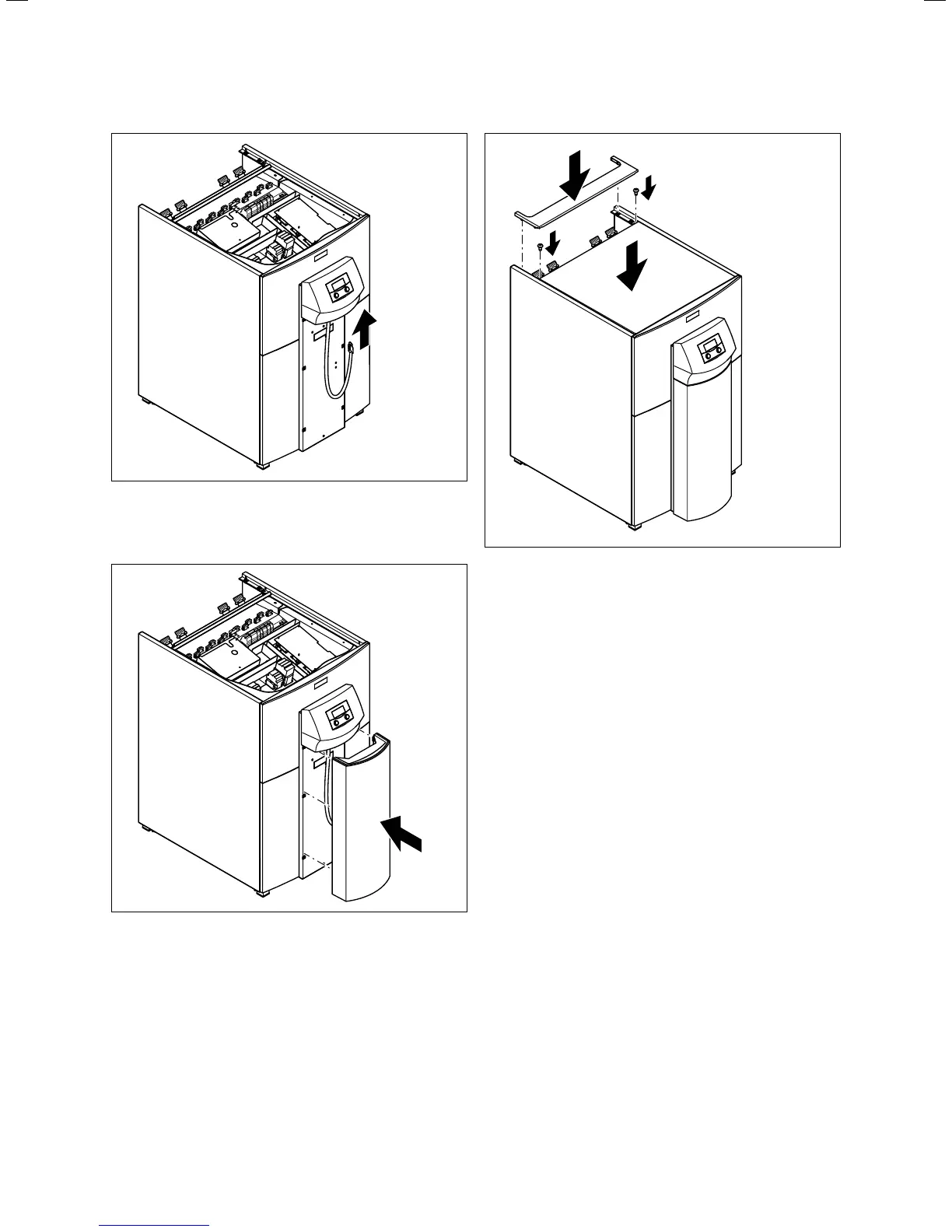

7.29 Connecting the eBUS line for the operating panel
> If you are not using the vrnetDIALOG accessory, connect
the supply line to the operating panel..
7.30 Fitting the cover column for the operating panel
> Push the cover column for the operating panel into the
clip holder on the mounting plate for the operating
panel.
3.
2.
2.
1.
7.31 Installing the upper cladding section
> Place the front upper cladding on the heat pump
and use two screws to secure this.
> Push the rear upper cladding for the pipe feed into the
clip holder.
