Section 5 - Setup MM147 - D4 Hot Melt Unit
72

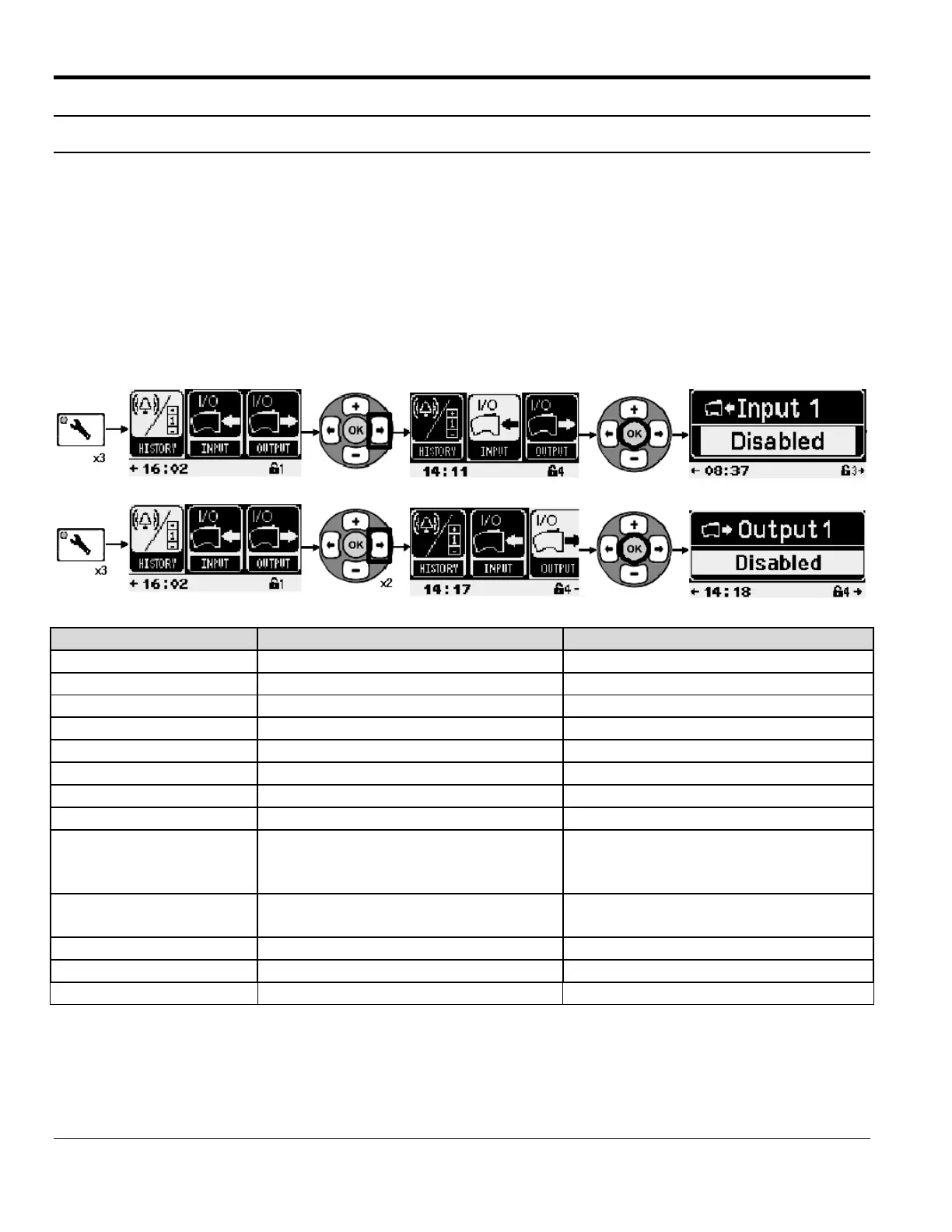

User Inputs and Outputs
There are 4 individual outputs that can be configured to control remote devices as set up by the user. An output relay
will turn on when the conditions of the selected feature are met. For example, if Output #1 is programmed for “System
Ready”, the output relay will energize when the control reaches temperature and is ready to glue. See the chart
below for user selectable output features.
There are also 4 individual inputs that can be configured to control something on the hot melt control when the control
receives an dry contact input. For example, if Input #3 is programmed for “Pump On/Off”, the pump will remain off
until input #3 receives a signal for it to turn on. This can be used to remotely control the glue pump.
See “Connections” in Section 4 - Installation for a detailed description of these features.
This parameter can be accessed in Password Level 3 or higher.
Inputs 1-4 Result when Input is ON Result when Input is OFF
Disabled None None
Hose & Gun #1 On/Off Enables the heaters for Hose & Gun #1 Disables the heaters for Hose & Gun #1
Hose & Gun #2 On/Off Enables the heaters for Hose & Gun #2 Disables the heaters for Hose & Gun #2
Hose & Gun #3 On/Off Enables the heaters for Hose & Gun #3 Disables the heaters for Hose & Gun #3
Hose & Gun #4 On/Off Enables the heaters for Hose & Gun #4 Disables the heaters for Hose & Gun #4
Hose & Gun #5 On/Off Enables the heaters for Hose & Gun #5 Disables the heaters for Hose & Gun #5
Hose & Gun #6 On/Off Enables the heaters for Hose & Gun #6 Disables the heaters for Hose & Gun #6
All Heaters On/Off Enables the heaters for all zones Disables the heaters for all zones
Pump On/Off Enables the pump (pump must also be
enabled using the Pump On/Off key, or
by setting Automatic Pump Mode to ON)
Disables the pump
Auto Setback/Standby Resets the Auto Setback/Standby
Timeout timer
Allows the unit to enter Setback/Standby
mode if Timeout timer is exceeded
Setback Puts the control into Setback mode Takes the control out of Setback mode
Control Power Off Puts the control in Standby mode Takes the control out of Standby mode
Melter On/Off Enables the tank heaters Disables the tank heaters
