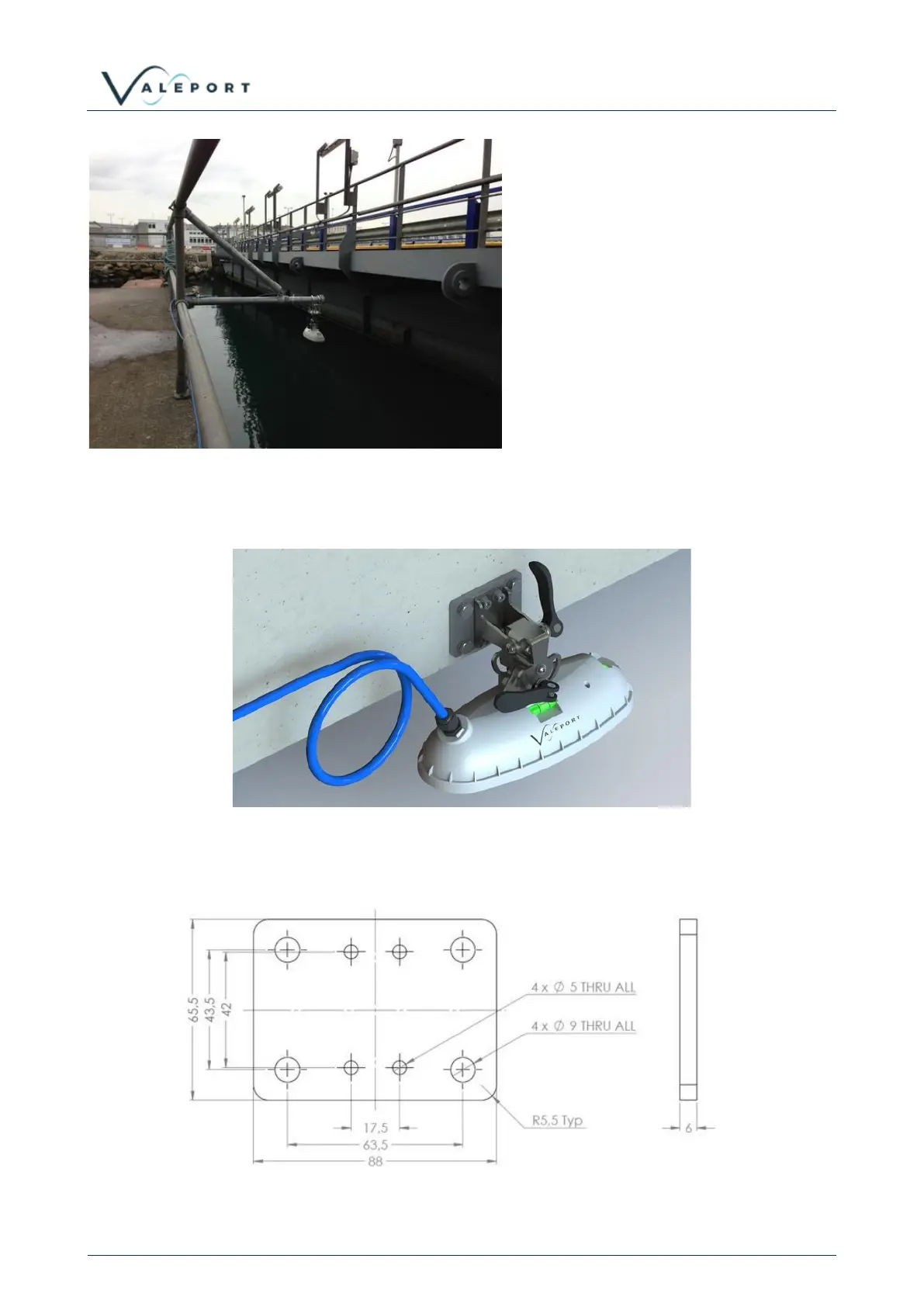

See example of boom constructed from
standard scaffolding parts and attached to
existing railing structure
2.3.2 Direct Mounting
The clamp can be removed and the stainless-steel adaptor plate fitted directly to a mounting surface if
required. The diagram below gives the dimensions of the adaptor plate in millimetres.
