Valeport TideMaster - 10.6 miniCT; 10.7 3 m Y Lead (RS232)

Section 10 | Wiring Information
Page | 53
© 2021 – Valeport Ltd
10.6 miniCT
END 1:
MiniCT Sensor
END 2:
6Way UTS -UTS6JC10E6P
FUNCTION
CONNECTOR
PIN
CONNECTOR
PIN
6 WAY MALE LINE
CONNECTOR
MCIL6M
4
6 WAY UTS -
UTS6JC10E6P
A
V+ Supply to MiniCT
6
B
GND Supply to MiniCT
3
C
RS232 Out to MiniCT
2
D
RS232 In from MiniCT
1
E
MiniCT 232 Gnd
F
Screen

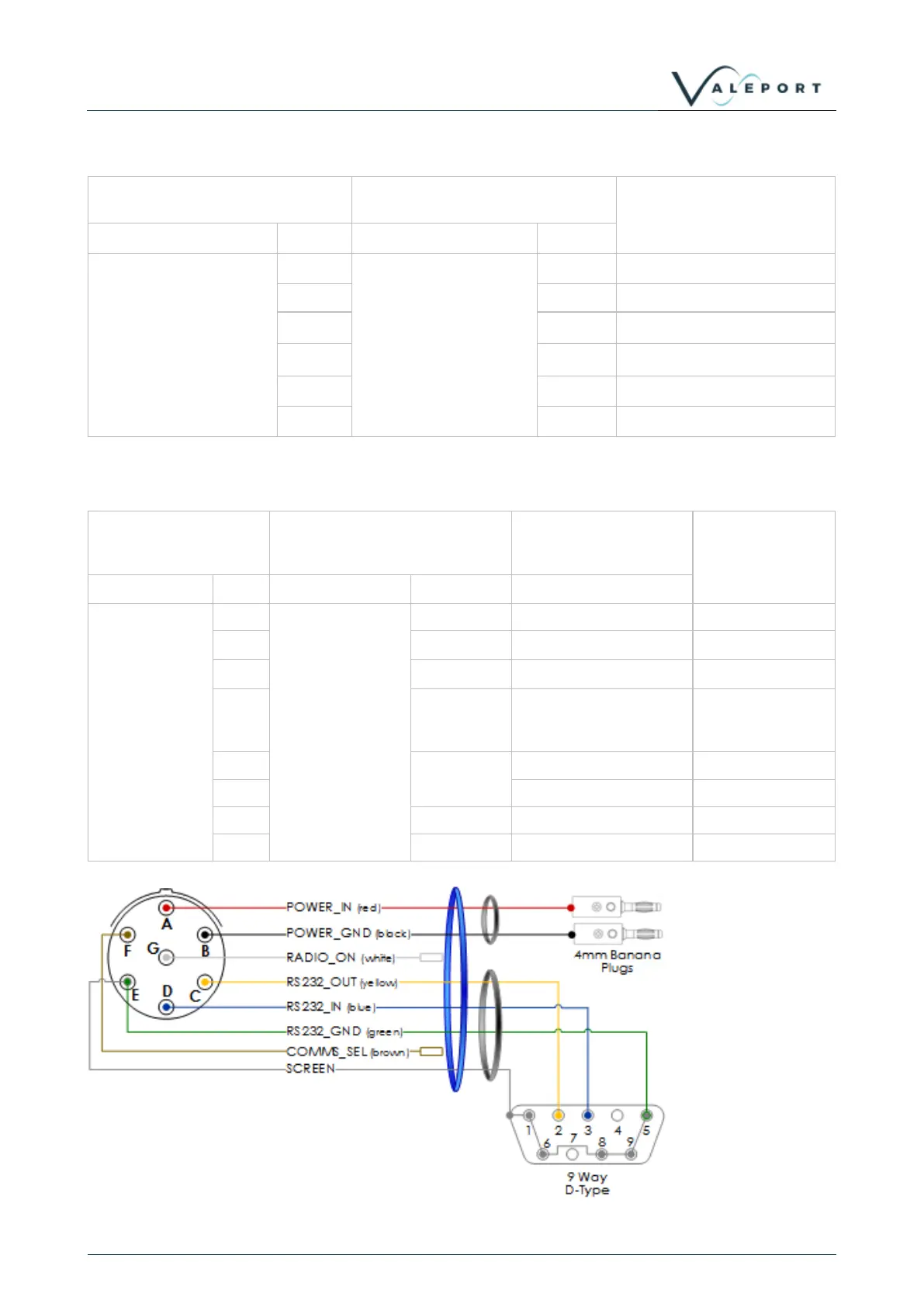

10.7 3m Y Lead (RS232)
END 1:
7 Way UTS Connector
(red ring)
END 2:
9 WAY D-TYPE
END 3:
BANANA PLUGS
FUNCTION
CONNECTOR
PIN
CONNECTOR
PIN
CONNECTOR
7 Way
NC7CF10
E
9WAY D-SOCKET
WITH HOOD
1,5,6,8,9
RS232_GND
D
3
RS232_IN
C
2
RS232_OUT
E
Connect
Screen to
Shell
SCREEN
A
Red 4mm Banana plug
POWER_IN
B
Black 4mm Banana plug
POWER_GND
F
COMMS_SEL
G
RADIO_ON
