Common Generator/Accessory Setups

4-4 Force 2 User’s Guide

Common Generator/Accessory Setups

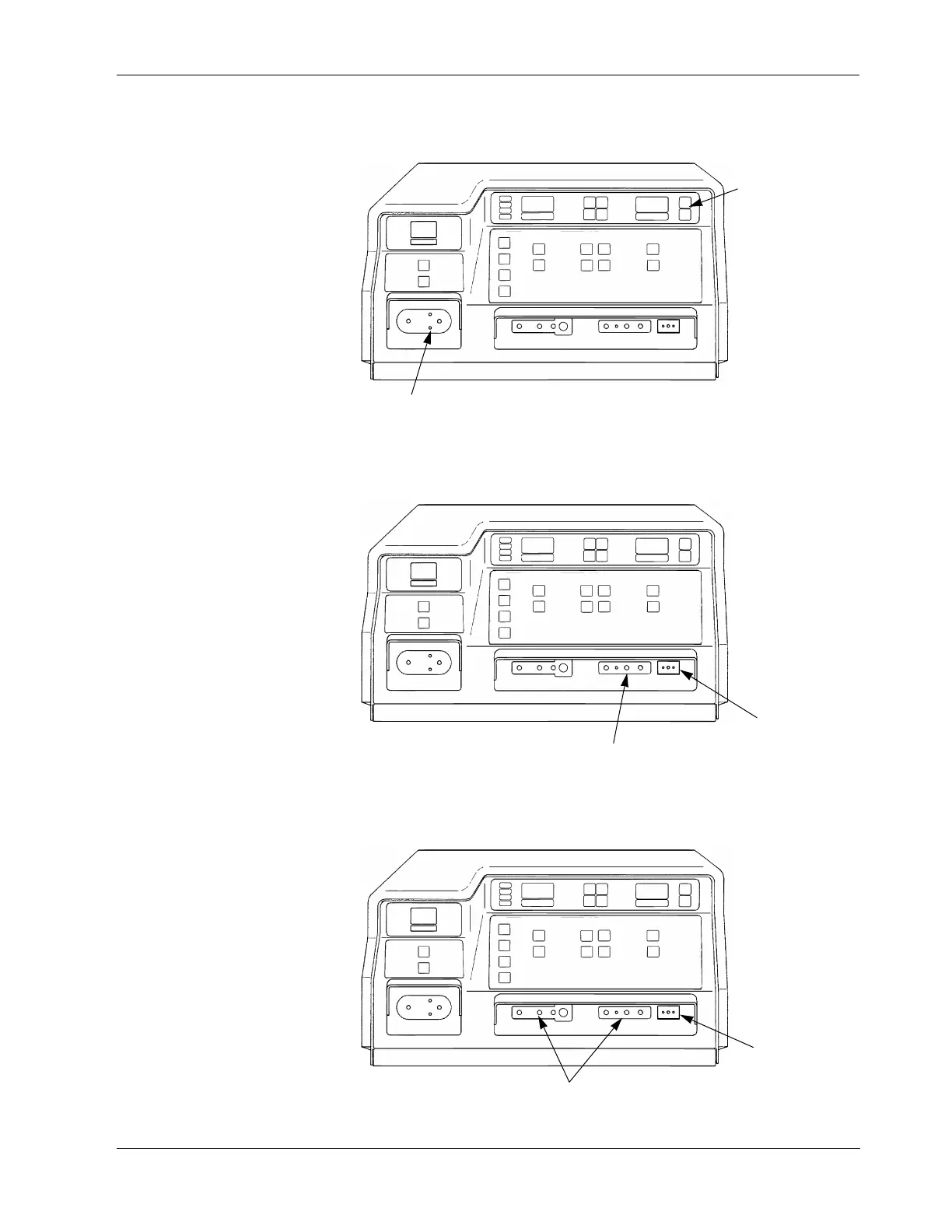

Microbipolar Output

Monopolar Handswitching Output

Simultaneous Coag

REM indicator

illuminates but does

not affect bipolar

operation.

Bipolar Handswitching or

Footswitching Forceps

Patient Return

Electrode

Handswitching Pencil/Forceps

or Power Control Pencil

Patient Return

Electrode

Handswitching Pencil
