Valmet MCA - Page 14

A
B
D
1xD if
Cs>8%
Min2xD
D
1xD if
Cs>8%
Min2xD
Measuring line at a 90° angle
towards the pump axis.
Measuring line parallel to
the previous horizontal pipe.

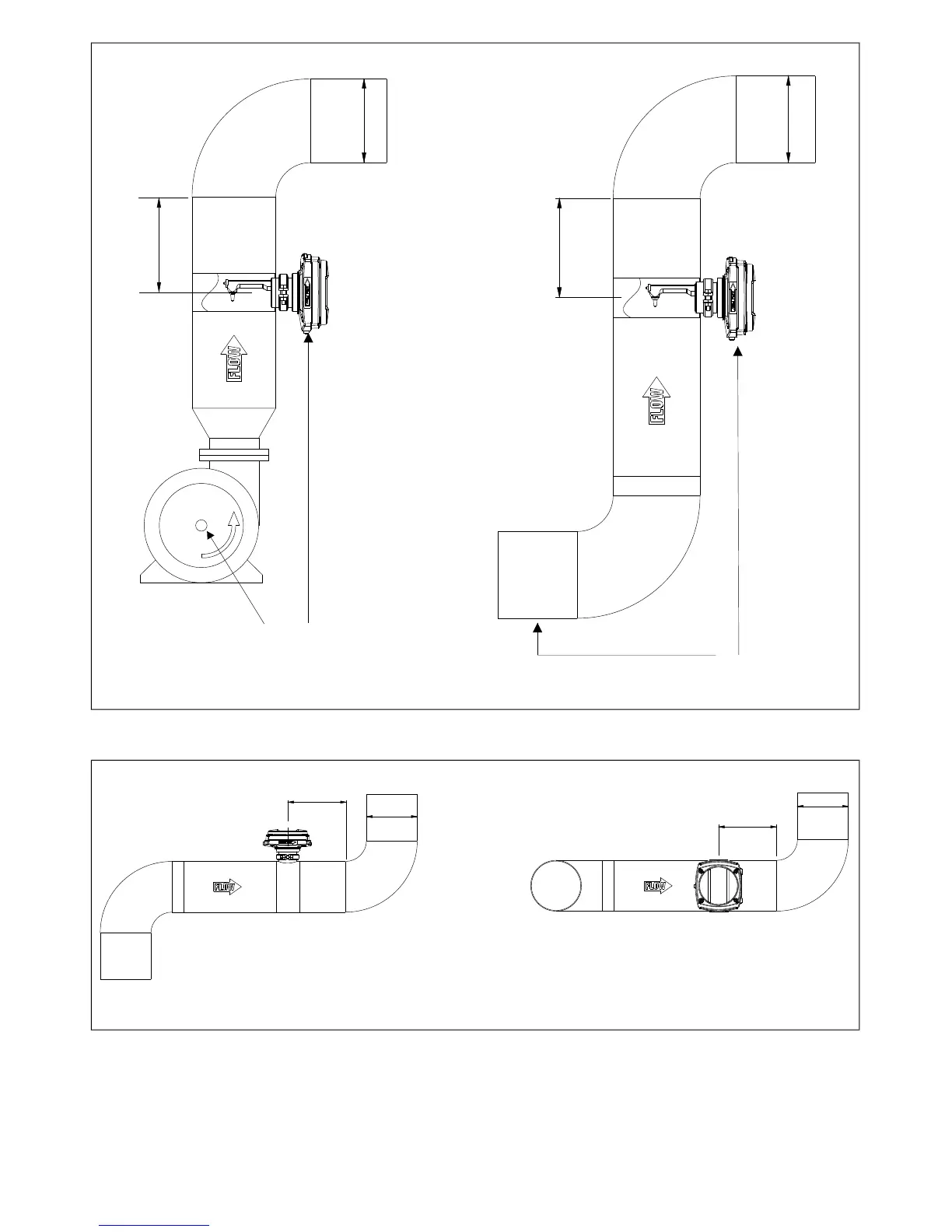

Fig. 1. Valmet MCA-F Installation on a vertical pipe: A. after a pump, B. after a horizontal pipe.
A
B
D
D
Min2xD
1xD if
Cs>8%
Min2xD
1xD if
Cs>8%
If the section of horizontal pipe preceding the
sensor is >10xD, then the sensor is installed
with its electronics casing on side.
Fig. 2. Valmet MCA-F Installation on a horizontal pipe: A. after a vertical pipe, B. after a bend in the pipe.
Installation & Owner’s manual OUL00298 V2.3 EN
14
Valmet Mircowave Consistency Transmitter
