Valmet MCA - Page 15

D
D
A
B
1xD if
Cs>8%
Min2xD
1xD if
Cs>8%
Min2xD
Measuring line at a 90° angle
towards the pump axis.
Measuring line parallel to
the previous horizontal pipe.

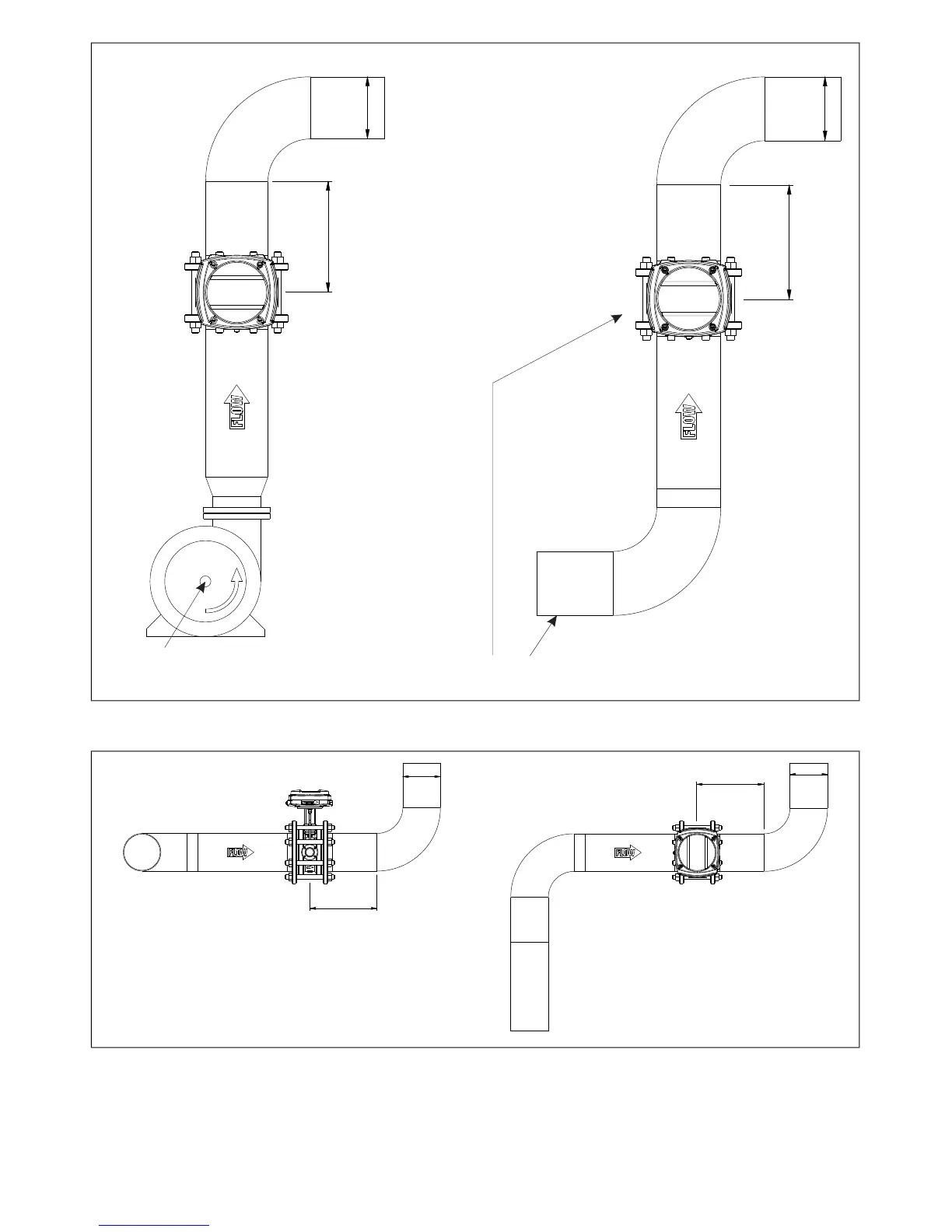

Fig. 3. Valmet MCA-FT Installation on a vertical pipe: A. after a pump, B. after a horizontal pipe.
D
A
B
D
Min2xD
1xD if
Cs>8%
Min2xD
1xD if
Cs>8%
If the section of horizontal pipe
preceding the sensor is >10xD, then
the sensor is installed with its electronics
casing on top.
Fig. 4. Valmet MCA-FT Installation on a horizontal pipe: A. after a bend in the pipe, B. after a vertical pipe.
Installation & Owner’s manual OUL00298 V2.3 EN
15
