INSTALLER GUIDE

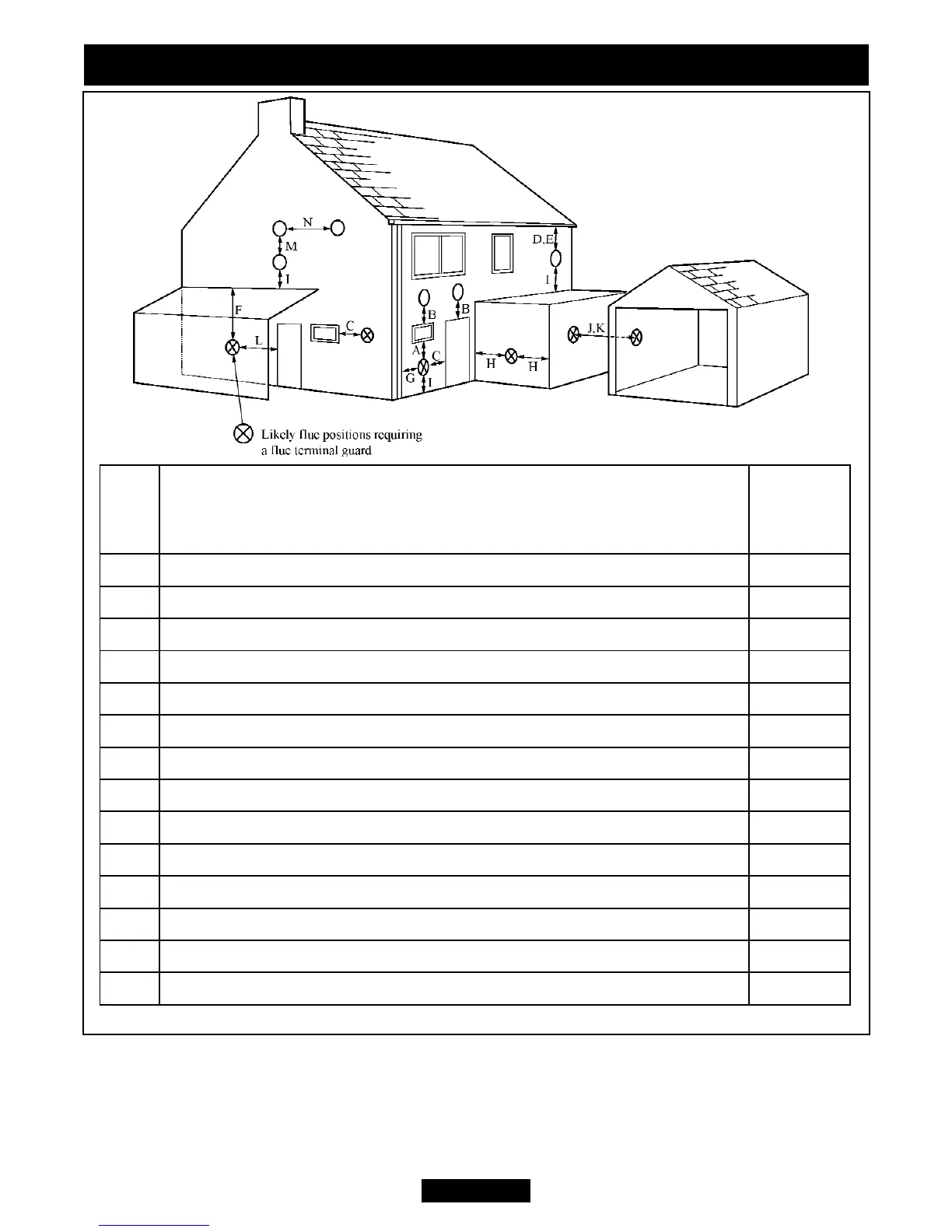

Key Terminal position
Minimum
distance
(mm)
A* Directly below an opening, air brick, opening window etc. 300mm
B* Above an opening, air brick, opening window etc. 300mm
C* Horizontally to an opening, air brick, opening window etc. 300mm
D Below gutters, soil pipes or drain pipes. 300mm
E Below eaves. 300mm
F Below balconies or car port roof. 600mm
G From a vertical drain pipe or soil pipe. 300mm
H** From an internal or external corner. 600mm
I Above ground, roof or balcony level. 300mm
J From a surface facing the terminal. 600mm
K From a terminal facing the terminal. 600mm
L From an opening in a car port (e.g. door, window) into dwelling. 1200mm
M Vertically from a terminal on the same wall. 1500mm
N Horizontally from a terminal on the same wall. 300mm
Figure 5.
Page 17
© Baxi Heating U.K. Limited 2010.
