12. CERAMIC PEBBLES INSTALLATION
This section is for models supplied with a ‘Pebble’ fuel effect only.
For ‘Coal fuel effect’ see section 11.
The ceramic fuel effect may cause staining / discolouration to decorative surfaces. It
is therefore advisable to protect decorative surfaces.

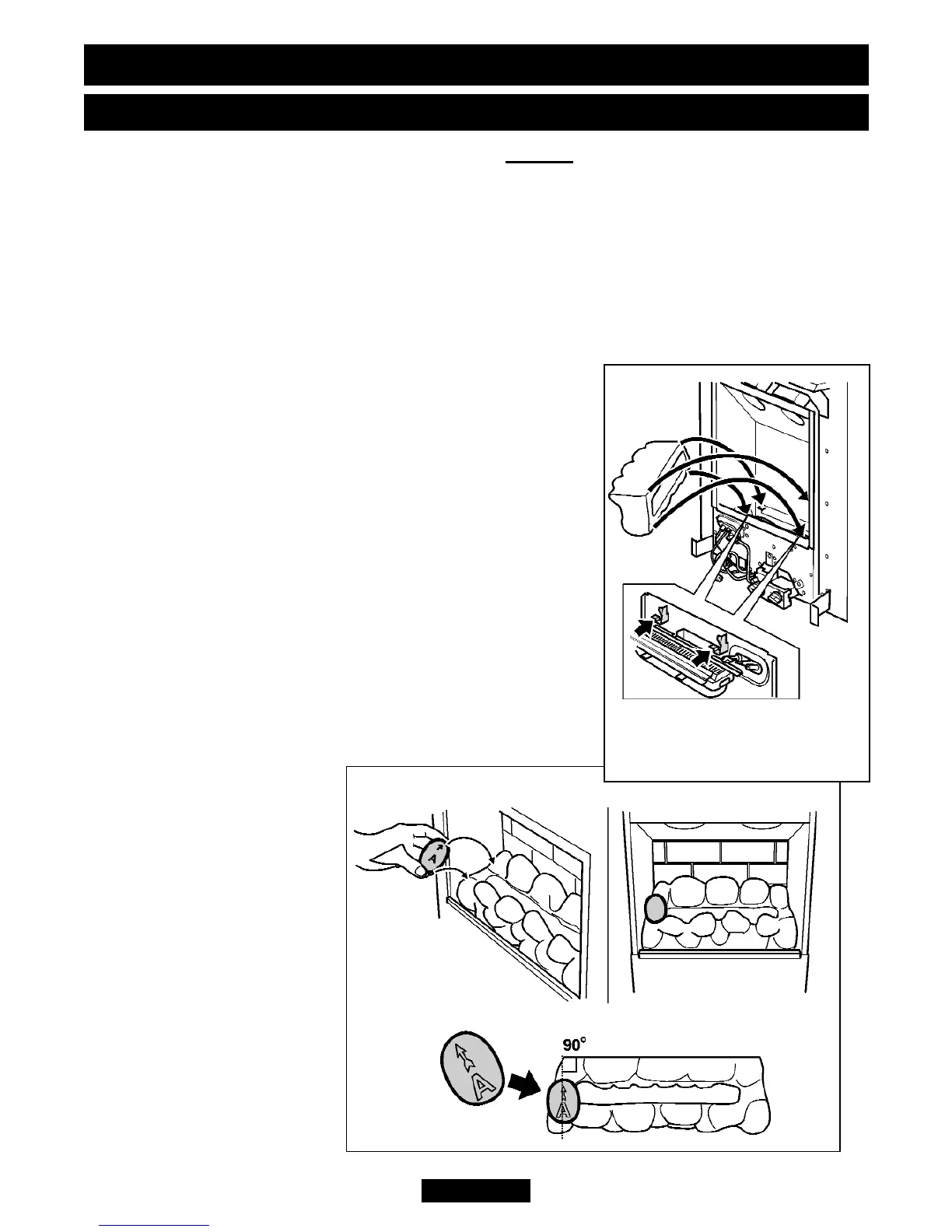

1. Fit the ceramic pebble base into the fire above the burner. The front of the ceramic
pebble base should locate on the horizontal faces but behind the vertical faces of the
two location brackets positioned at the front of the burner module (See figure 24).
The pebbles should be positioned so that the arrows
always point towards the back of the firebox. When
located into position the stem of each arrow should be at
90° to the rear of the firebox.
2. Hold pebble ‘A’ upright with the arrow pointing to the
top. Locate pebble ‘A’ as shown in figure 25.
INSTALLER GUIDE
Figure 25.
Figure 24. Ceramic pebble
base location
Page 31
© Baxi Heating U.K. Limited 2010.
