17. SERVICING & PARTS REPLACEMENT
Always turn off the gas and allow the appliance to cool completely before
commencing any servicing. (The inlet ‘T’ connector on this appliance incorporates
an isolating valve)
Always test for gas soundness after refitting the appliance.
This product uses a fuel effect, a burner compartment rear wall and gaskets
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous silicate
fibres. Excessive exposure to these materials may cause irritation to eyes, skin
and respiratory tract. Consequently, it is important to take care when handling
these articles to ensure that the release of dust is kept to a minimum. To ensure
that the release of fibres from these RCF articles is kept to a minimum, during
installation and servicing we recommend that you use a HEPA filtered vacuum to
remove any dust and soot accumulated in and around the fire before and after
working on the fire. When replacing these articles we recommend that the
replaced items are not broken up, but are sealed within a heavy duty polythene
bag, clearly labelled as RCF waste. RCF waste is classed as a stable, non-reactive
hazardous waste and may be disposed at a landfill licensed to accept such waste.
Protective clothing is not required when handling these articles, but we
recommend you follow the normal hygiene rules of not smoking, eating or
drinking in the work area and always wash your hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos
or asbestos related products.
17.1 To remove fascia.
Camden and Seattle models
Lift the fire front clear by lifting up and forward. This will
release the hanging brackets from the keyholes in the
fascia sides.
Sonnet and Ultimate models
Remove the bottom front casting.
Lift the fire front casting clear by lifting the fire front
casting up and forward. This will release the locating
screw heads at the back of the casting from the keyholes
in the fascia sides.
All Models
Remove the two screws securing the bottom of the
fascia to the sides of the convection box.
Raise the fascia to allow the retaining lugs at the top to
clear the slots in the convection box hood and then lift
clear (See figure 35).
INSTALLER GUIDE

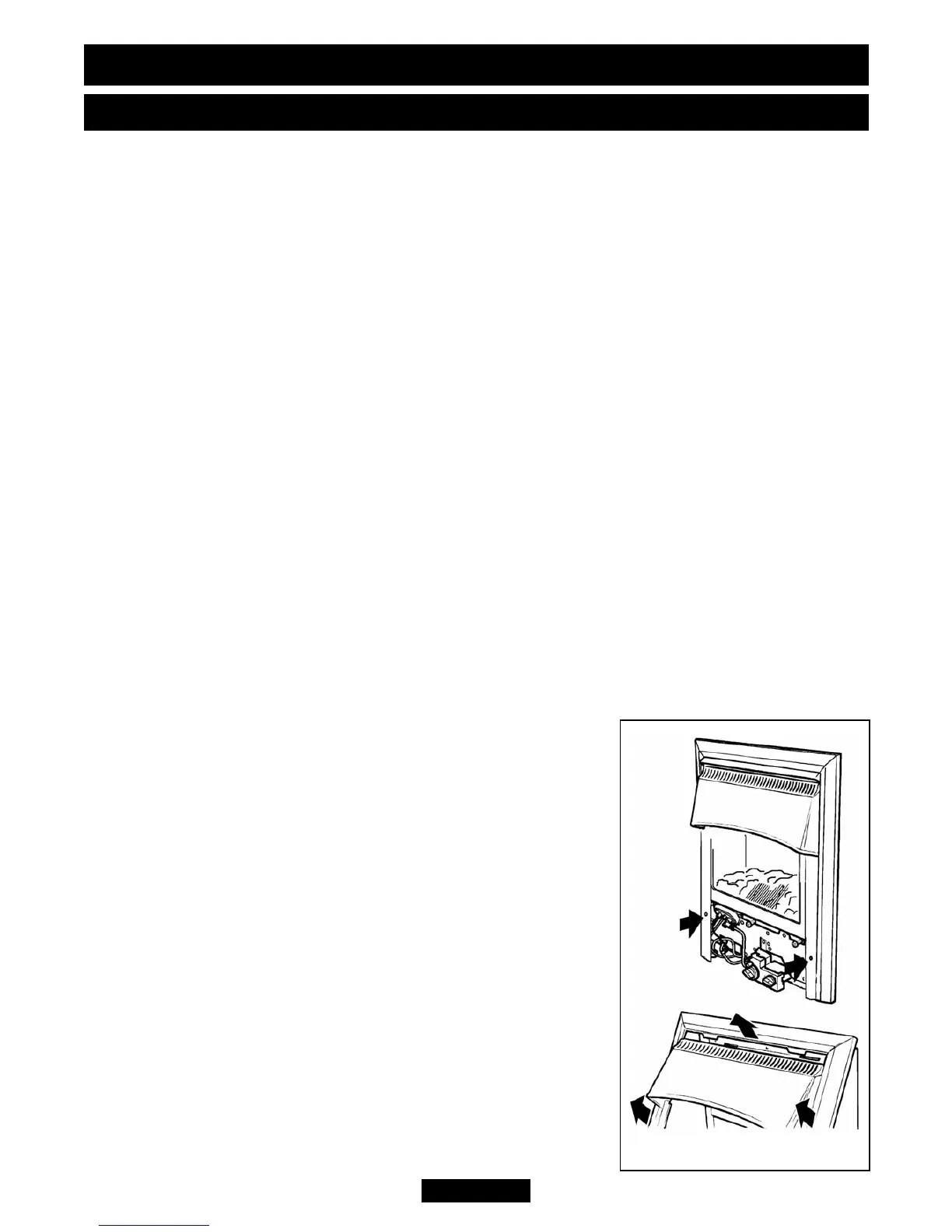

Figure 35. Fascia removal
Page 37
© Baxi Heating U.K. Limited 2010.
