17.2 To remove window unit.
Remove the fascia (See section 17.1).
Unscrew and remove the three spring-loaded window-
fixing screws and bushes from the base of the window
frame (See figure 36).
Gently swing the base of the window frame forward
while lifting the frame upwards. The window should lift
clear of the fire. Put the window in a safe place away
from your immediate work area.
17.3 To remove the ceramic fuel effect and rear wall.
Remove the fascia (See section 17.1).
Remove the window unit (See section 17.2)
Lift out the ceramic fuel effect.
Remove the rear wall by carefully sliding it upwards to
clear the retaining channel and then swinging the top
slightly forward.
17.4 To remove the complete burner module.
Remove the fascia (See section 17.1).
Remove the window unit (See section
17.2).
Lift out the ceramic fuel effect and rear
wall (See section 17.3).
Isolate the gas supply using the inlet ‘T’
connector on the appliance.
Unscrew the nut from the top of the inlet
‘T’ connector.
Detach the burner front cover by
unscrewing the 10 screws at the front of
the burner module shown in figure 37.
17.5 To remove the burner from the burner module.
Remove the complete burner module as in section 17.4.
Support the injector elbow and unscrew the pipe nut from its base.
The burner bracket is secured to the front cover by four screws. Remove these
screws.
The burner and its bracket can now be lifted clear of the module.
If replacing the burner unscrew the two nuts securing the burner bracket to the
burner. Remove the burner.
Replace in the reverse order.
INSTALLER GUIDE
Page 38
© Baxi Heating U.K. Limited 2010.

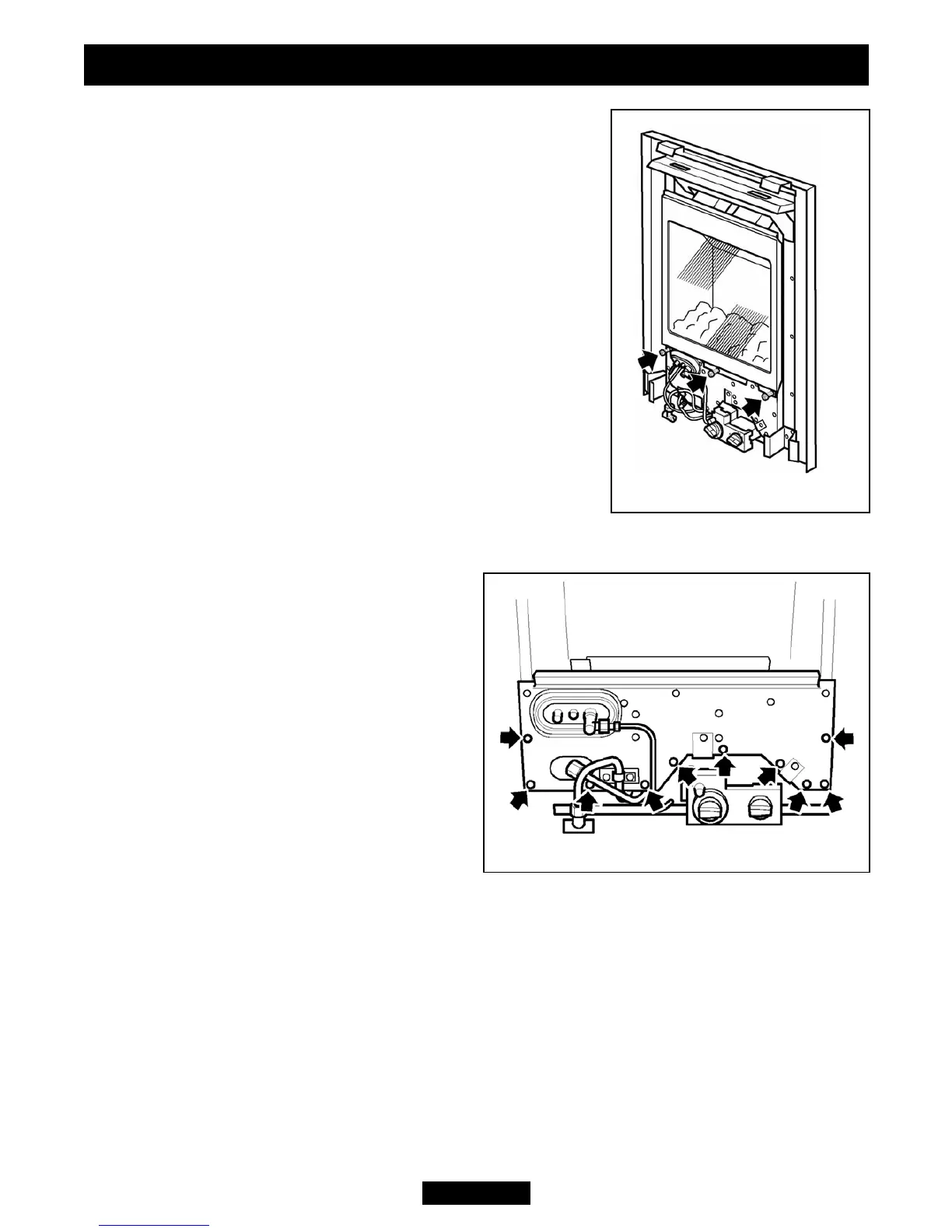

Figure 36. Window fixing
Figure 37. Burner module fixing screws.
