6. UNPACKING AND PRELIMINARY CHECKS
6.1 Unpacking.
1 Main fire assembly with fascia.
1 Ceramic fuel effect (Packed in the fire).
1 Nut & olive for 8mm inlet pipe.
1 Fire front / fire front casting set.
1 Flue unit.
1 Wall fixing template.
2 Fire retaining cables.
2 Eyebolts.
2 Fibre wall plugs.
2 No 6 self tapping screws.
8 Woodscrews.
8 Plastic wall plugs.
1 Length of flue sealing tape.
1 Literature pack.
1 Terminal guard (supplied flat).
6.2 Appliance disassembly.
Fascia removal (See figure 7).
Remove the two screws securing the bottom of the fascia
to the sides of the convection box.
Raise the fascia to allow the retaining lugs at the top to
clear the slots in the convection box hood and then lift clear.
Place the fascia in a safe place away from your immediate
work area.
Window and ceramic fuel effect removal.
Unscrew and remove the three spring loaded window fixing
screws and bushes from the base of the window frame (See
figure 8). Keep the screws and bushes in a safe place.
Gently swing the base of the window frame forward while
lifting the frame upwards. The window should lift clear of the
fire. Put the window in a safe place away from your immediate
work area.
Carefully remove the ceramic fuel effect in its packaging. The ceramic fuel effect
base is a single piece. The individual ceramic pieces are packed separately. Put them
in a safe place.

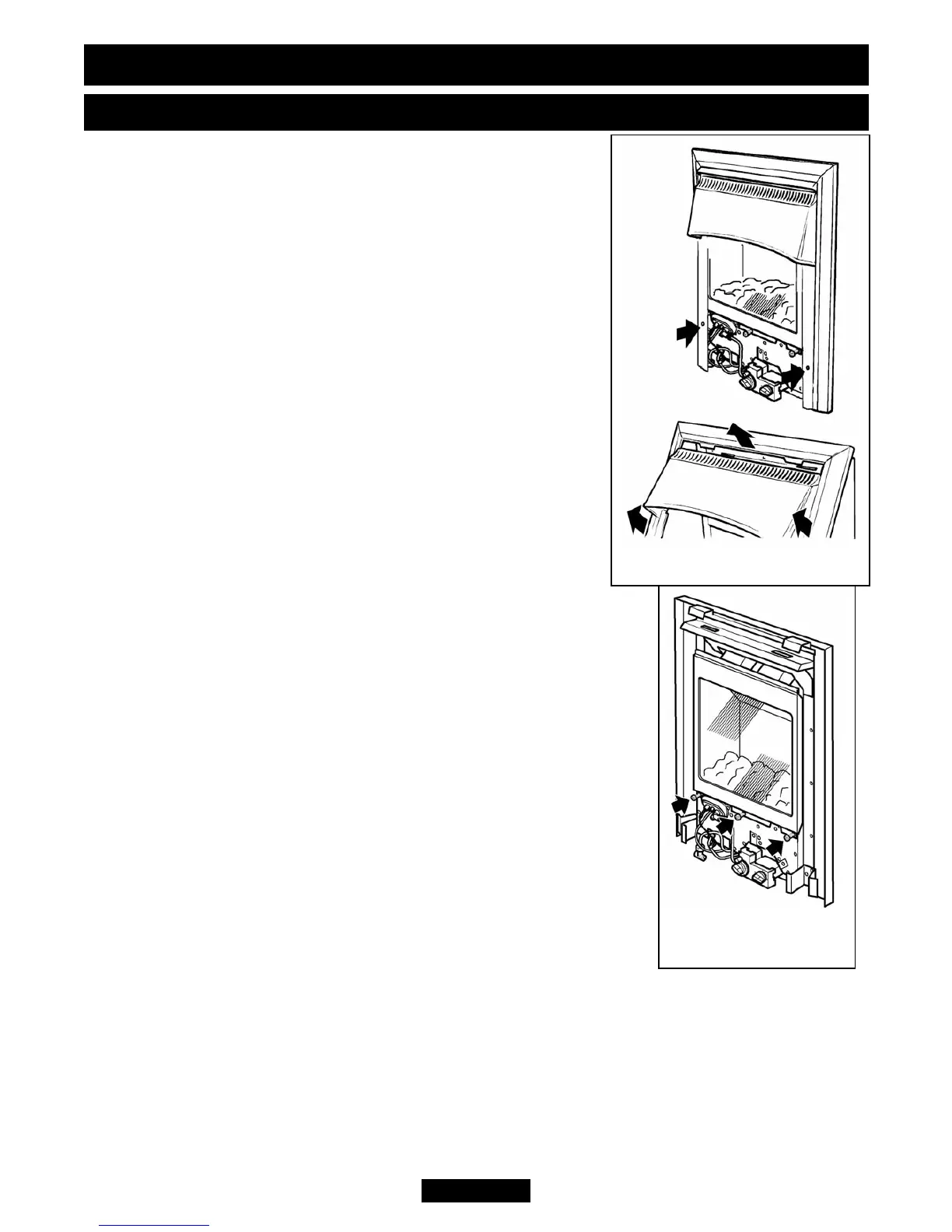

INSTALLER GUIDE
Figure 8. Window
removal
Figure 7. Fascia removal
Page 19
© Baxi Heating U.K. Limited 2010.
