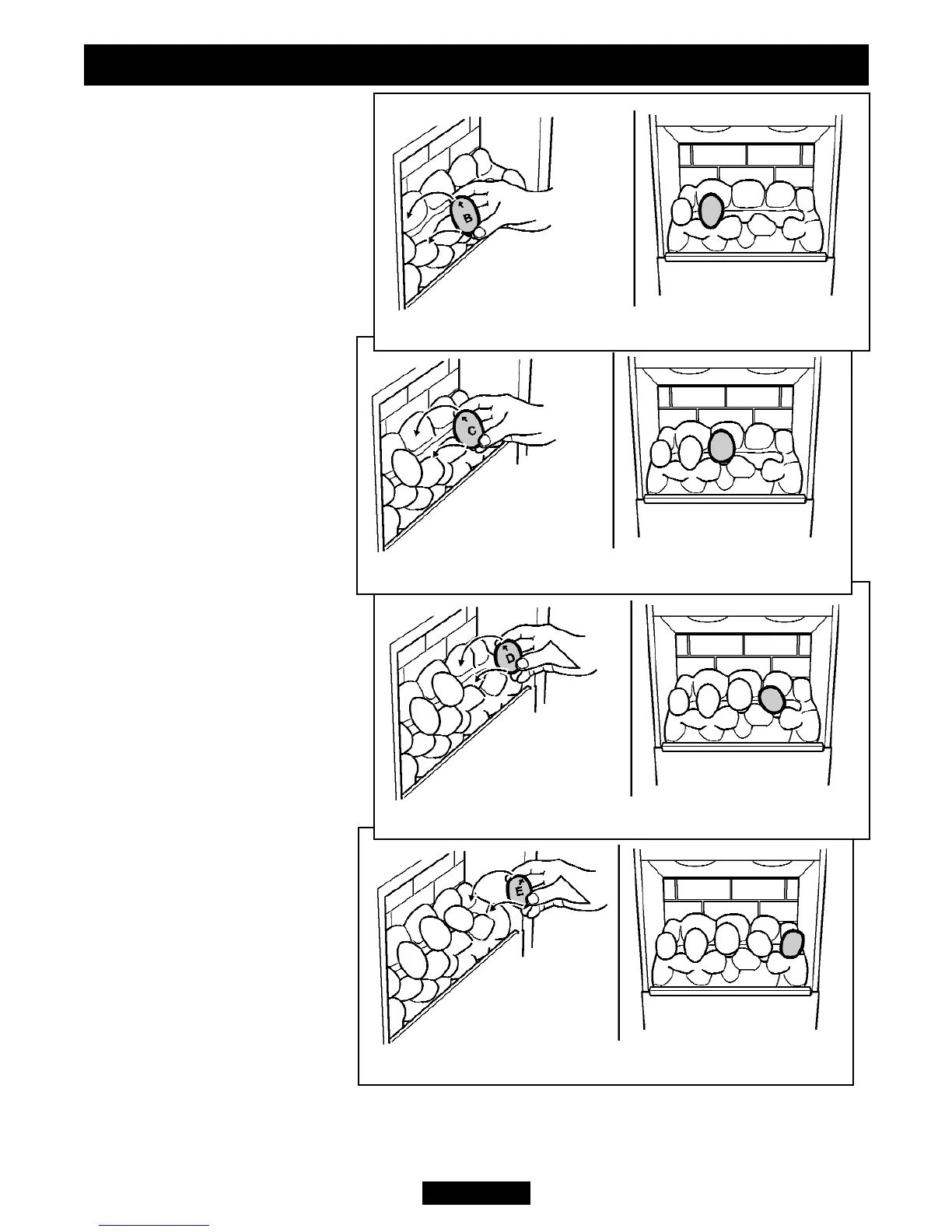

3. Hold pebble ‘B’ upright with
the arrow pointing to the top.
Locate pebble ‘B’ as shown in
figure 26.
4. Hold pebble ‘C’ upright
with the arrow pointing to the
top. Locate pebble ‘C’ as
shown in figure 27.
5. Hold pebble ‘D’ upright with
the arrow pointing to the top.
Locate pebble ‘D’ as shown in
figure 28.
6. Hold pebble ‘E’ upright
with the arrow pointing to the
top. Locate pebble ‘E’ as
shown in figure 29.
INSTALLER GUIDE
Page 32
© Baxi Heating U.K. Limited 2010.
Figure 29.
Figure 28.
Figure 27.
Figure 26.
