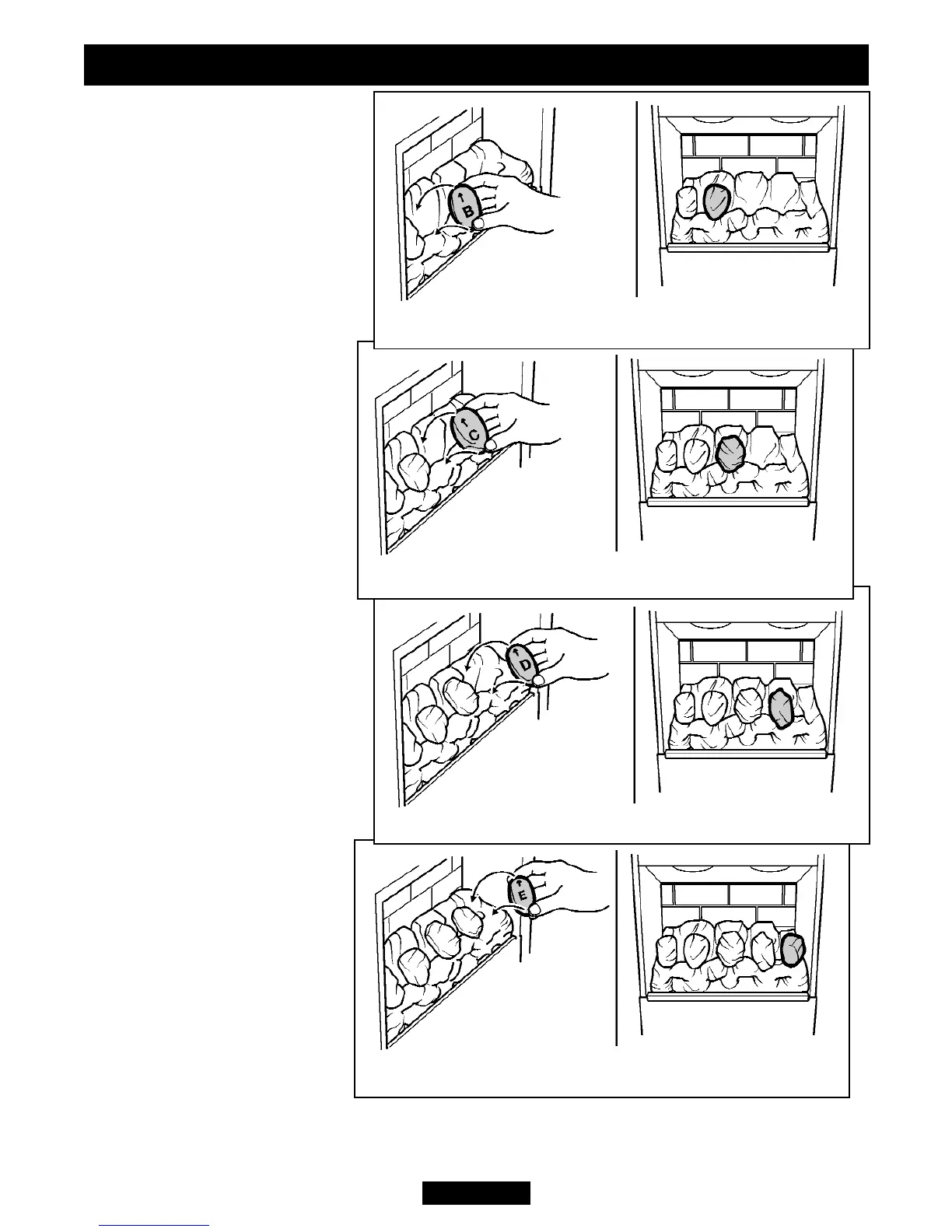

3. Hold coal ‘B’ upright with the
arrow pointing to the top.
Locate coal ‘B’ as shown in
figure 20.
4. Hold coal ‘C’ upright with
the arrow pointing to the top.
Locate coal ‘C’ as shown in
figure 21.
5. Hold coal ‘D’ upright with the
arrow pointing to the top.
Locate coal ‘D’ as shown in
figure 22.
6. Hold coal ‘E’ upright with
the arrow pointing to the top.
Locate coal ‘E’ as shown in
figure 23.
INSTALLER GUIDE
Page 30
© Baxi Heating U.K. Limited 2010.
Figure 23.
Figure 22.
Figure 21.
Figure 20.
