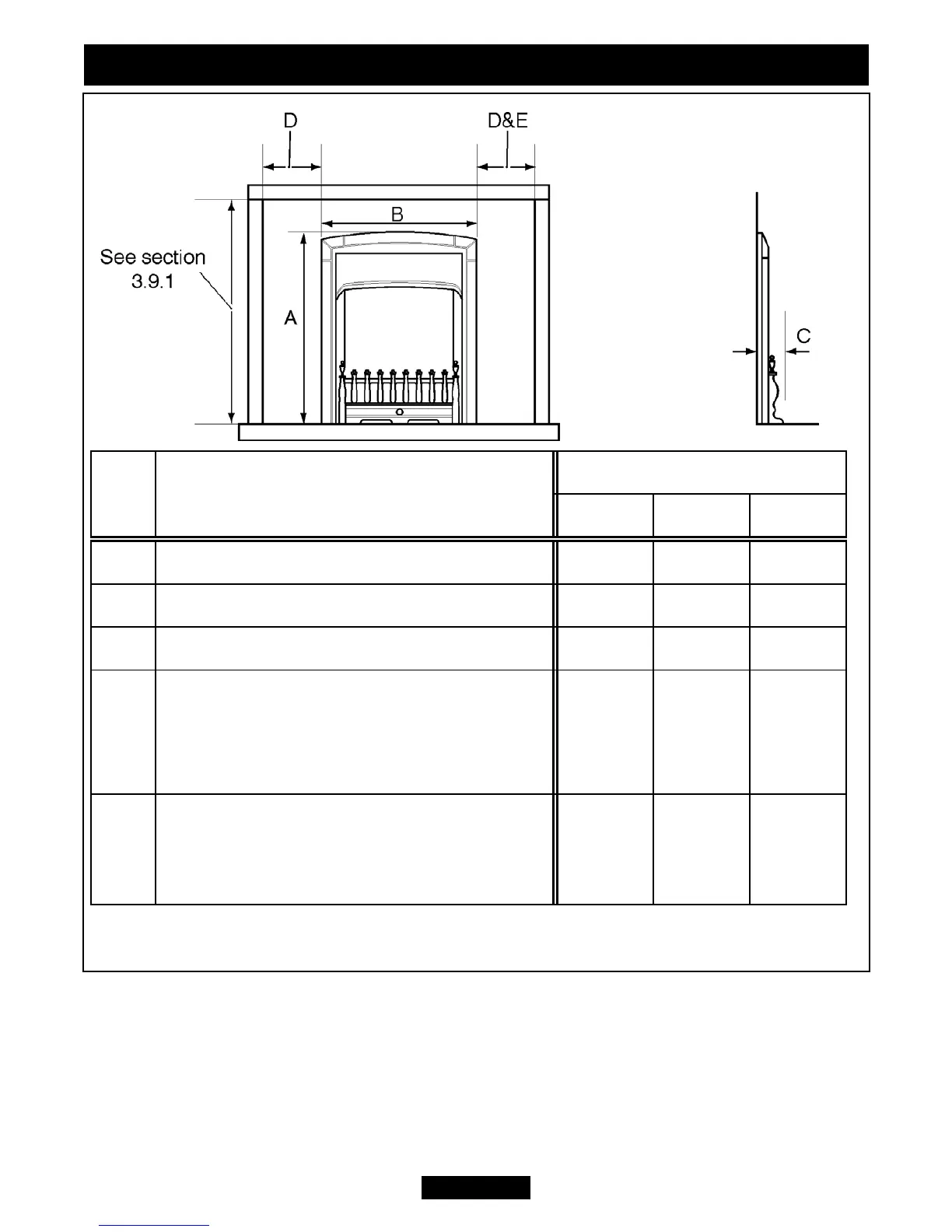

Figure 3. Appliance dimensions and clearances (The fascia may differ from that
shown and dimensions are subject to manufacturing tolerances)
Key Description
Model
Opulent Dream Heritage
A Appliance height (mm) 606 620 638
B Appliance width (mm) 518 560 515
C Appliance depth into room (mm) 85 88 51
D
Minimum mandatory clearance to
combustible surfaces projecting beyond
the front of appliance (mm).
108 108 108
E
Recommended clearance to non-
combustible surfaces for access
purposes (mm).
108 108 108
