17.5 To replace the control slide unit.
1. Remove the fascia (See section 17.4).
‘Heritage’ and ‘Opulent’ models.
2. Detach the slide unit by removing two screws
securing the plastic slide mechanism to the rear of
the fascia (See figure 44).
‘Dream’ model.
2. Detach the slide unit by removing two screws
securing the plastic slide mechanism to the hotbox.
3. Replace in the reverse order.
17.6 To replace the control slide button.
1. Remove the fascia (See section 17.4).
2. Remove the control slide unit as in section 17.5
3. Detach the slide button by removing two screws
(See figure 44).
4. Replace in the reverse order.
17.7 To remove the burner unit.
1. Remove the bottom front and fire front castings
and the fascia (See section 17.4).
2. Remove the loose ceramic fuel
effect pieces, the front ceramic fuel
effect and the base ceramic fuel effect.
3. Support the inlet ‘T’ connector to
avoid straining the pipework and
disconnect the appliance from the inlet
‘T’ connector.
4. Detach the burner unit from the
hotbox by removing two screws (See
figure 45).
5. Replace in the reverse order.
Page 42
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE

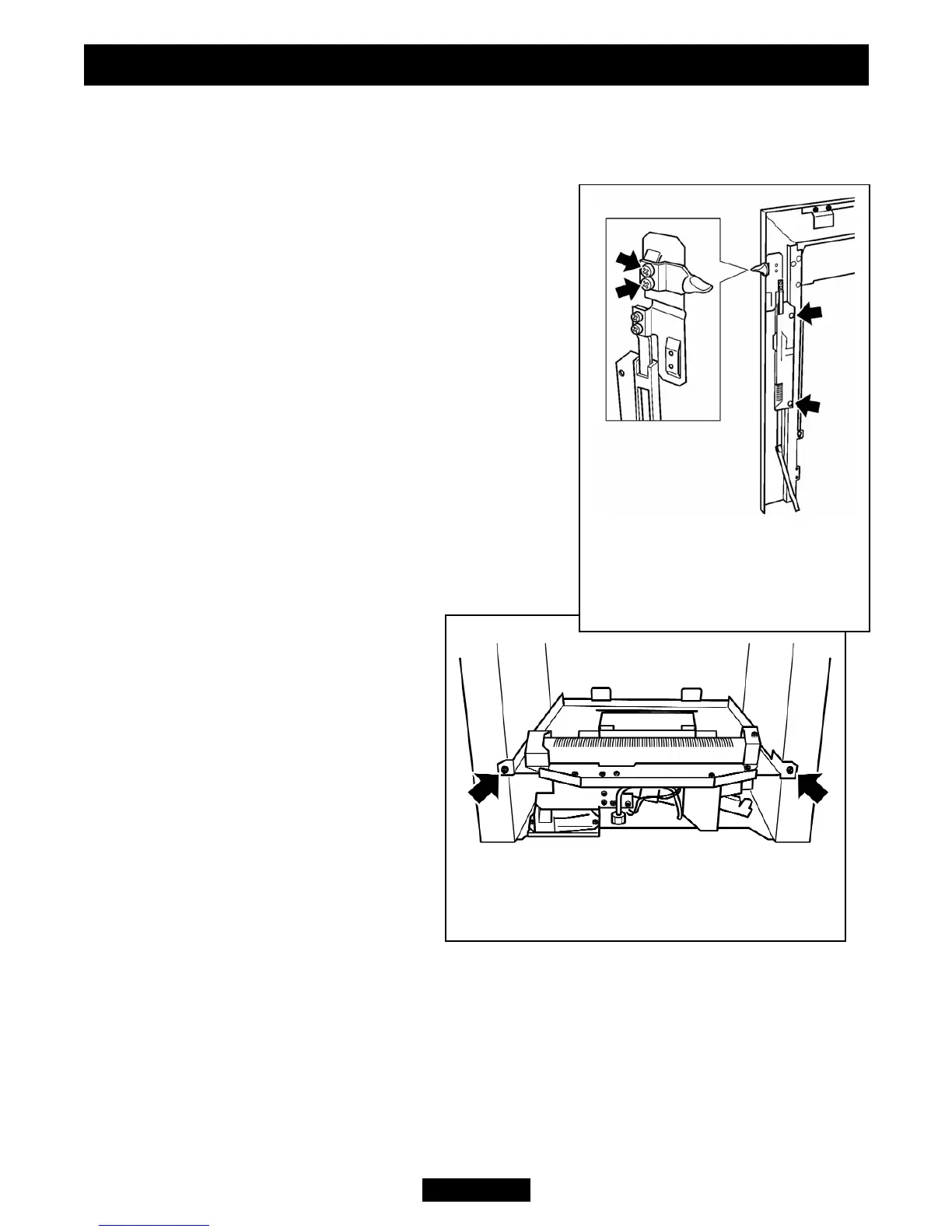

Figure 45. Burner attachment points
(Burner detail may differ from that
shown)
Figure 44. Control slide and
button fixings (The slider
design may differ from that
shown)
