3.10 Installation options.
In the United Kingdom, as supplied, the appliance can be installed in the following
situations: -
3.10.1 Conventional fireplace and hearth.
To a fireplace complete
with surround and
hearth as shown in
figure 4 and complying
with BS1251 after
removal of the fireback
and sufficient material
behind the fireback for a
debris catchment space.
The required fireplace,
hearth, debris
catchment area and
clearance dimensions
are shown in figure 5.
Page 14
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE

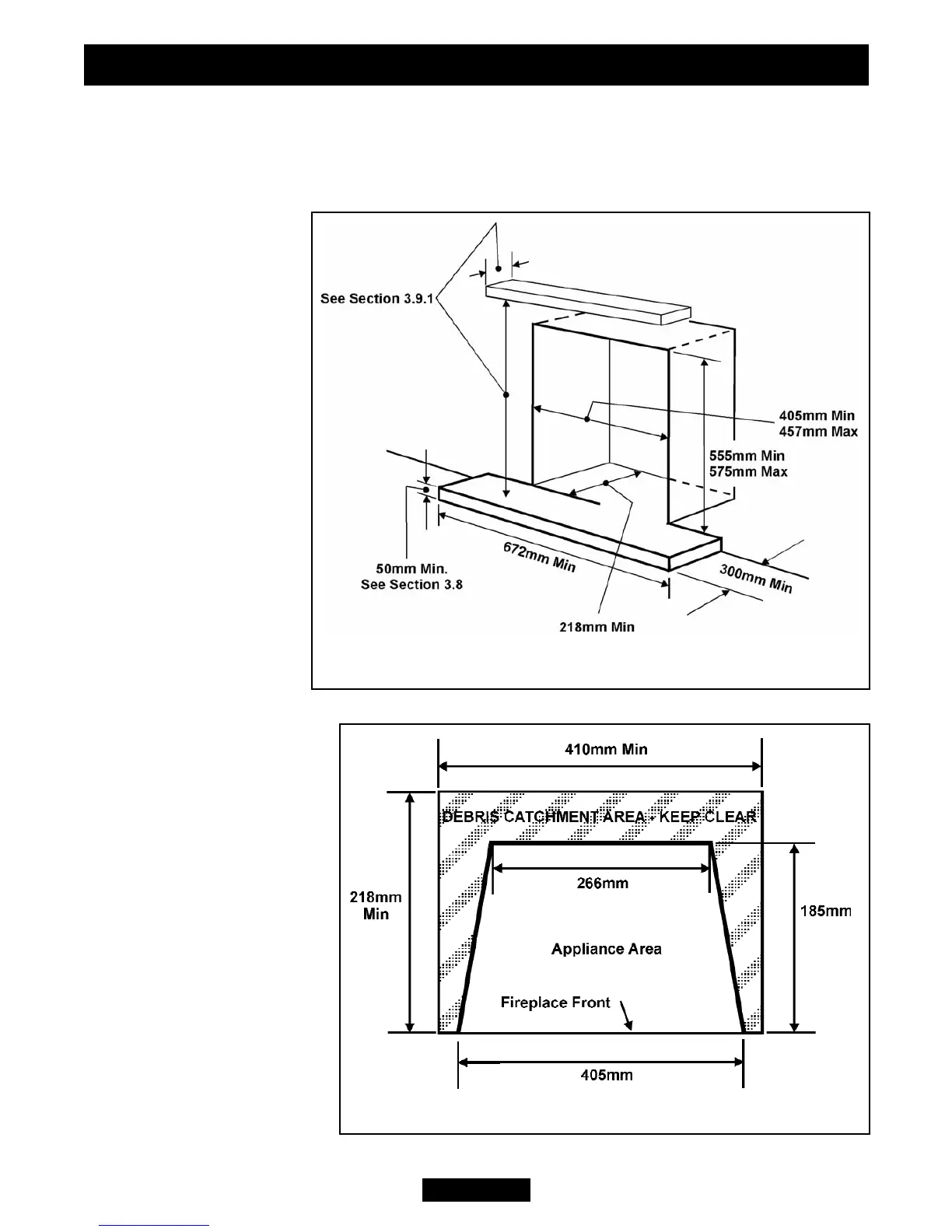

Figure 4. Hearth and fireplace opening dimensions.
Figure 5. Fireplace area.
