4. Align the hole near the bottom of the
control linking bar with that in the control
pivot bracket. Join them with the knurled
shouldered screw (See figure 33). Make
sure that the isolating valve is closed.
Slide the control button fully from top to
bottom and back to make sure that the
slide and pivot mechanisms move
smoothly. Note that some resistance
should be felt when the slide button
reaches the “burner fully on” position.
‘Dream’ model only.
5. Fit the burner baffle to the front
flanges of the burner. To do this, place
the baffle against the front flanges of the
burner and lower into position. The return
edges on the rear of the baffle should
slot over the front flanges of the burner
(See figure 34).
13. FITTING THE CERAMIC FUEL EFFECT
The fitting guide for the ceramic fuel effect is supplied with the ceramic fuel effect. It is
important that the fitting guide for the ceramic fuel effect be placed inside or attached
to this guide and handed to the customer following completion of the ‘final review’
section.
Page 34
© Baxi Heating U.K. Limited 2009.
INSTALLER GUIDE
Figure 34. Fitting the burner baffle
(Dream model only)

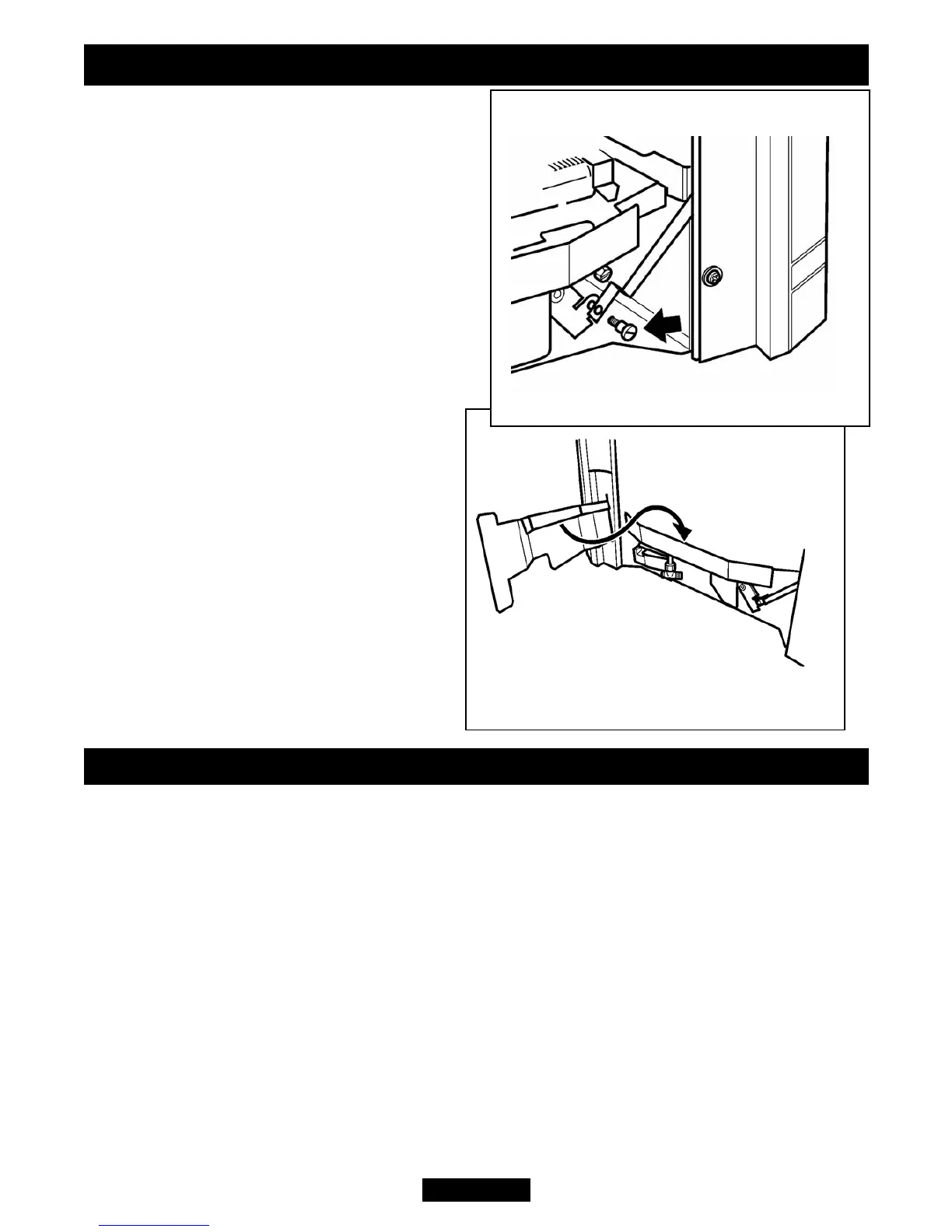

Figure 33. Control and pivot bracket
