make sure that they are secured firmly to give a
good electrical contact.
17.4 To remove the fascia.
1. Remove the bottom front cover. On the ‘Dream’
and ‘Heritage’ models remove the fire front casting.
2. ‘Heritage’ and ‘Opulent’ models only.
Detach the control-linking bar from the control
pivot bracket by removing the knurled screw,
which joins the control linking bar to the control
pivot unit (See figure 41).
3. Remove the two screws and washers securing
the bottom of the fascia to the sides of the hotbox
(See figure 42).
4. Carefully lift the fascia unit upward to clear the
upper retaining brackets on the hotbox (See
figure 43). Pull the fascia clear and place
carefully aside.
5. Refit in the reverse order. Make sure that the
fascia is properly located over the upper retaining
brackets (See section 12 of this manual for
detailed fitting instructions).
Page 41
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2009.

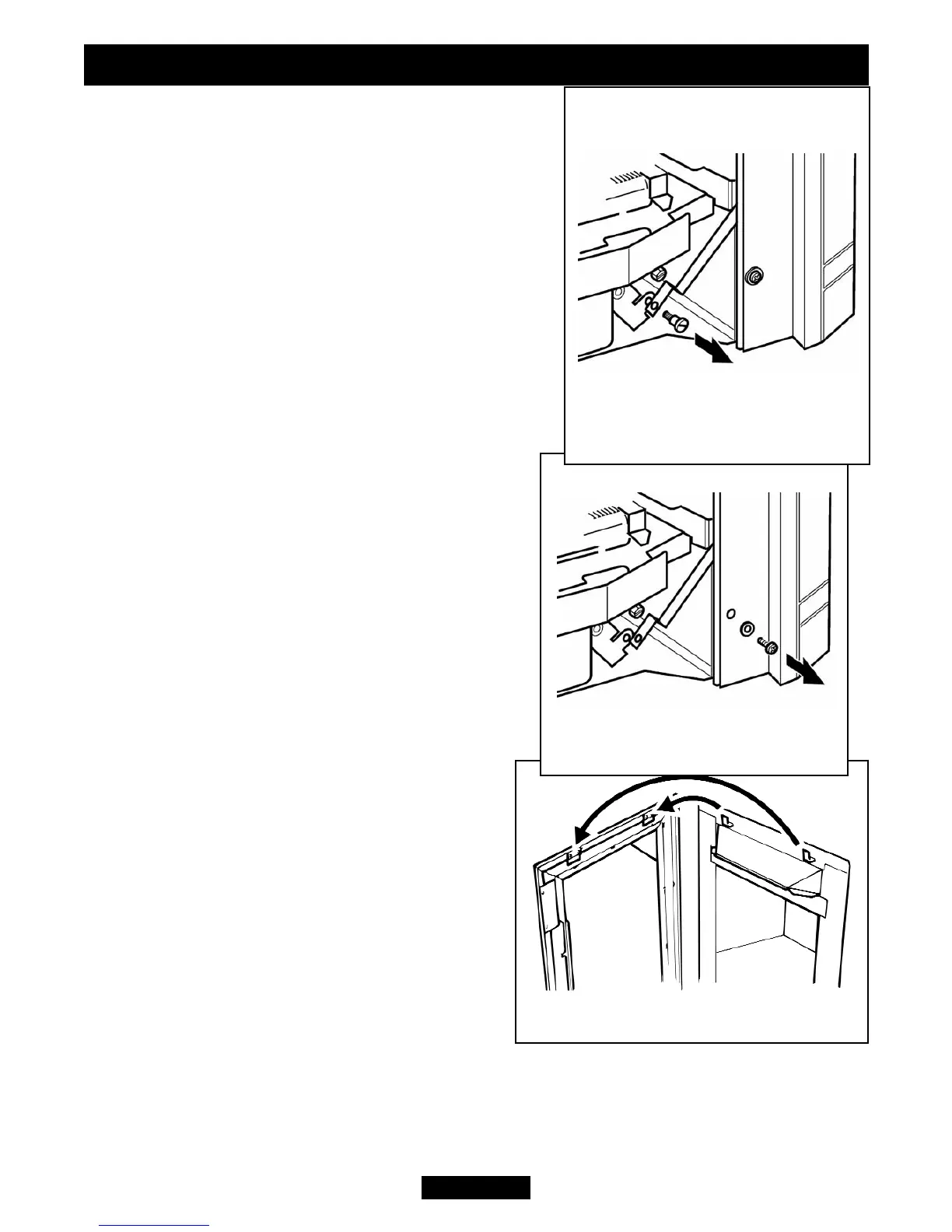

Figure 43. Fascia top location
Figure 42. Fascia bottom
location
Figure 41. Control linkage
disconnection (Shown with
‘Dream’ fascia)
